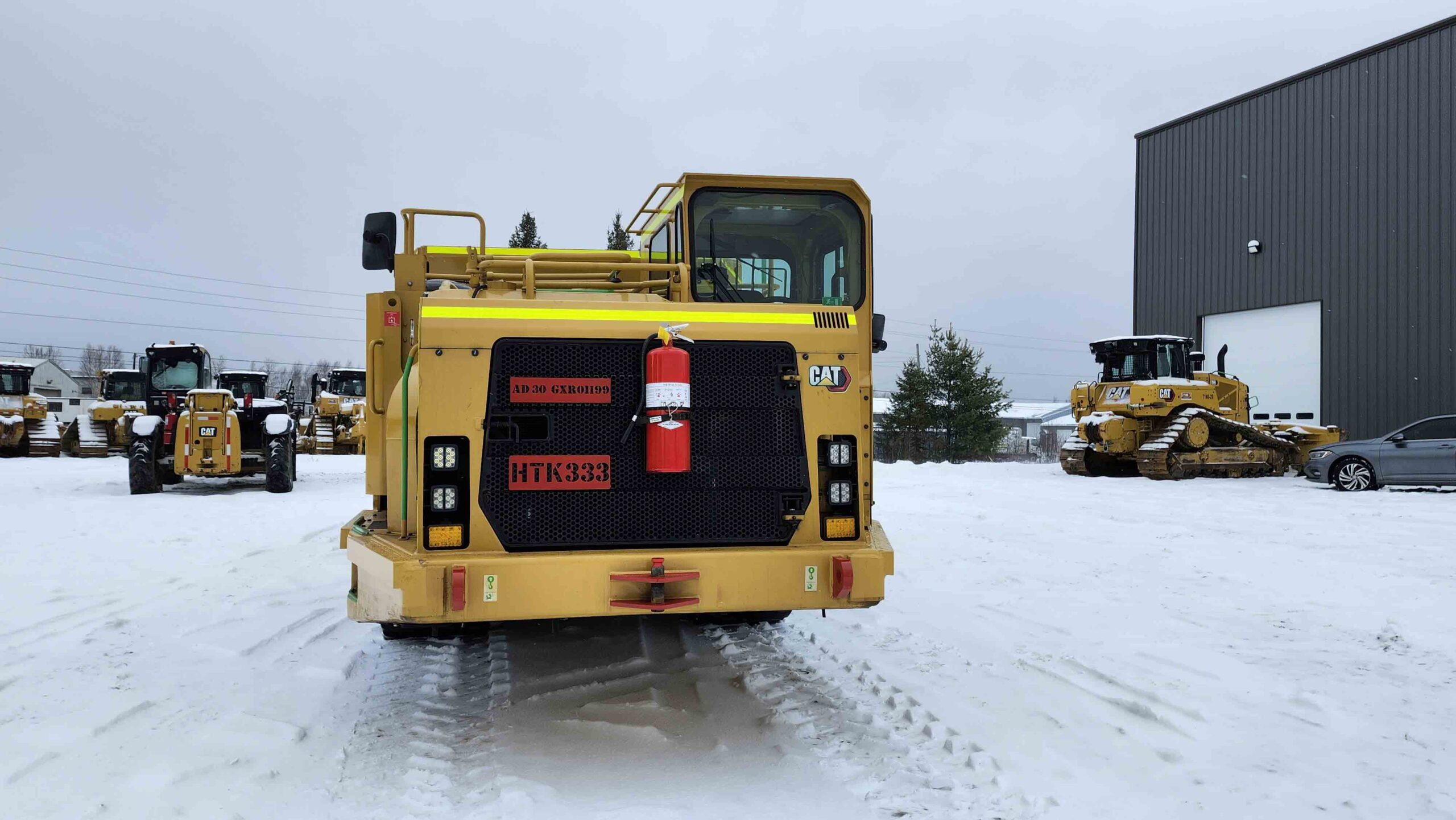

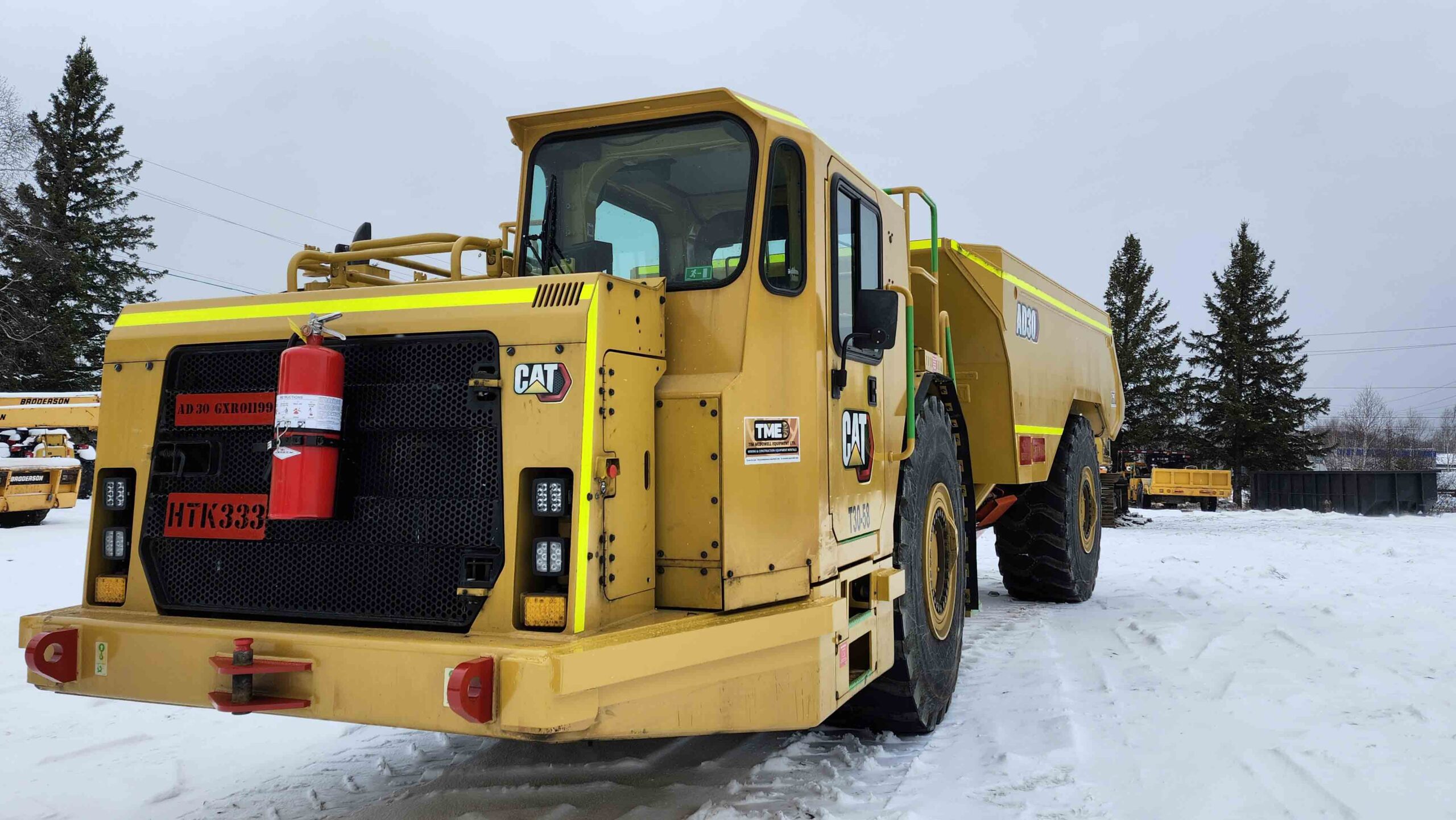

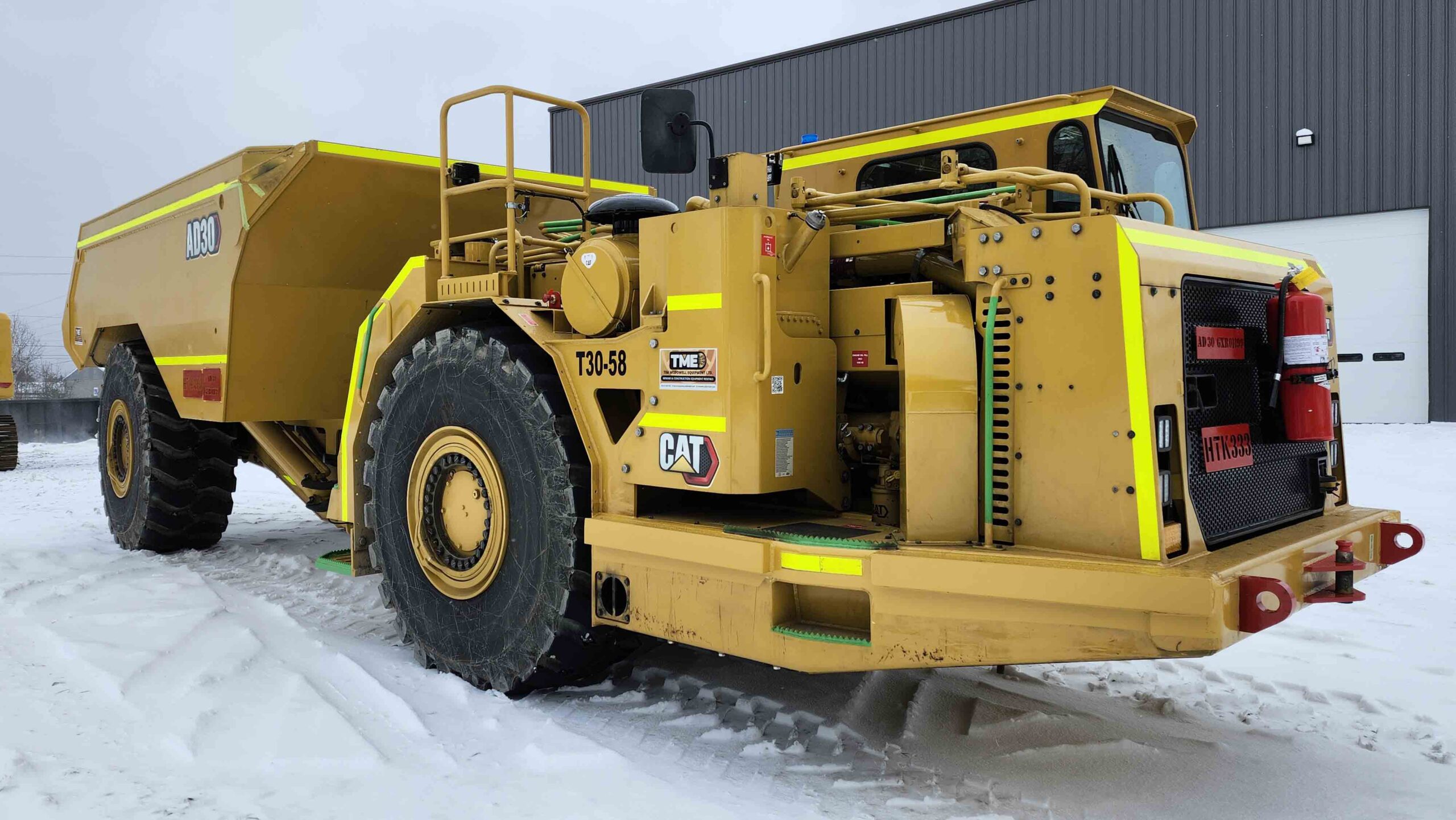

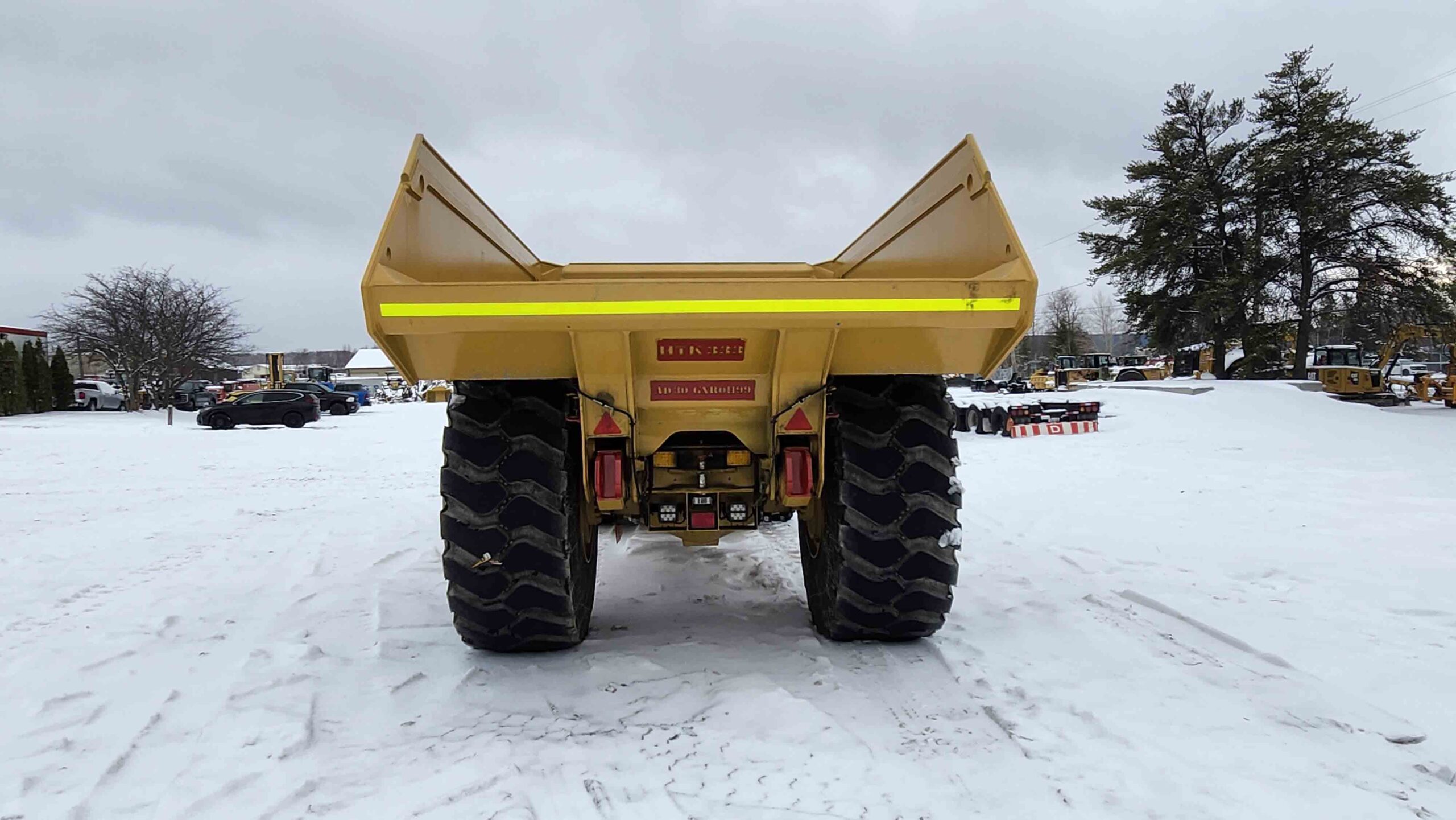

2026 CAT AD30 Truck
rented
- 2026 CAT AD30 Truck
- Stock #: T30-58
- Serial #: GXR01199
- Approximate Hours: 10
- Make: CAT
- Model: AD30
- Year: 2026
- Engine: Cat® C15
- Power: 401 hp (Tier 3 / Stage IIIA)
- Bore / Stroke: 5.4 in / 6.8 in
- Displacement: 928 in³
- Nominal Payload: 66,139 lb (30.0 tons)
- Gross Machine Mass: 132,300 lb
- Body Capacities: 14.8–22.9 yd³ (standard and wide bodies; ejector bodies 19.9–21.9 yd³)
- Body Hoist Cycle: Raise 10.5 s / Lower 11.2 s / Total 21.7 s
- Empty Weight: 63,647 lb
- Loaded Weight: 132,277 lb
- Weight Distribution (Empty): Front 67.5% / Rear 32.5%
- Weight Distribution (Loaded): Front 44.2% / Rear 55.8%
- Turning Dimensions: Outside Clearance 337.4 in / Inner Clearance 198 in
- Articulation Angle: 42.5°
- Frame Oscillation: 10°
- Transmission: 4-speed forward / 1-speed reverse planetary power shift
- Max Speeds: Forward 1–4: 3.9 / 7 / 12.9 / 22.8 mph | Reverse 1: 4.4 mph
- Final Drives: Total Reduction Ratio 16.13:1, Fully Floating Axles
- Tires: 26.5R25
- Service Capacities: Engine Crankcase 9 gal | Transmission 18 gal | Hydraulic 38 gal | Cooling 20 gal | Front / Rear Differential & Final Drives 15 gal each | Fuel Tank 108 gal

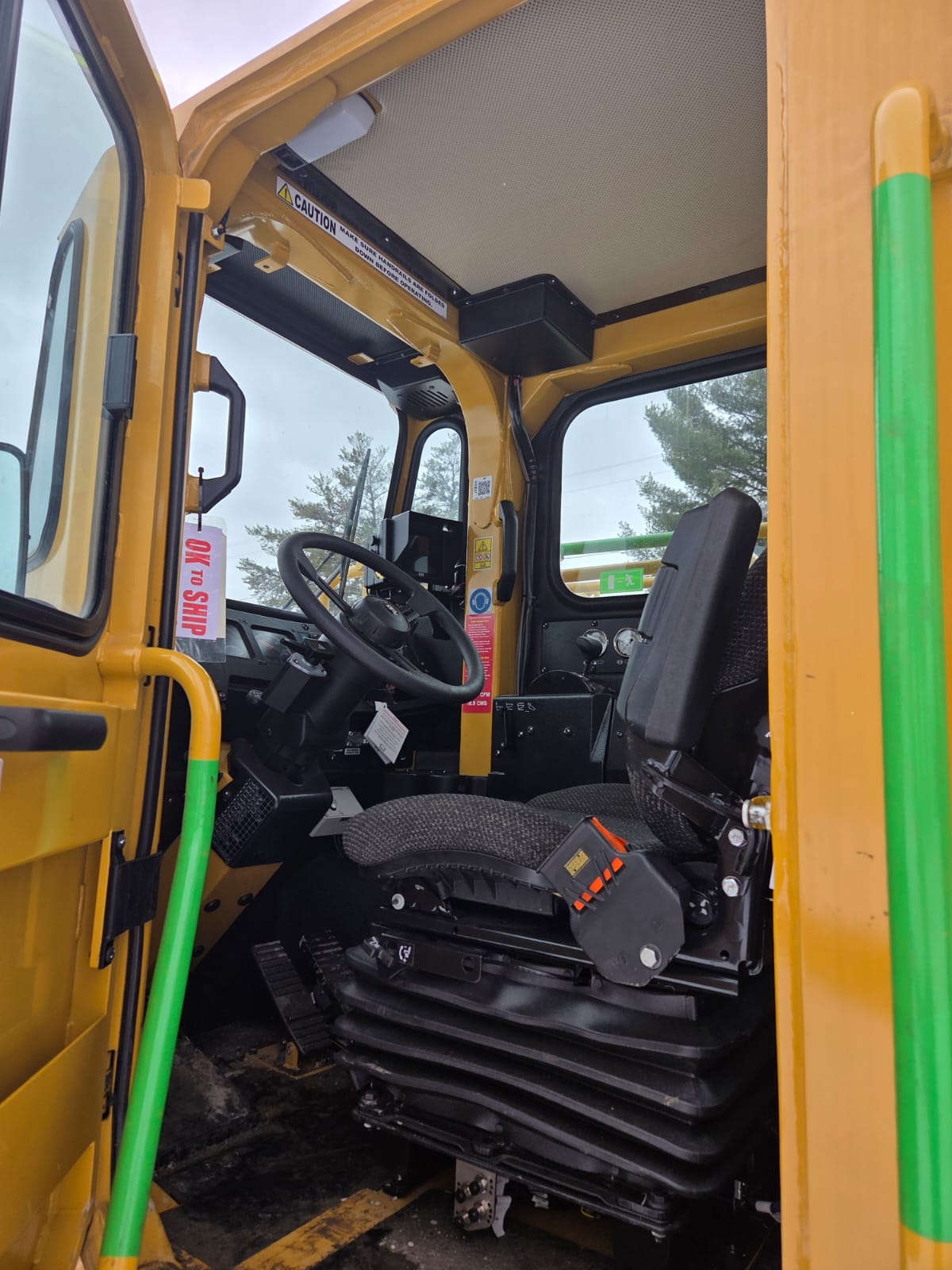

- Standards: ROPS/FOPS Certified Cab
