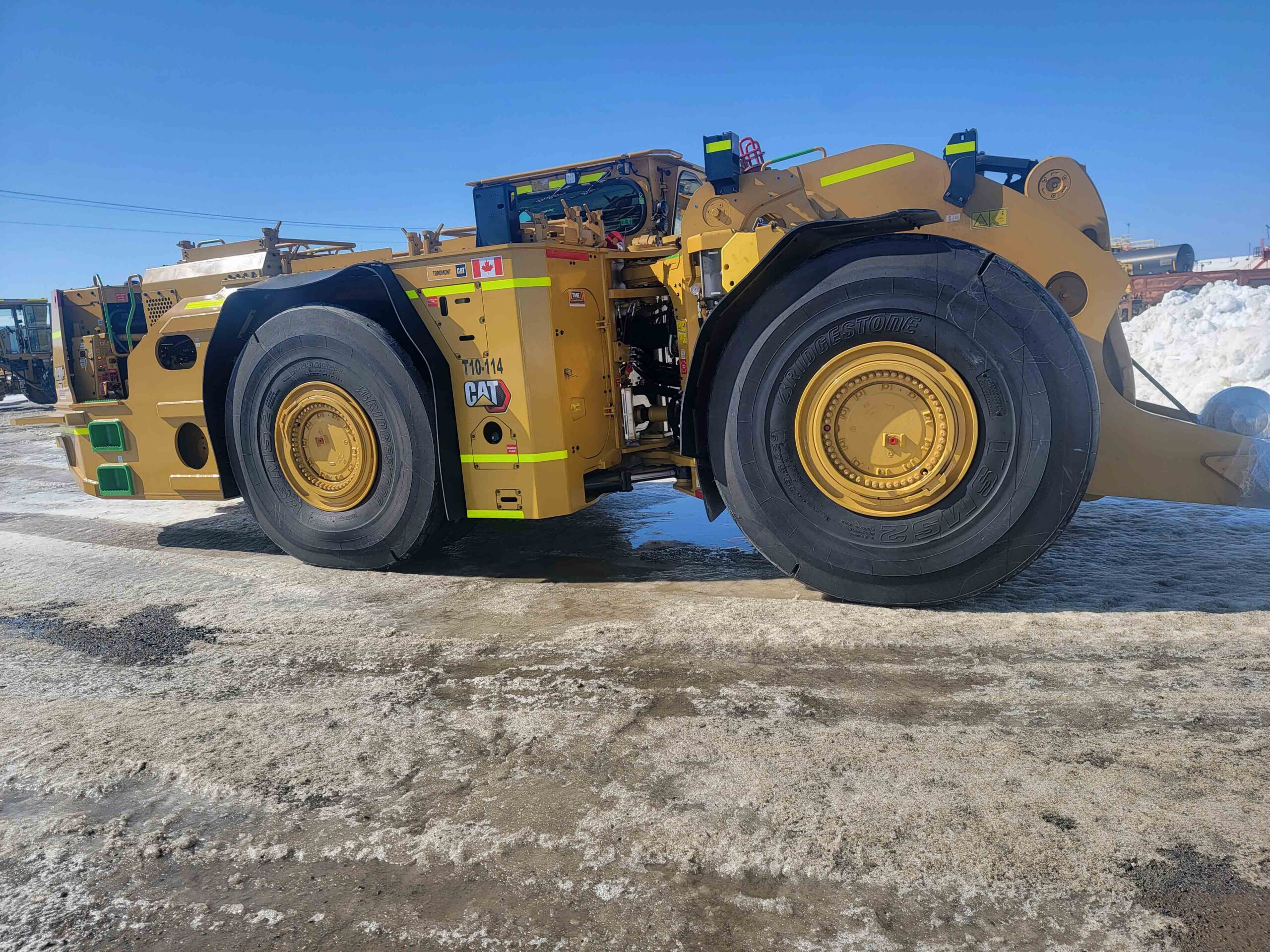

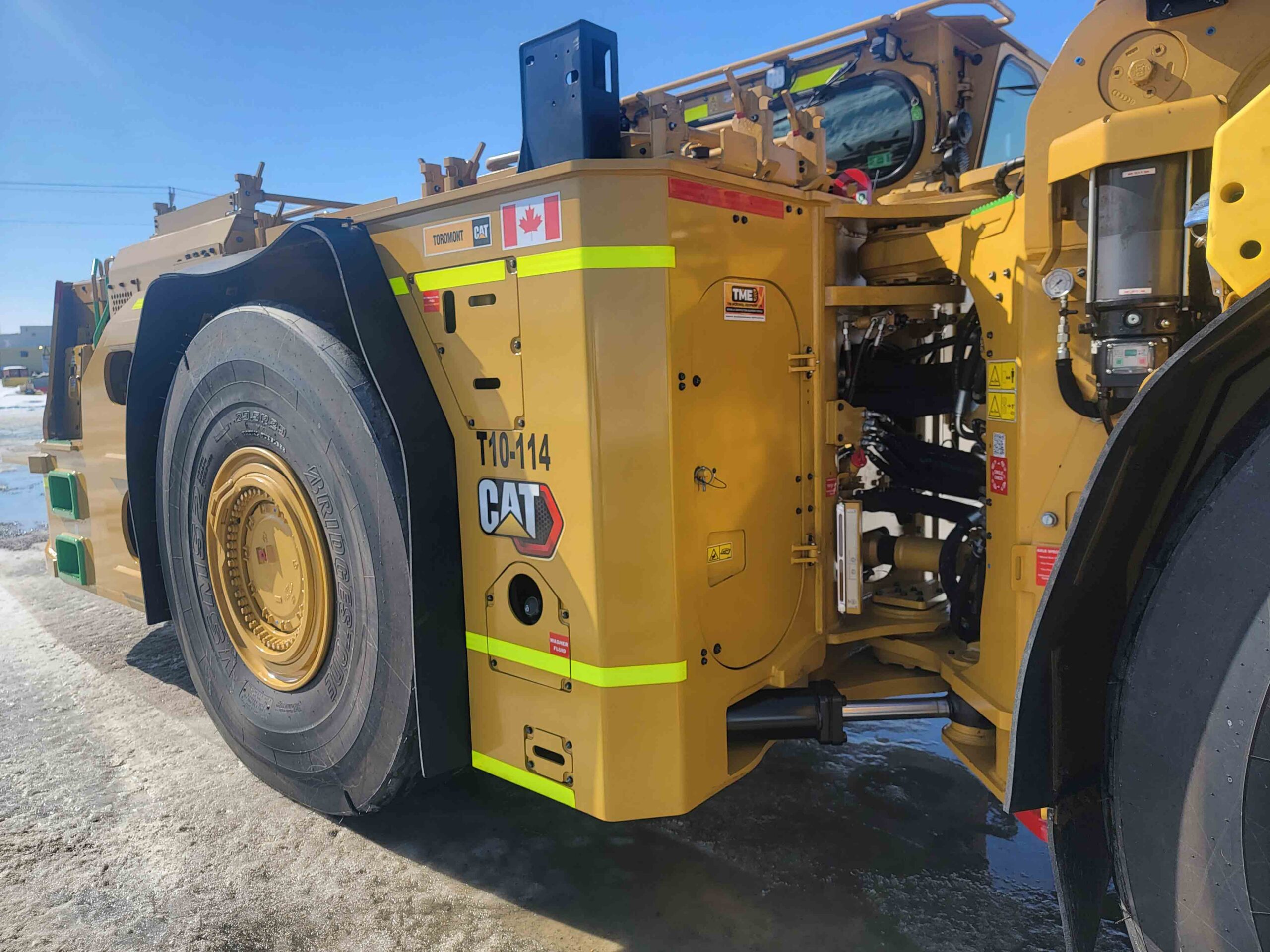

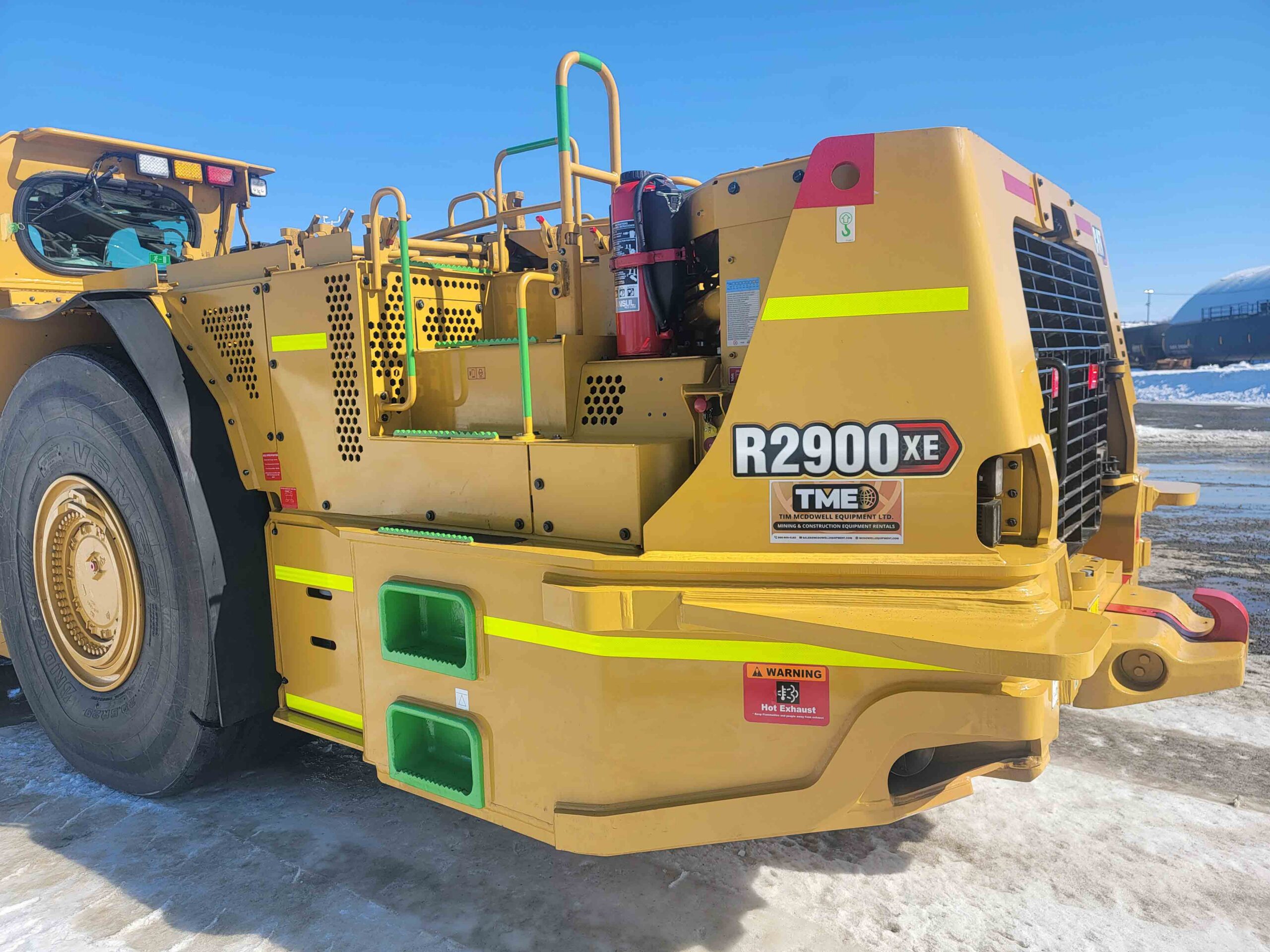

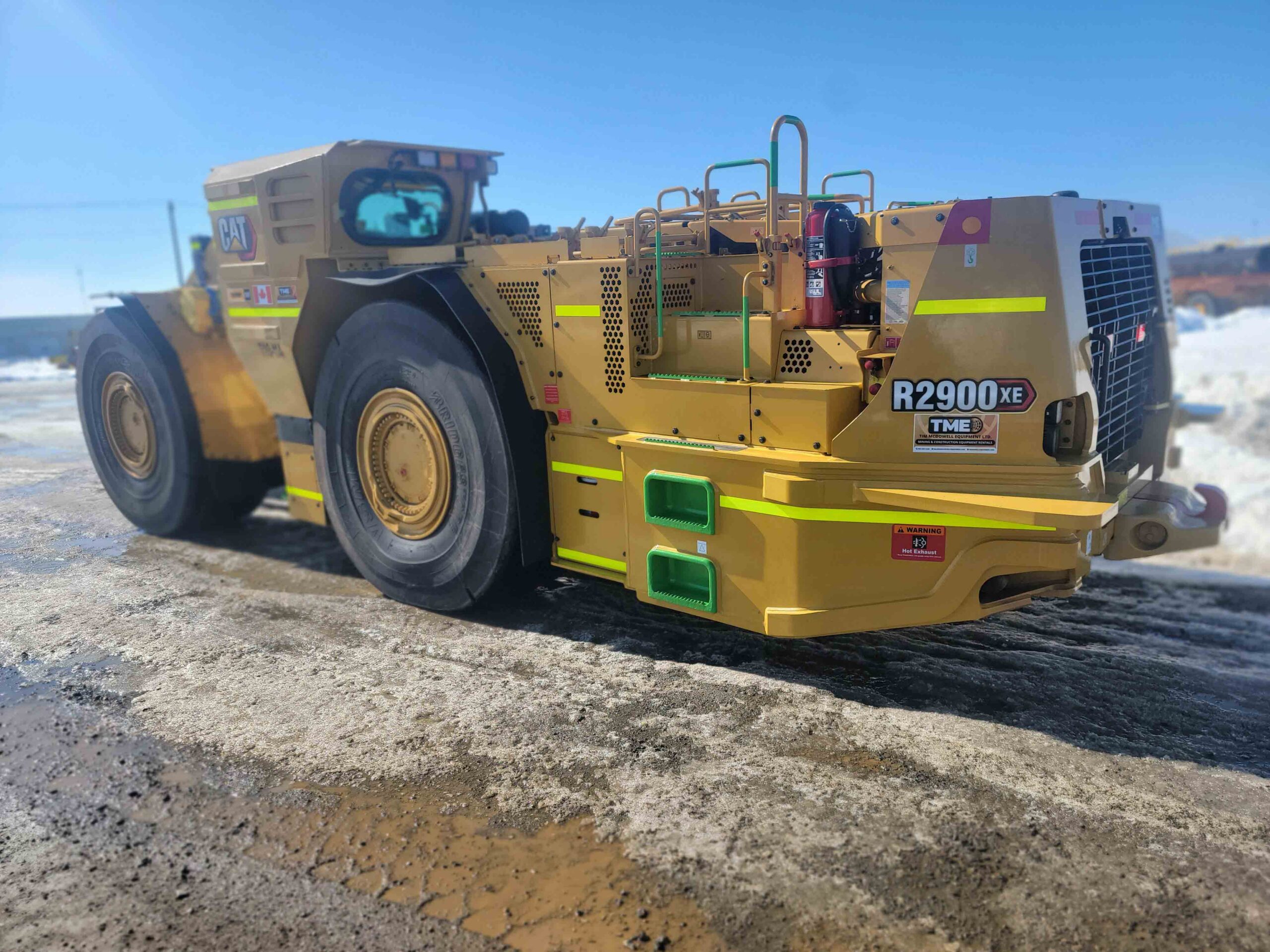

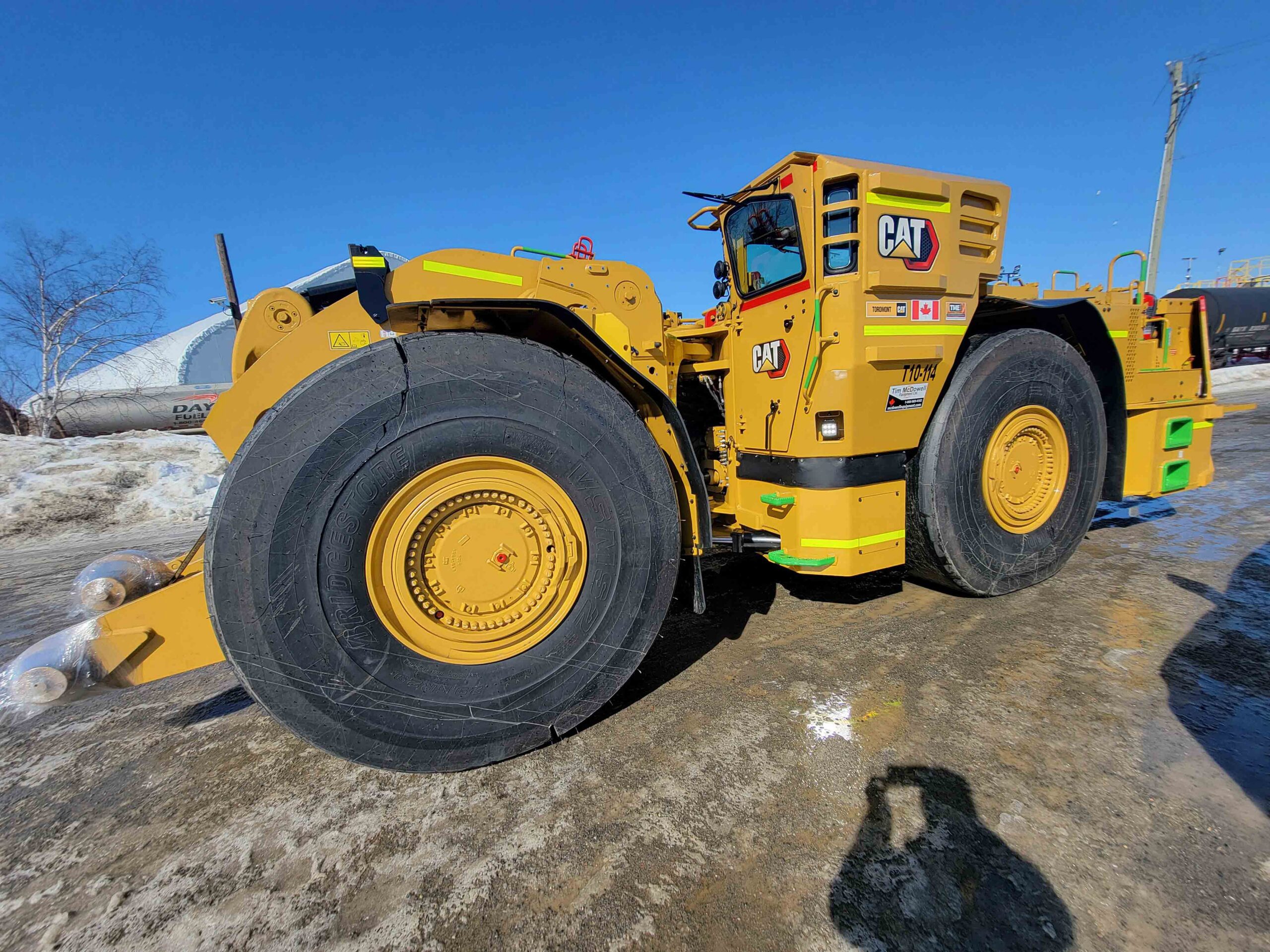

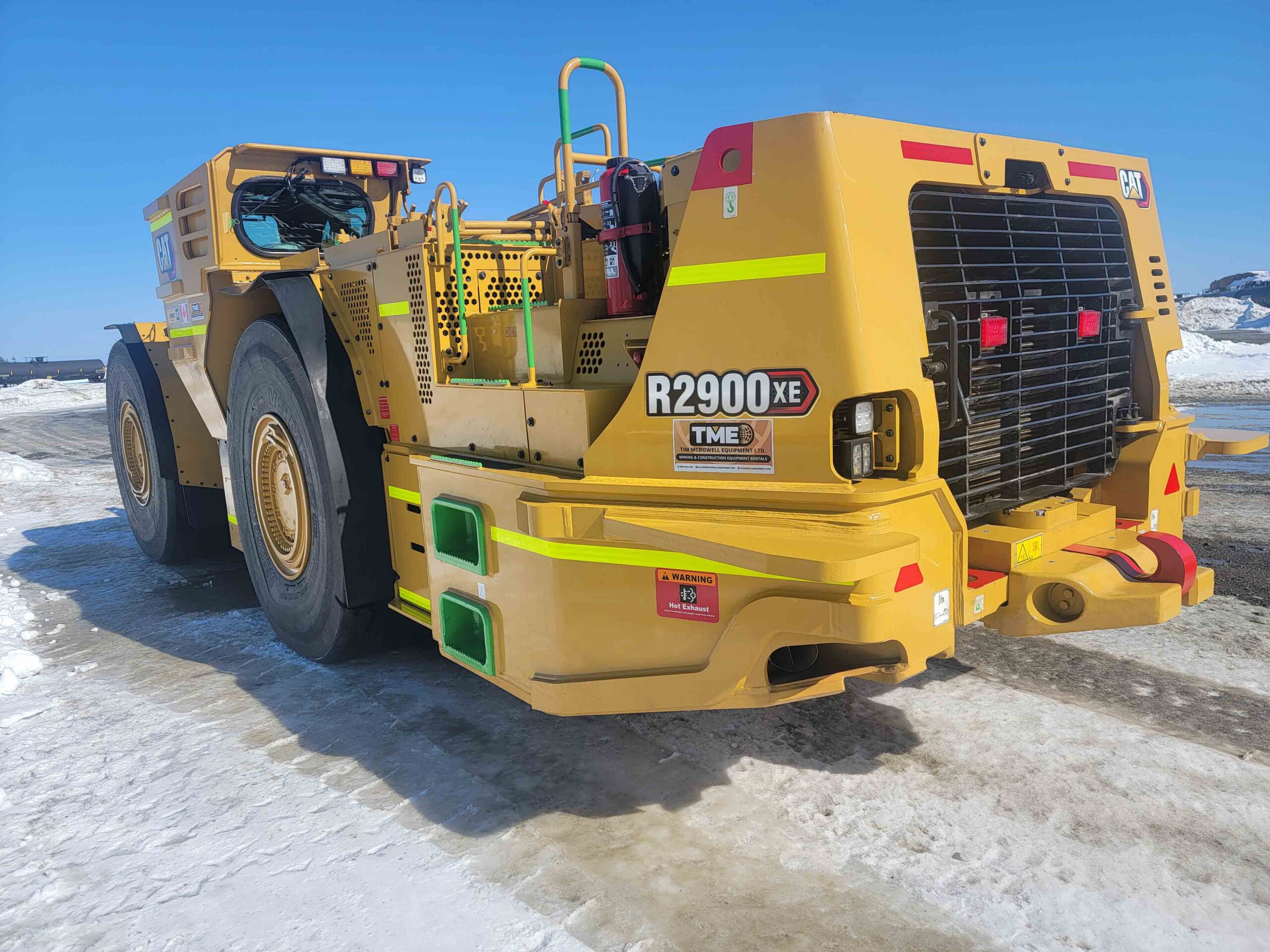

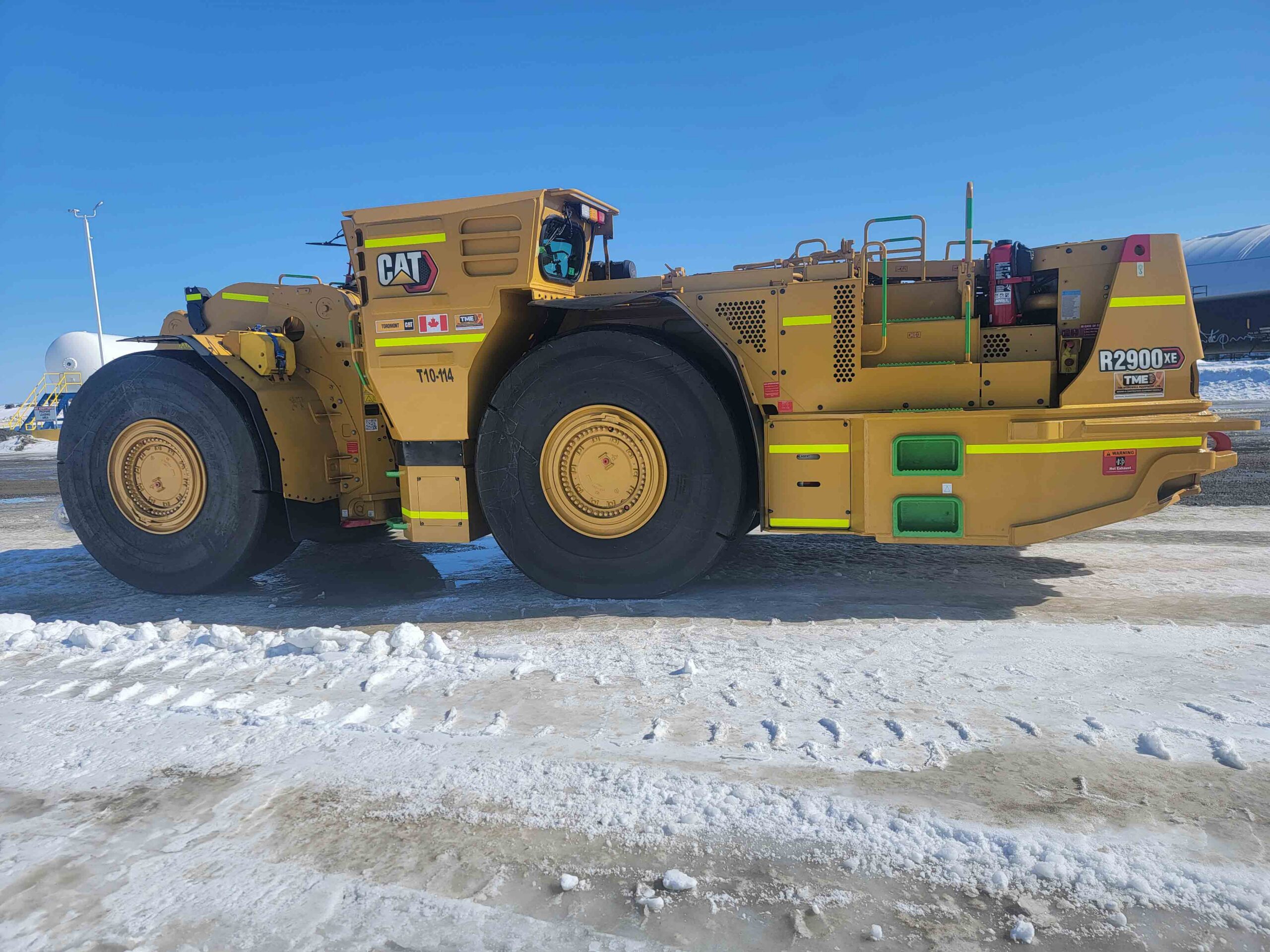

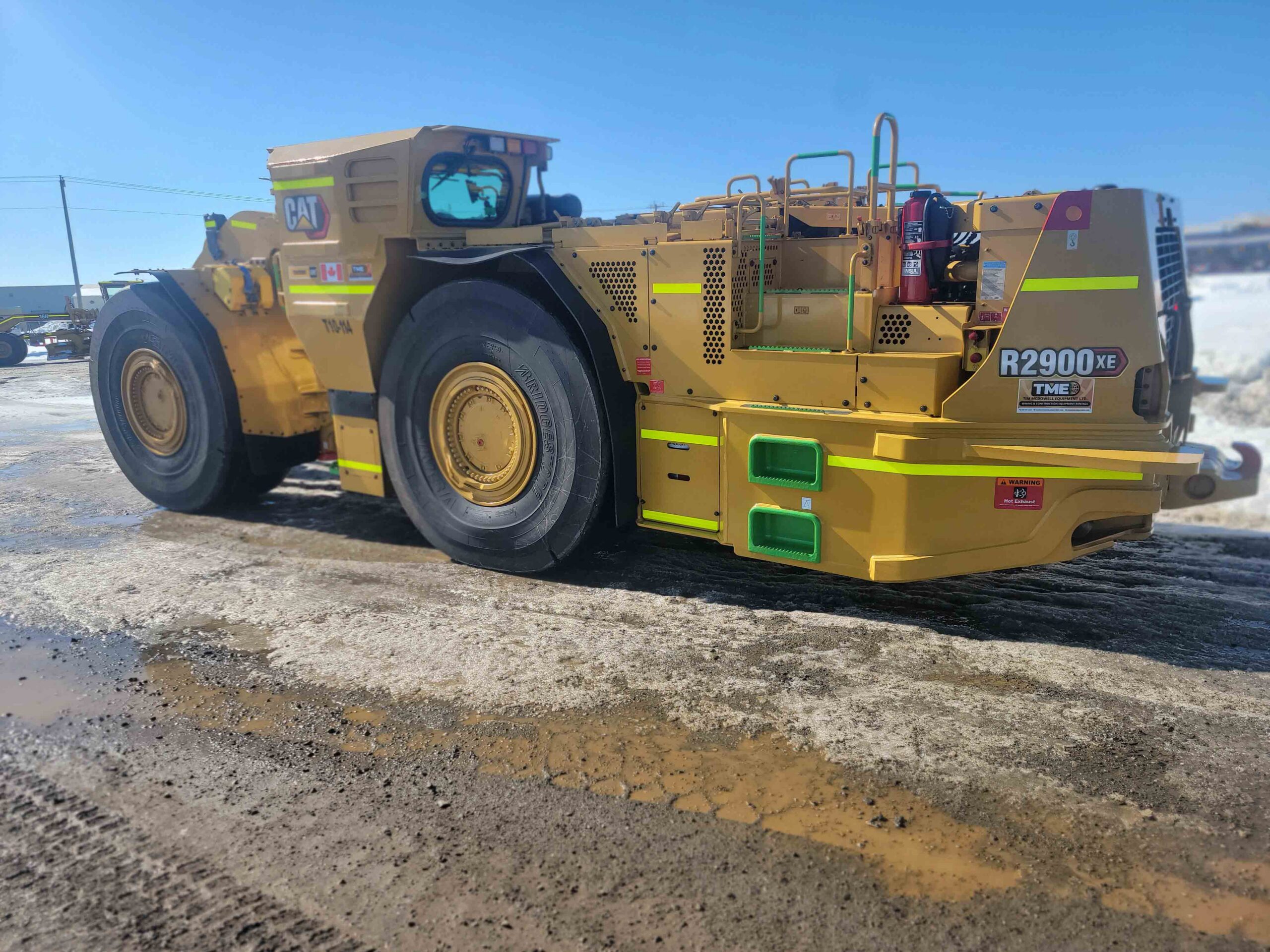

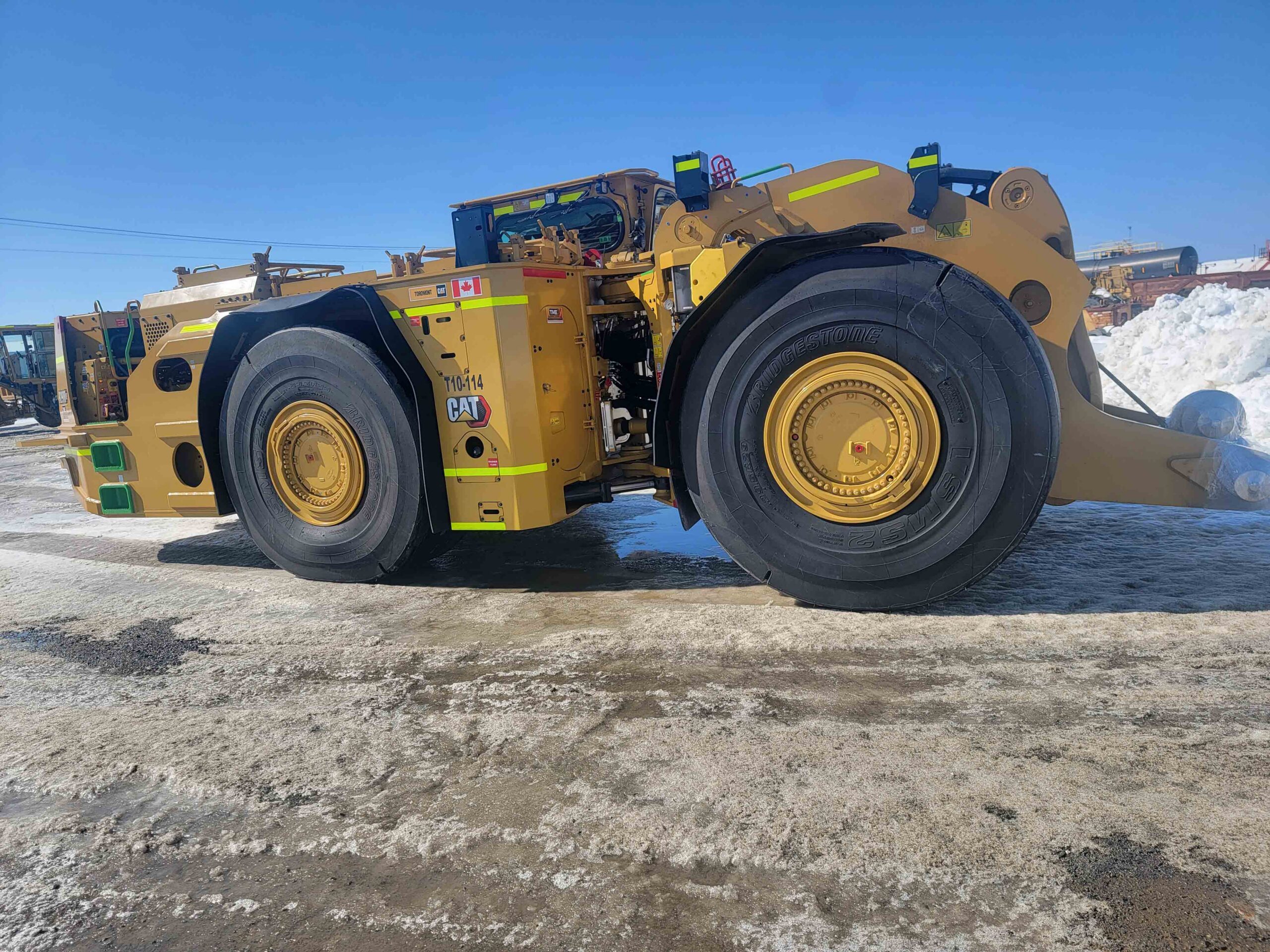

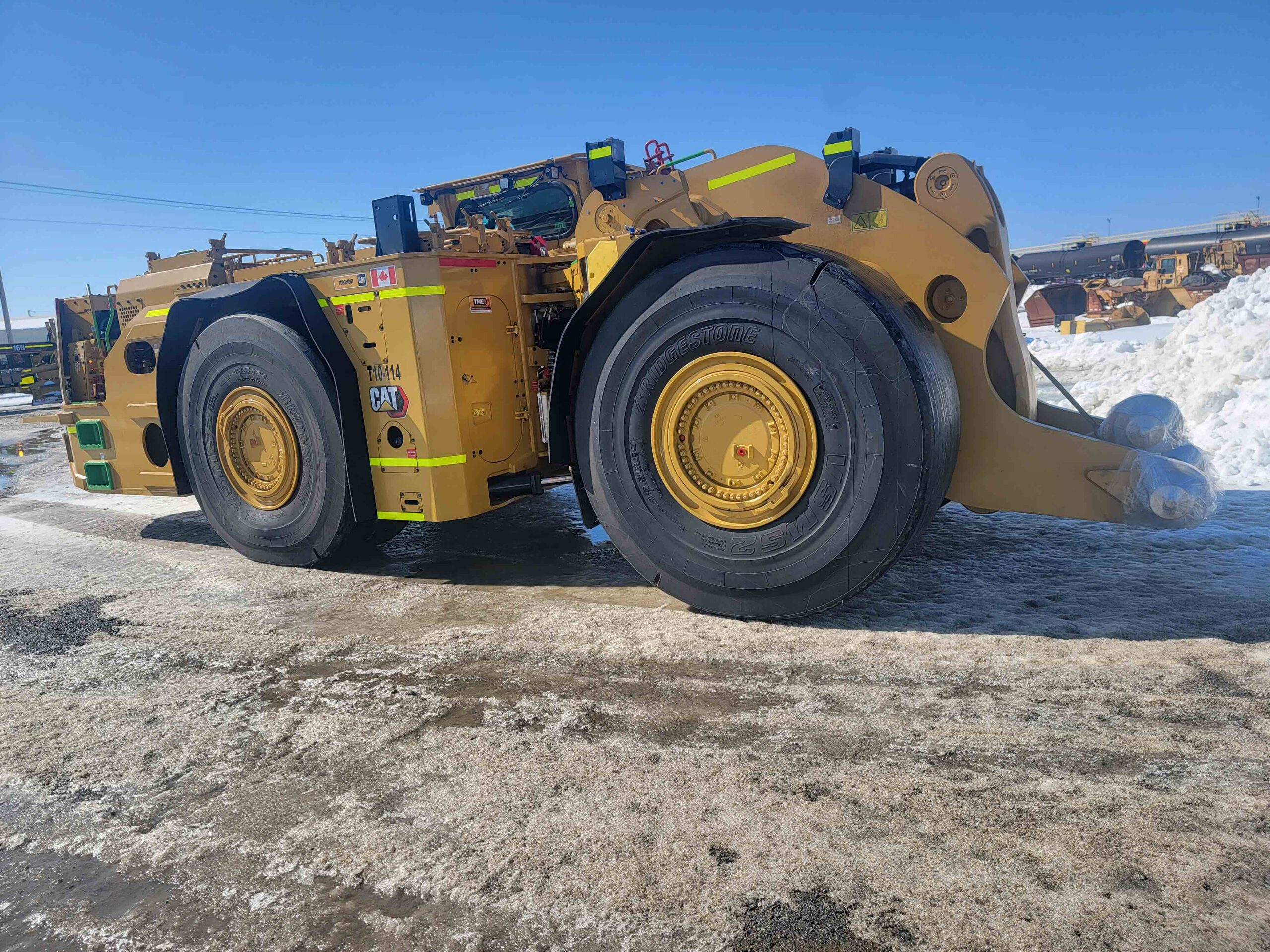

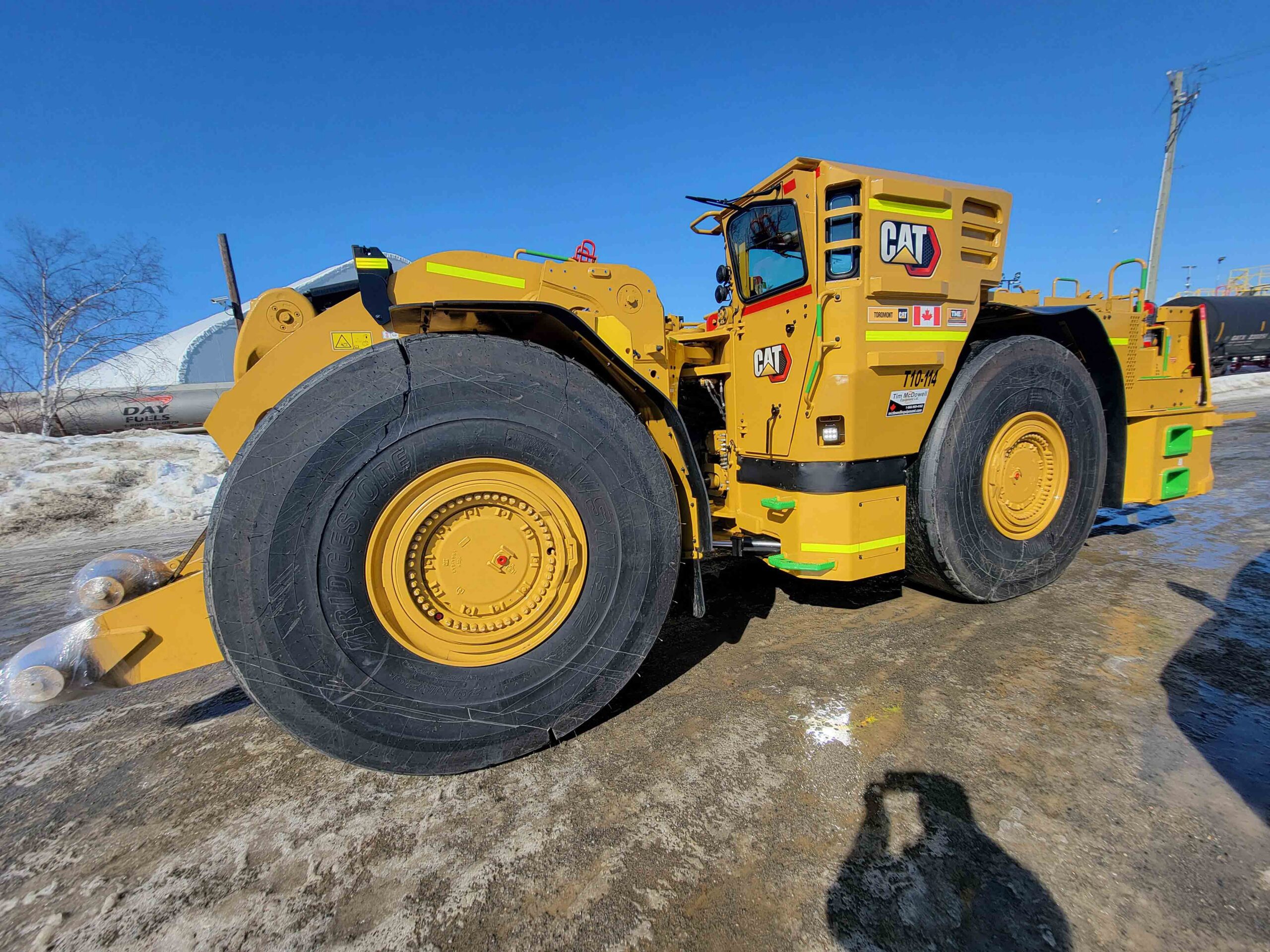

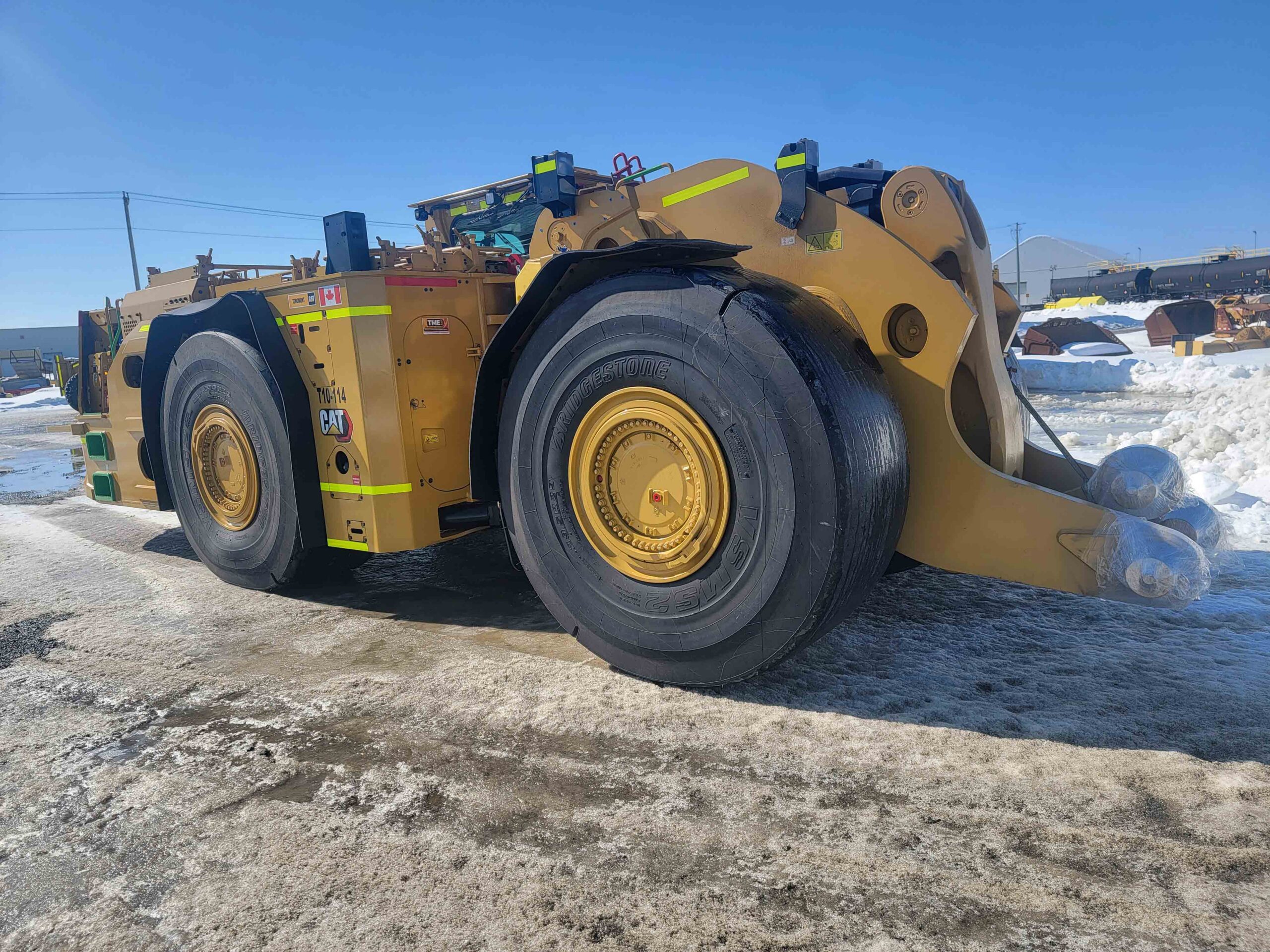

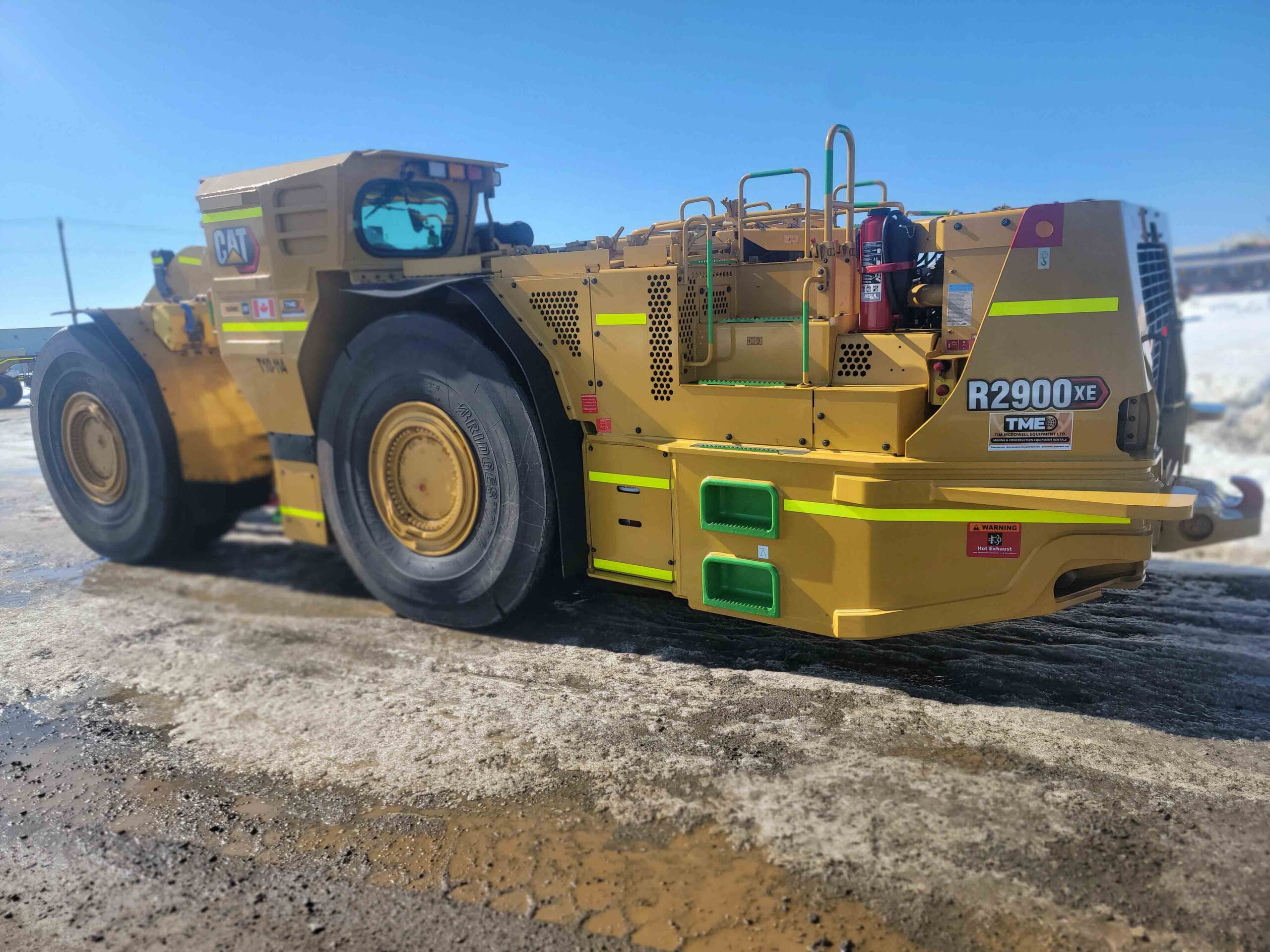

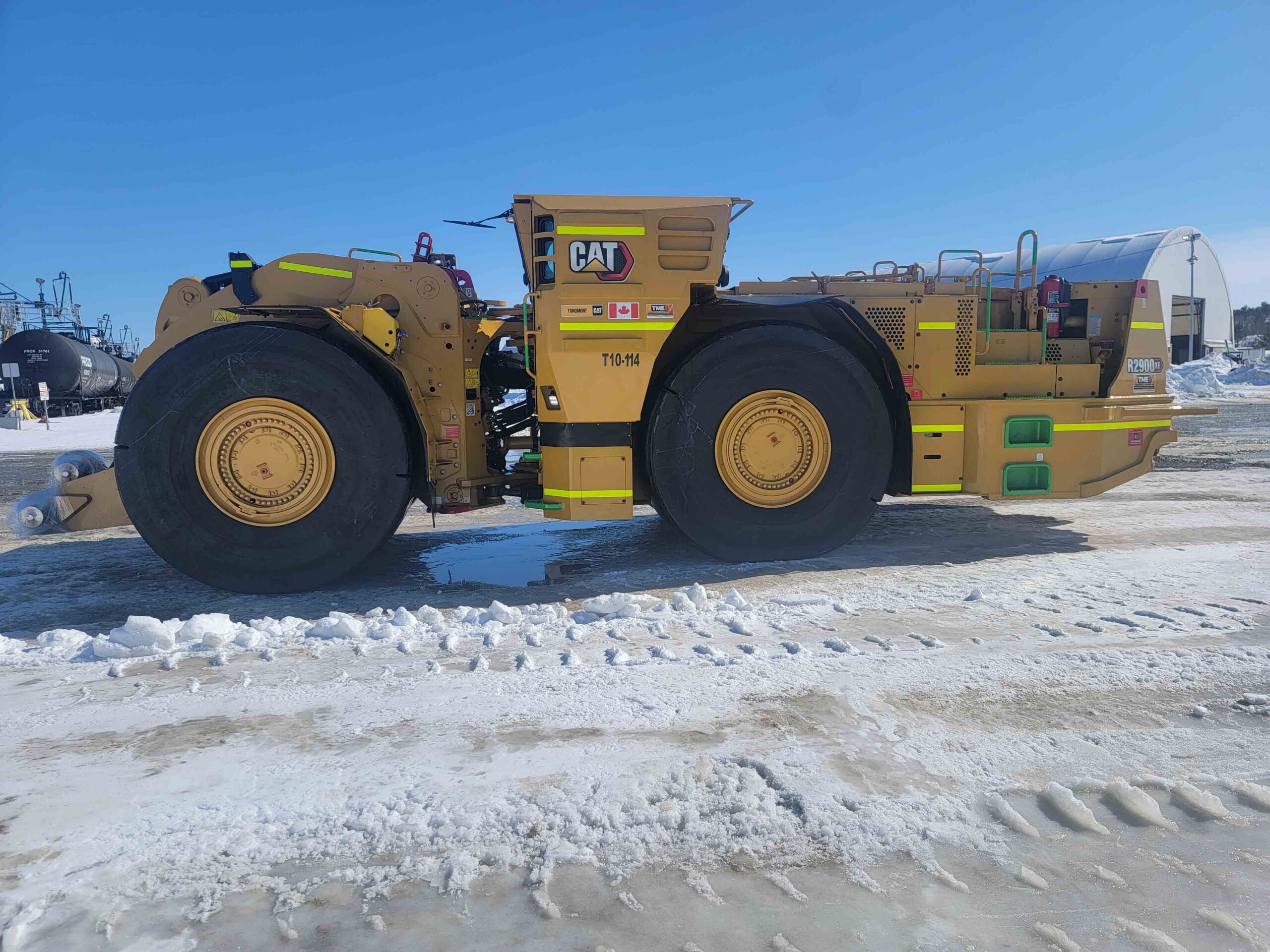

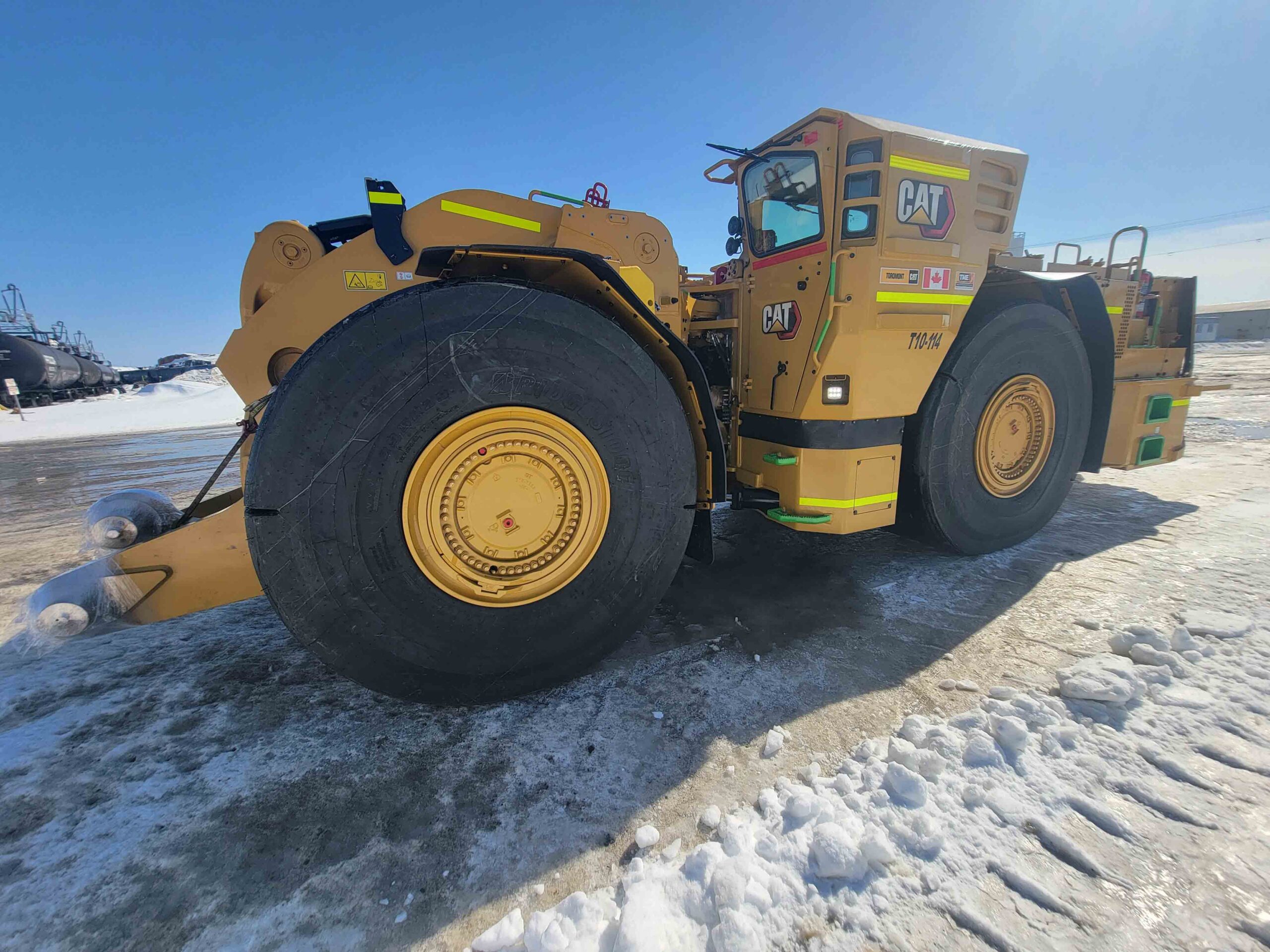

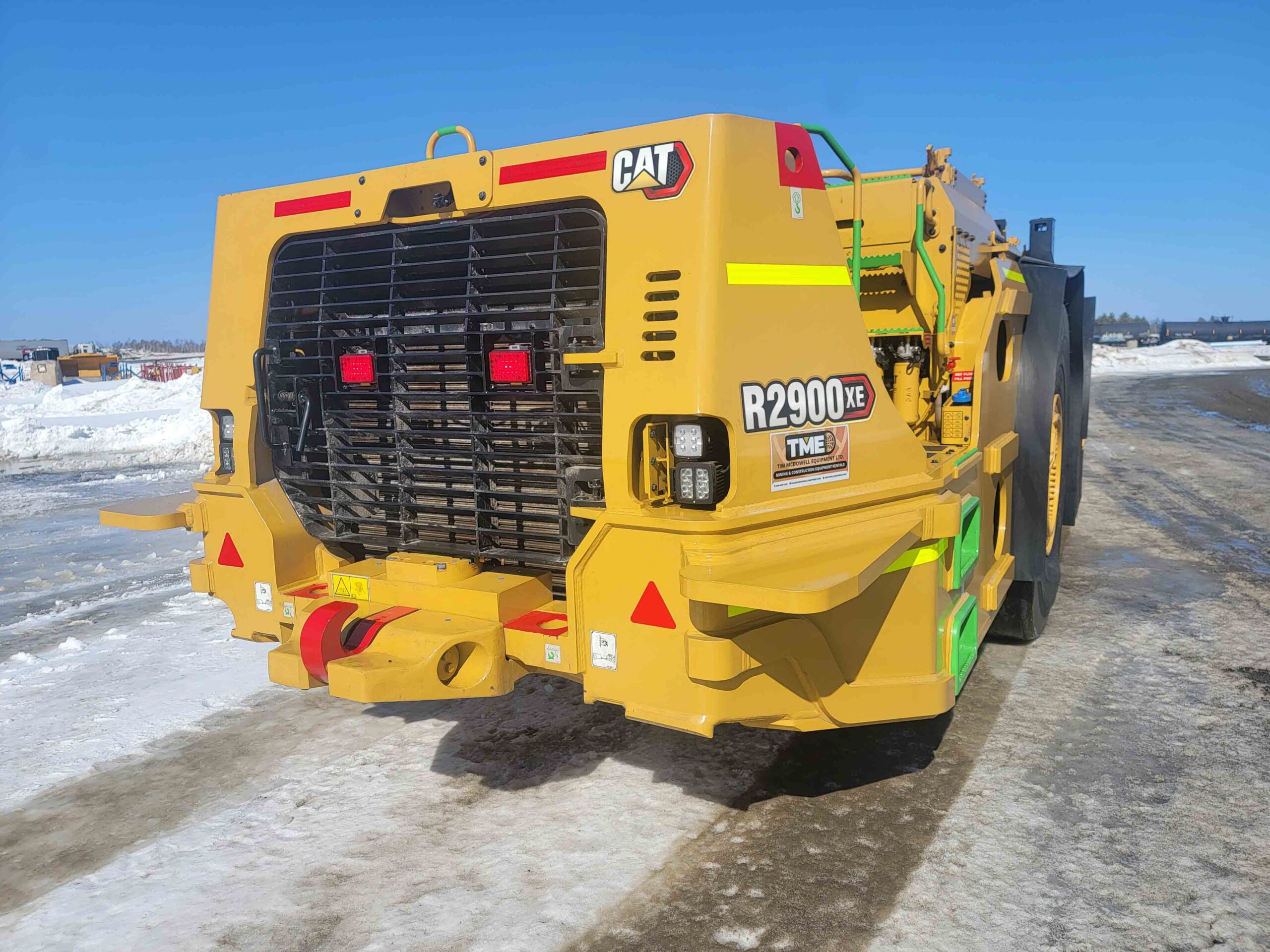

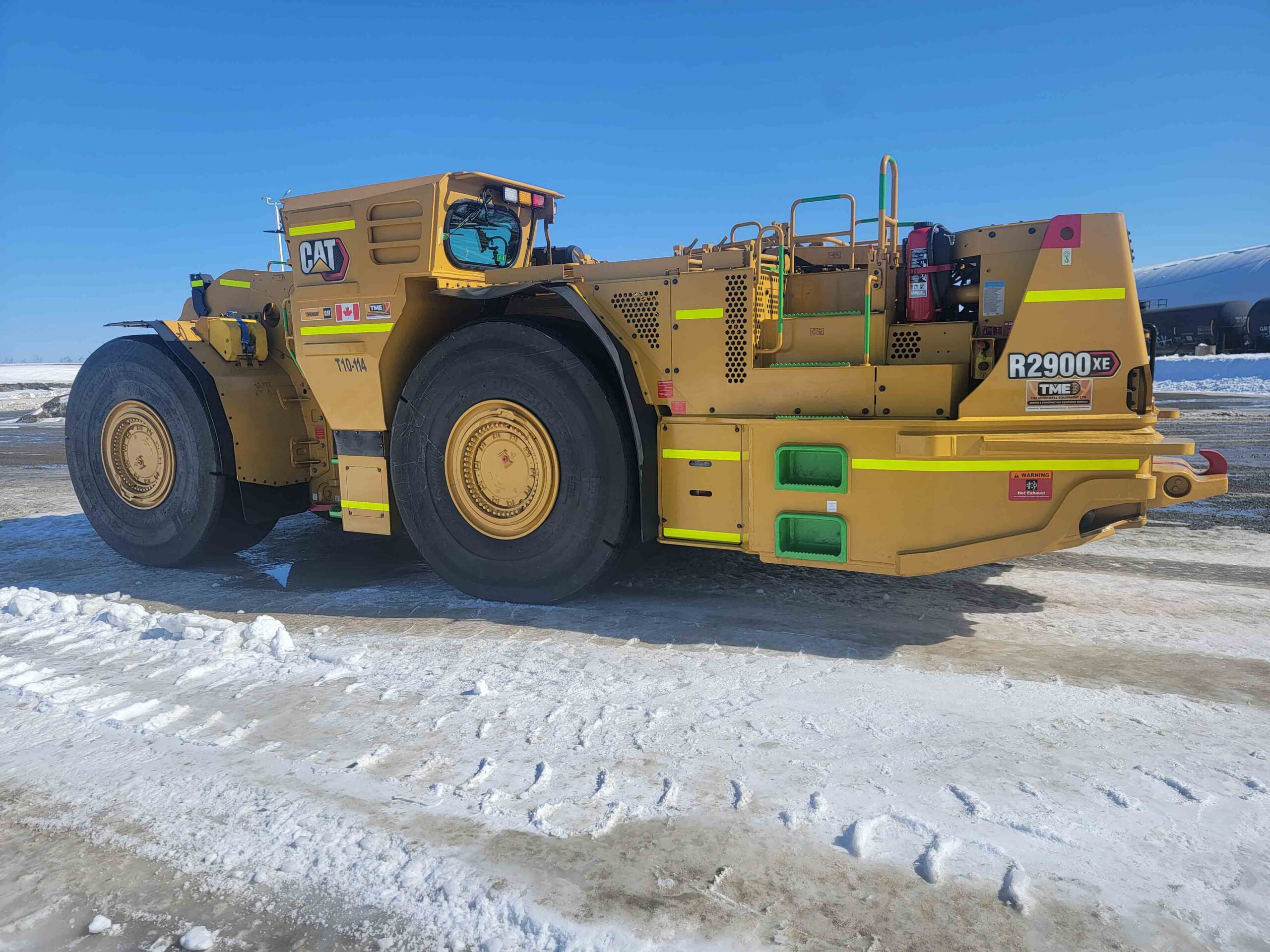

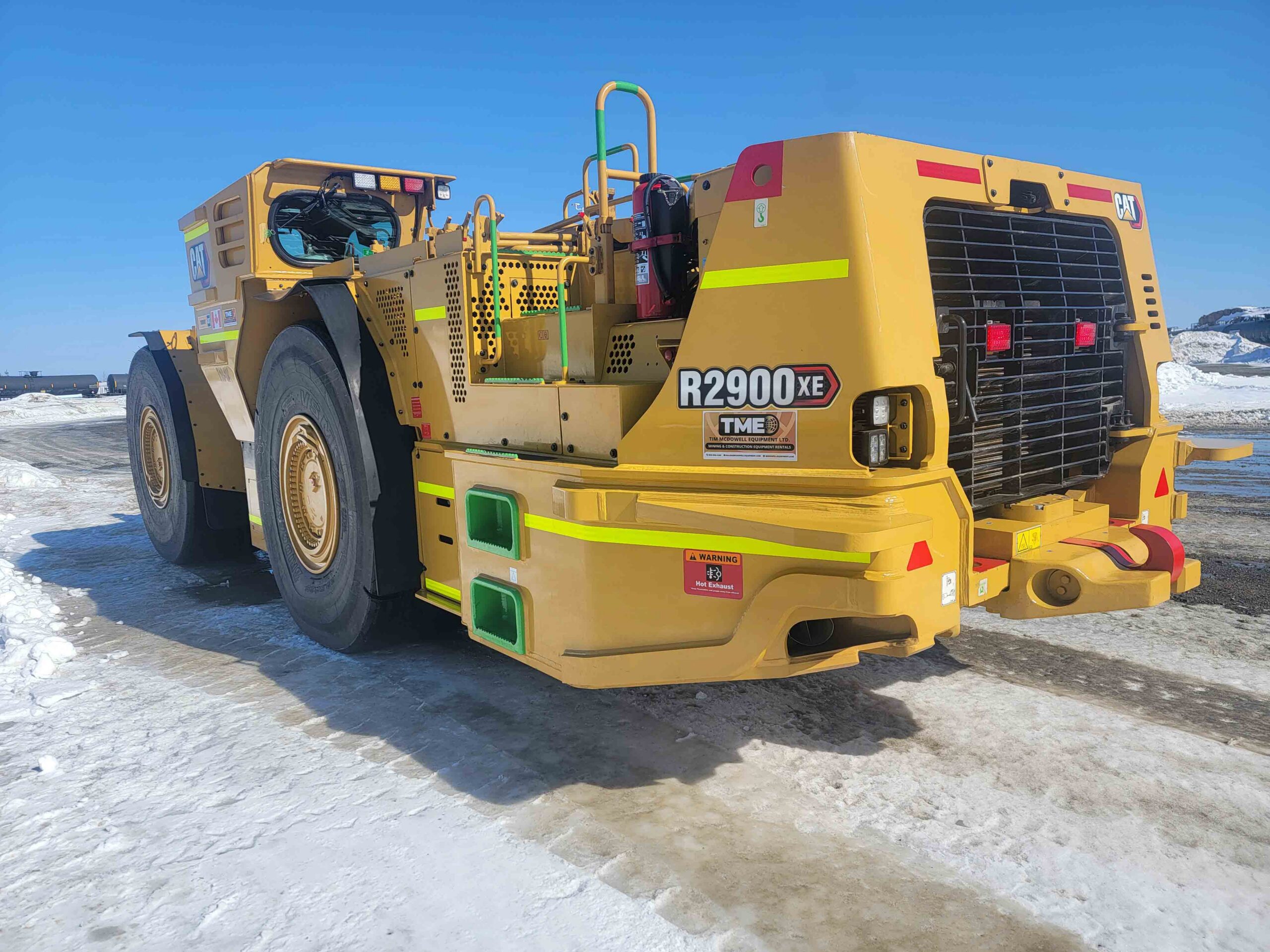

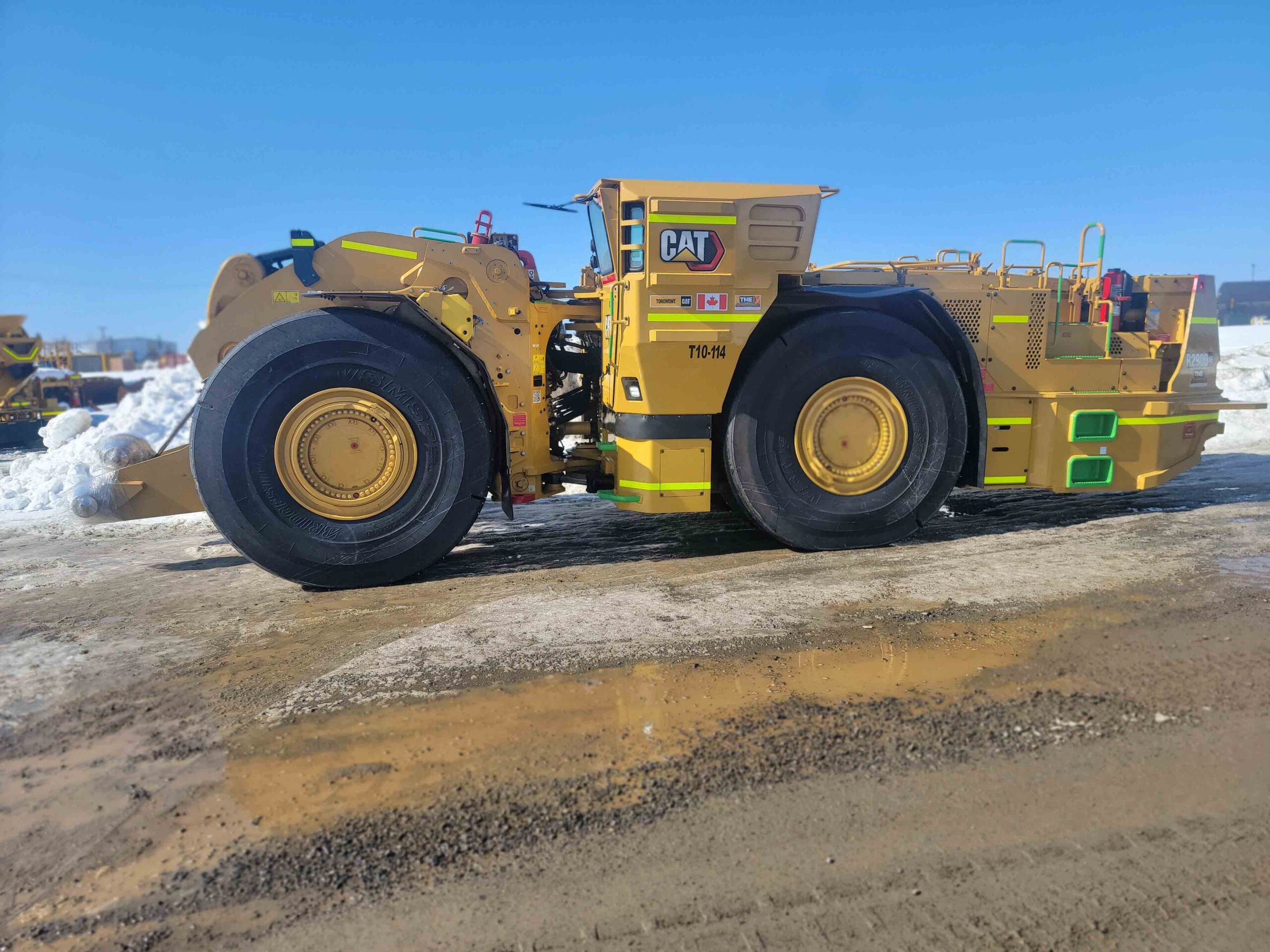

2026 CAT R2900XE SCOOPTRAM

rented

2026 CAT R2900XE SCOOPTRAM

  • 2026 CAT R2900XE SCOOPTRAM
    • Stock #: T10-114

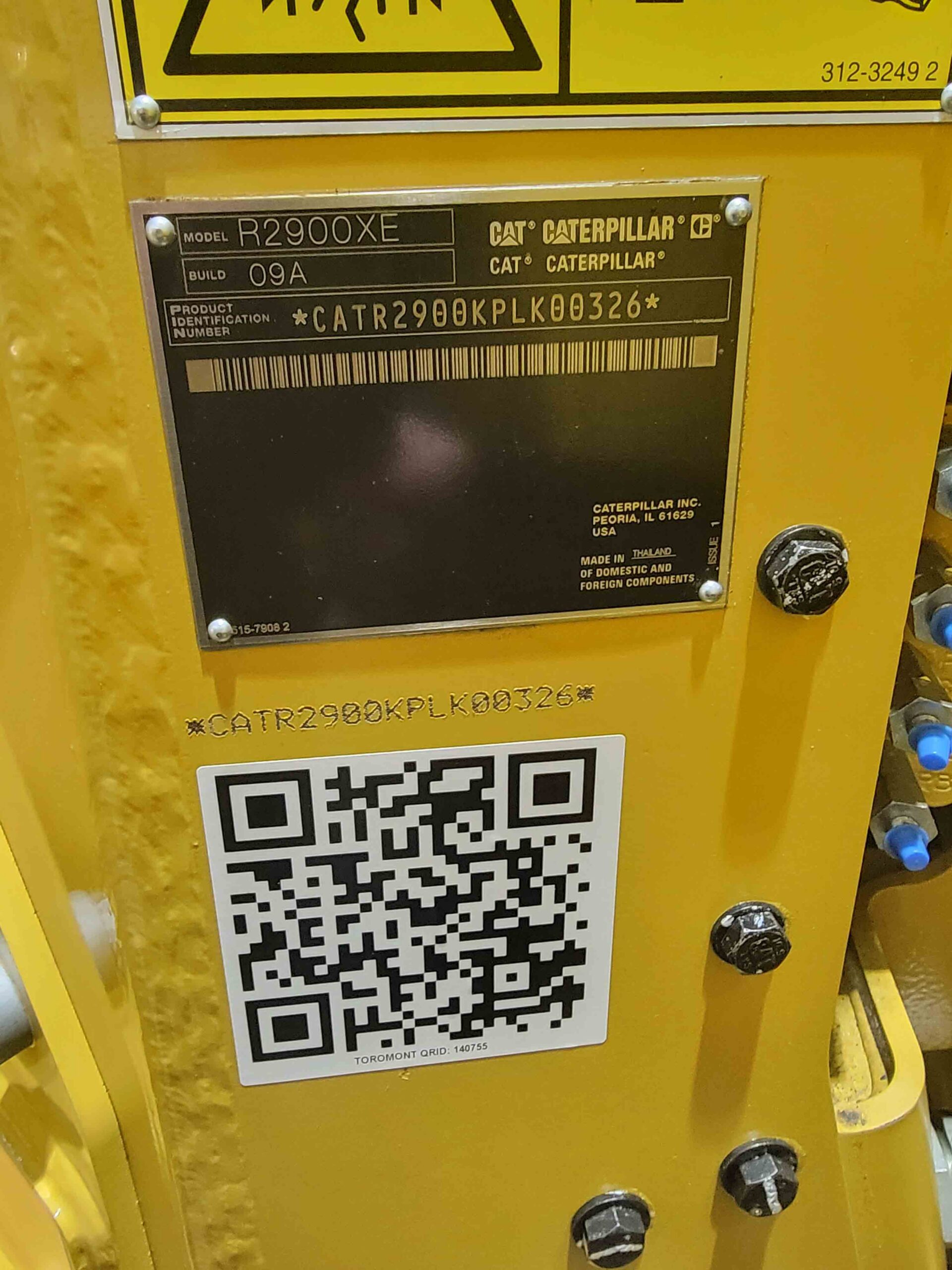

    • Serial #: CATR2900KPLK00326
    • Approximate Hours: 0
    • Make: CAT
    • Model:R2900XE
    • Year: 2026

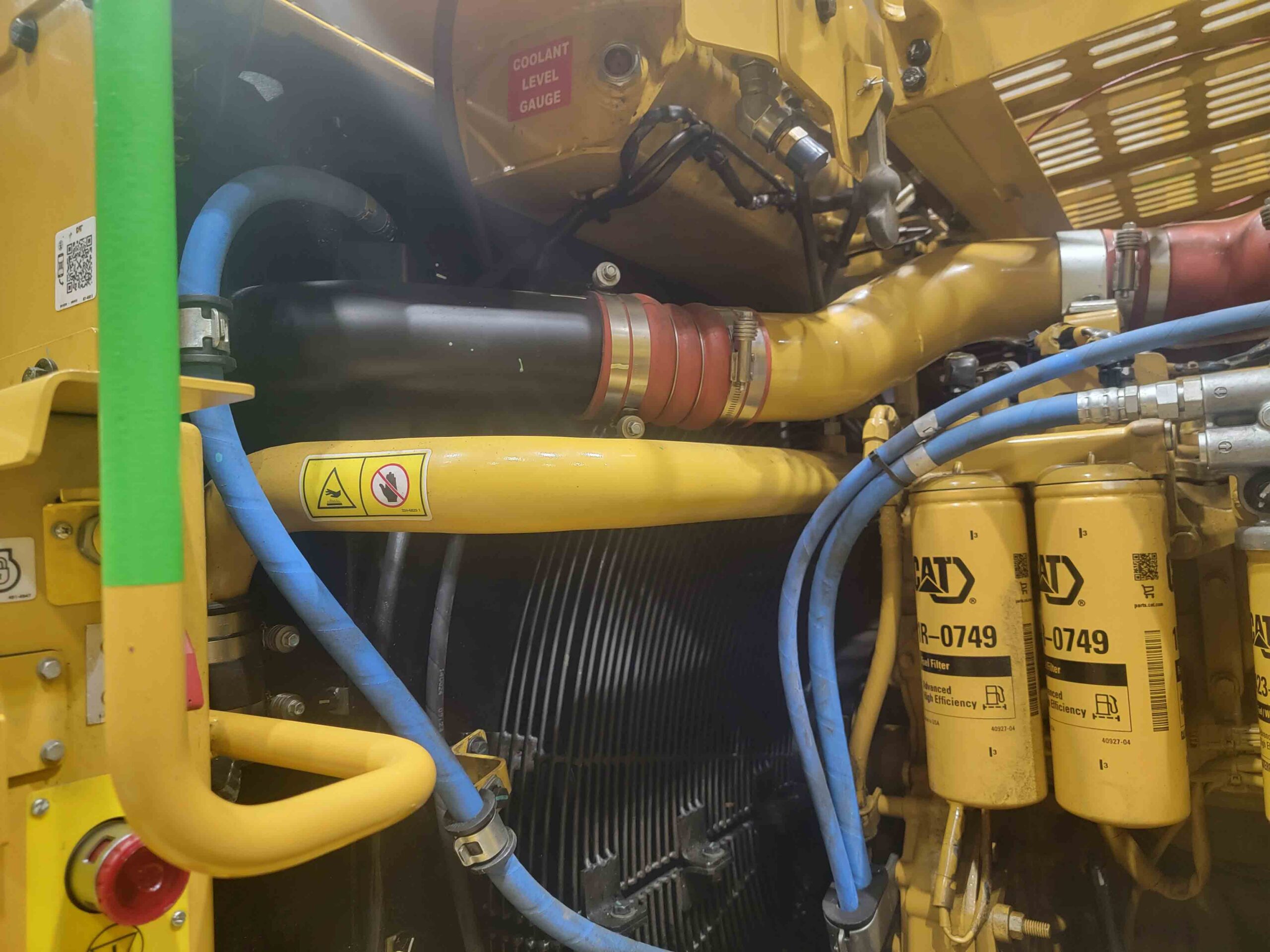

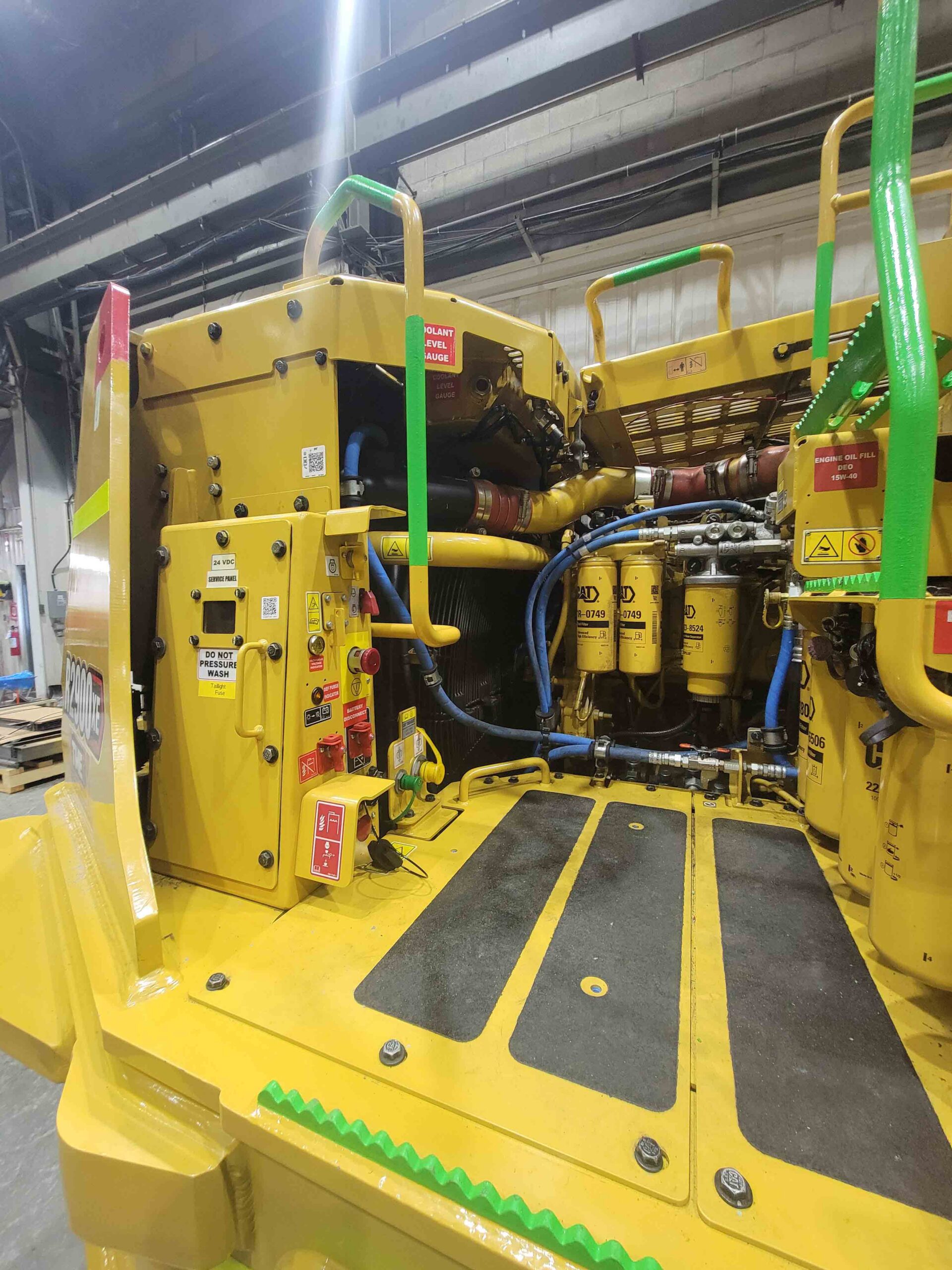

    • Cat® C15 engine delivering up to 449 hp (Stage V).
    • High-capacity payload of 40,785 lb.
    • Gross machine mass of 172,157 lb for robust stability.
    • Bucket capacity range of 7.4–9.8 m³ (9.7–12.8 yd³).
    • Strong breakout force:
      • Lift: 71,500 lb
      • Tilt: 92,500 lb
    • Cat switched reluctance electric drive transmission for efficiency and control.
    • Five virtual forward speeds up to 20.8 mph.
    • Five virtual reverse speeds up to 20.4 mph.

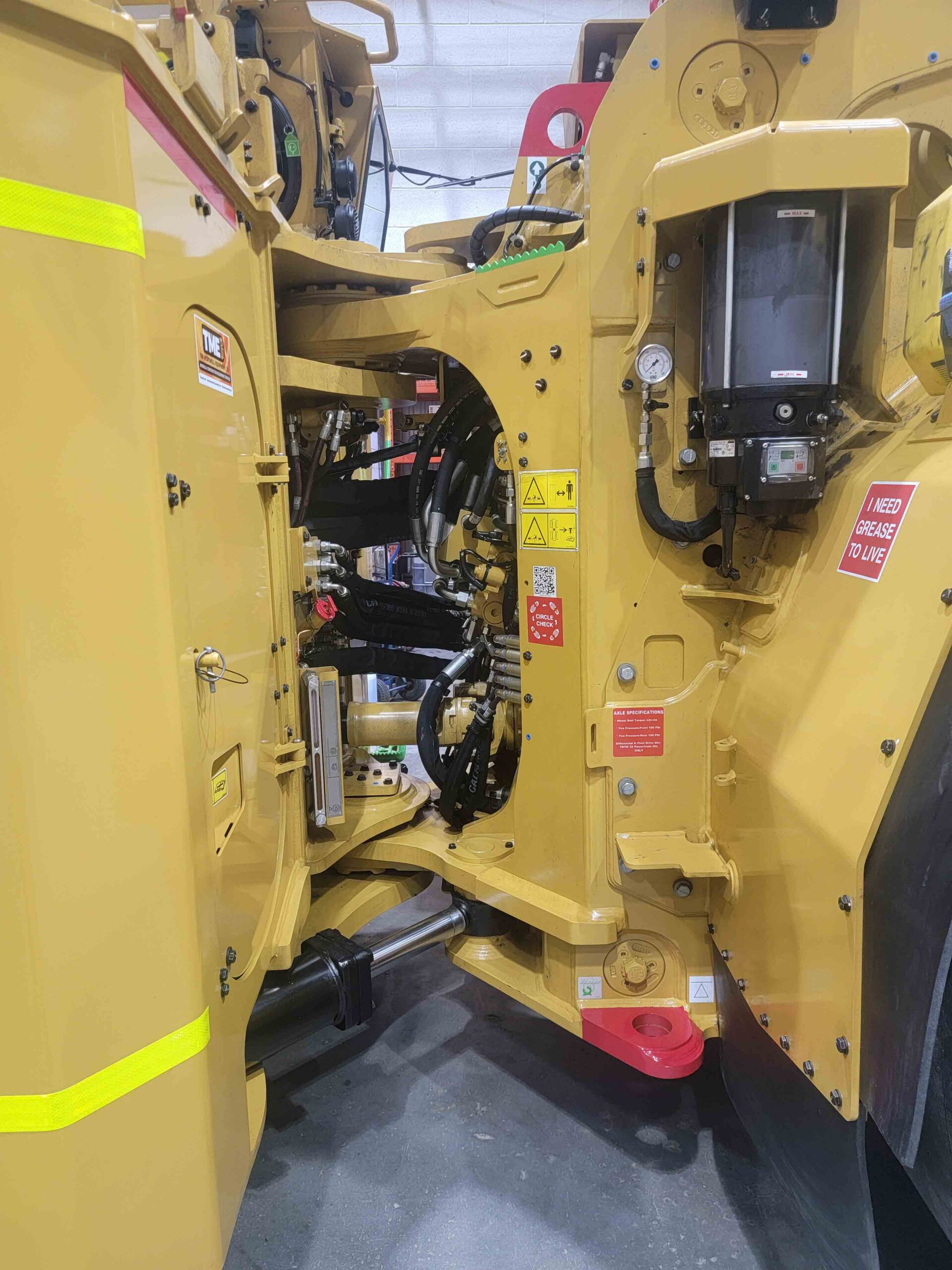

    • Electro-hydraulic lift/tilt system for smooth, responsive operation.
    • High hydraulic flow of 264 gpm for fast cycle times.
    • Fast hydraulic cycle: 15.3 seconds total.

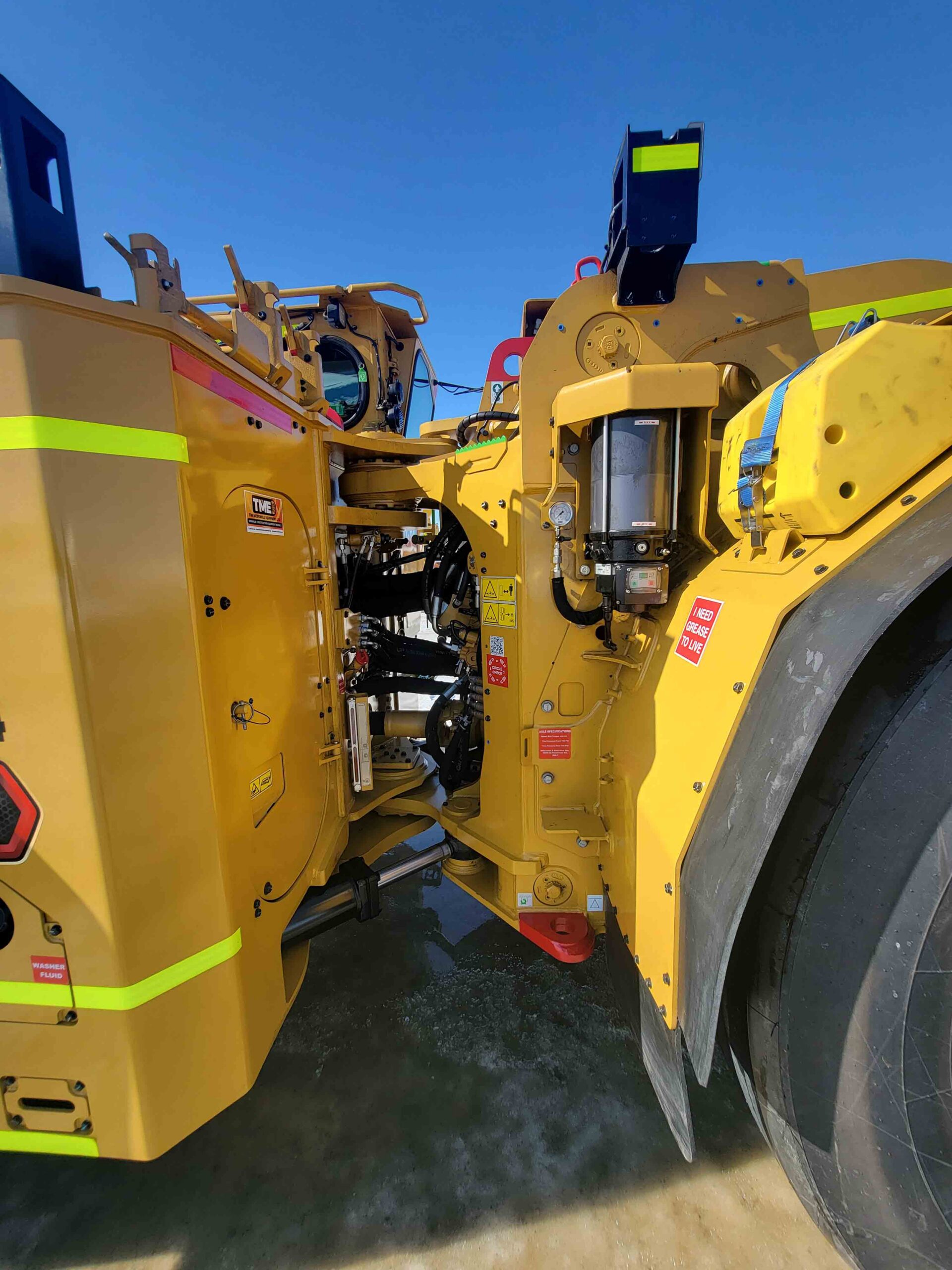

    • Large articulation angle of 42.5° for maneuverability.
    • Outside clearance turning radius of 286 in.

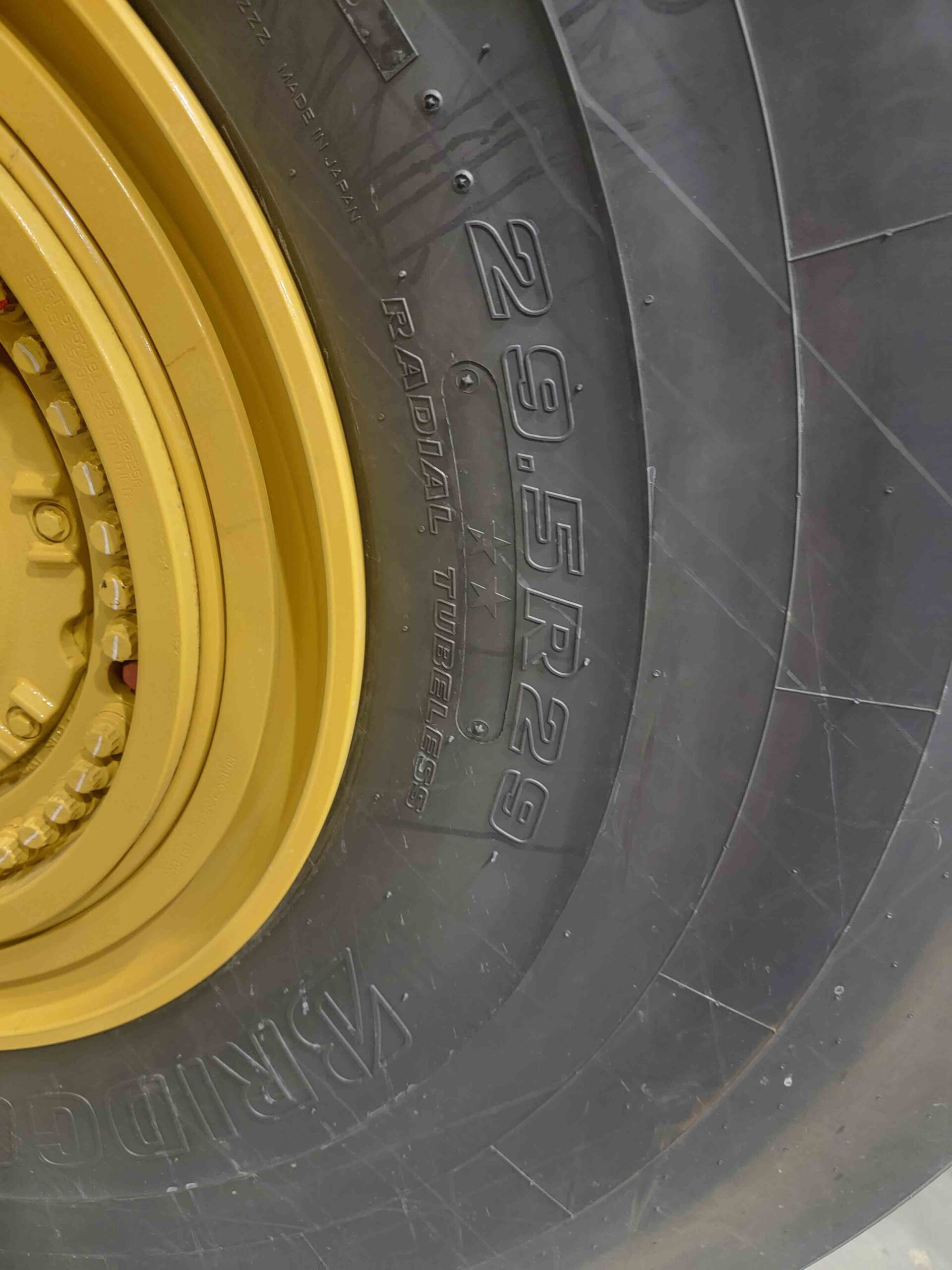

    • Tire size: 29.5 R29 for heavy‑duty traction.
    • Operating mass of 122,300 lb for stability.
    • Minimal engine derating up to 9,600 ft.
    • Optional Diesel Particulate Filter (DPF) available.
    • Large fuel tank capacity of 174.4 gallons for extended operation.
    • Hydraulic tank capacity: 89.3 gallons, supporting long hydraulic performance.
    • High differential/final drive oil capacities for durability (Front: 37 gal, Rear: 40.7 gal).

Specification Sheet

Download Sheet

Interested in the 2026 CAT R2900XE SCOOPTRAM?
