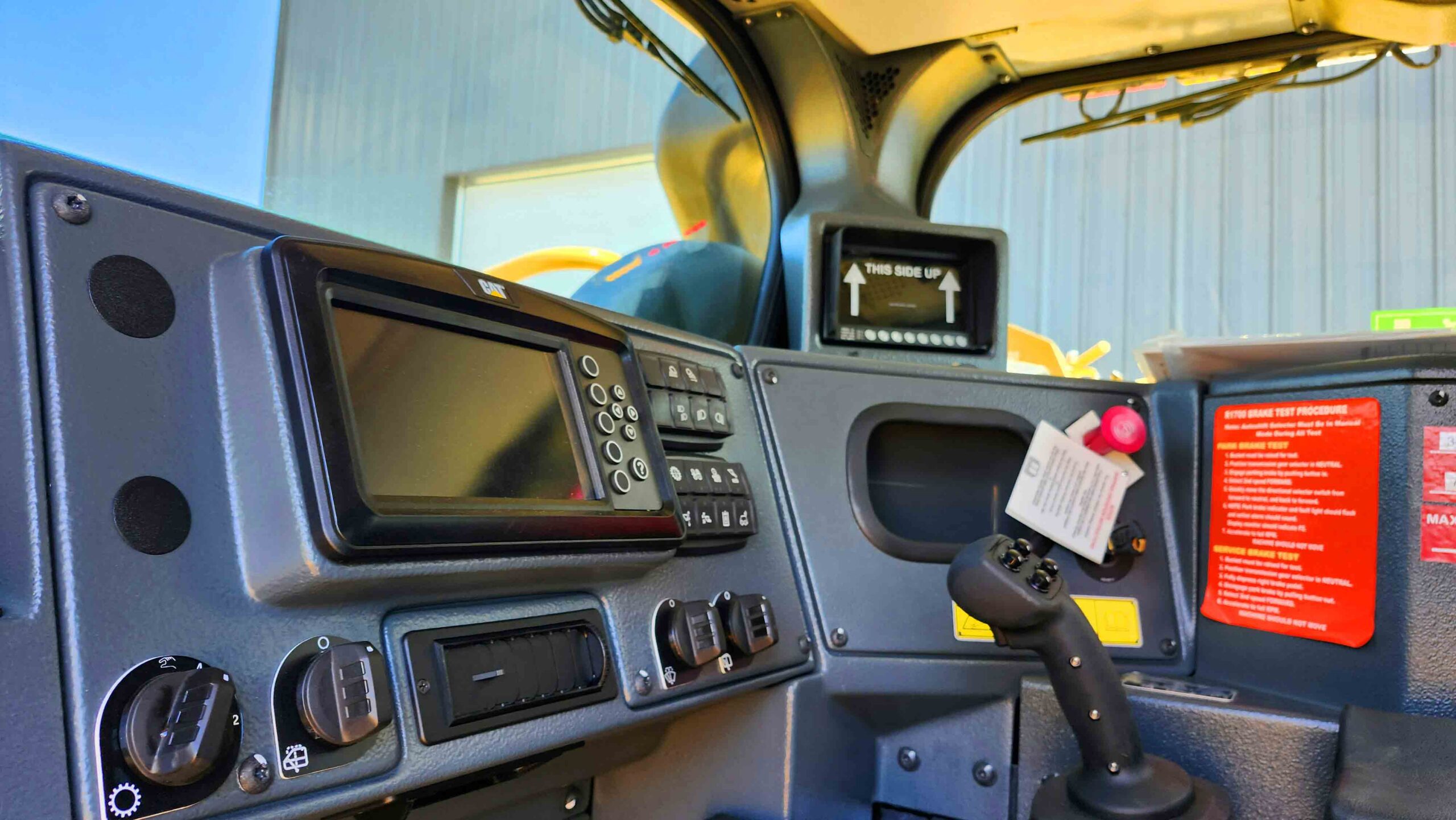

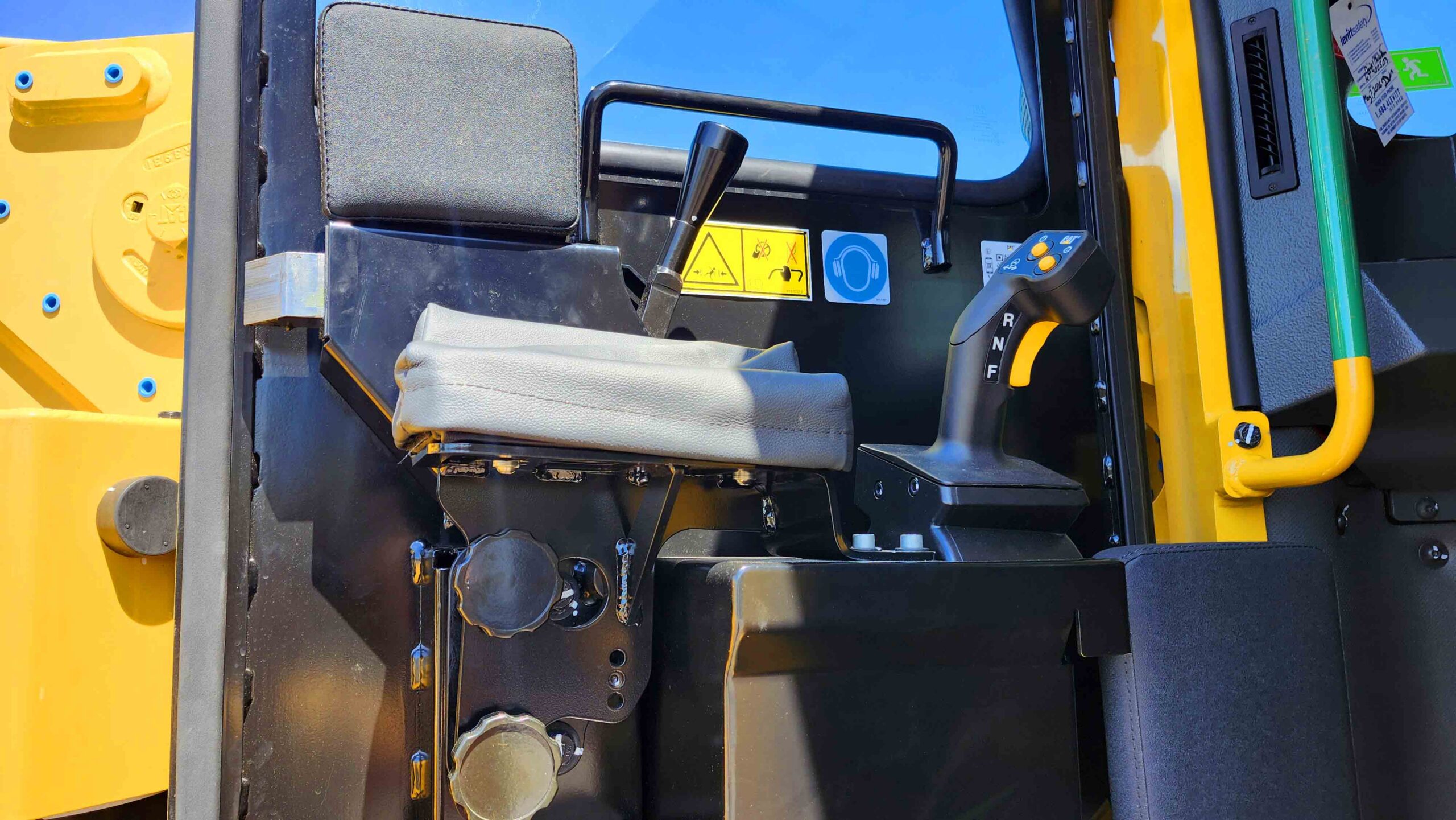

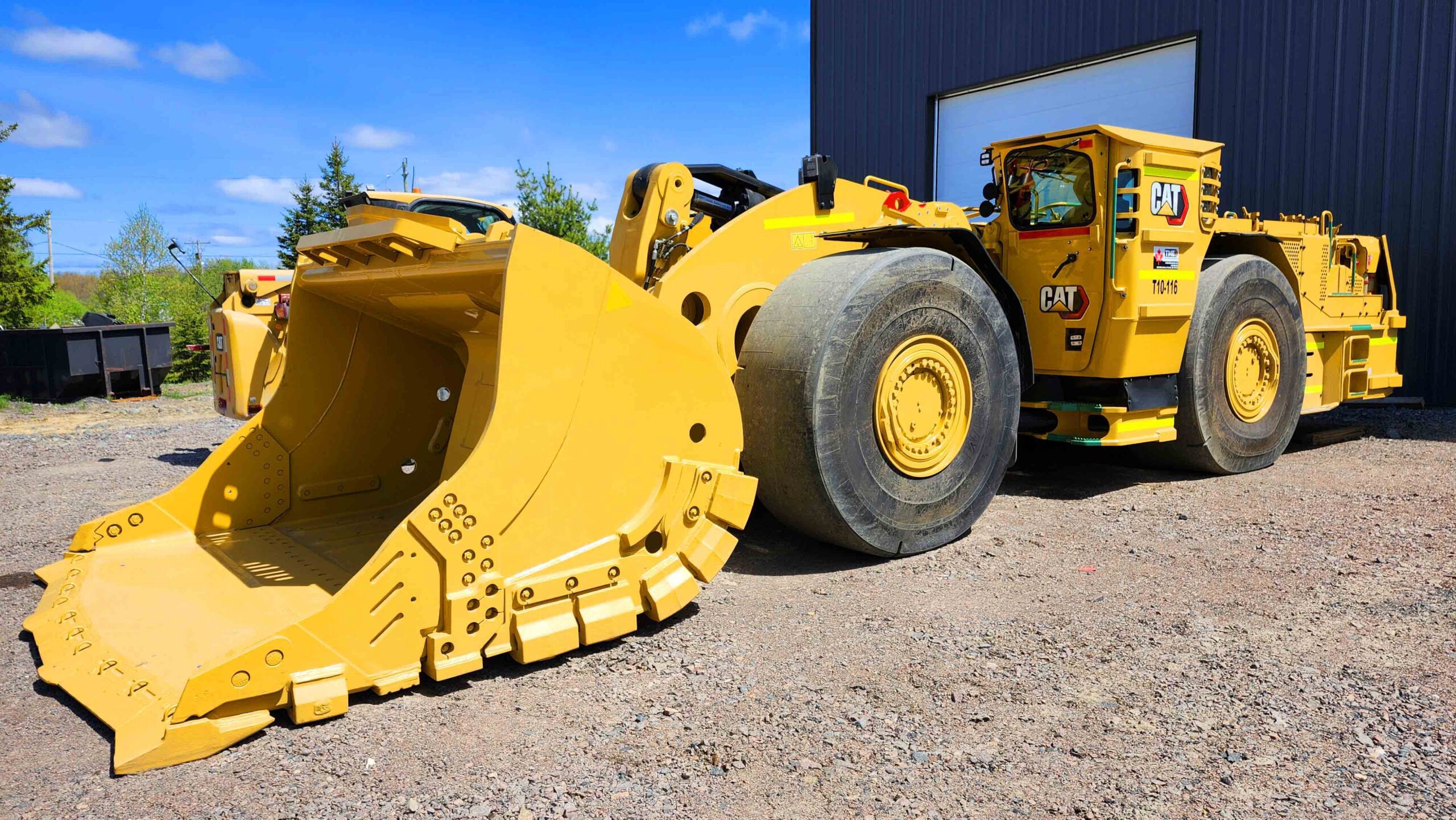

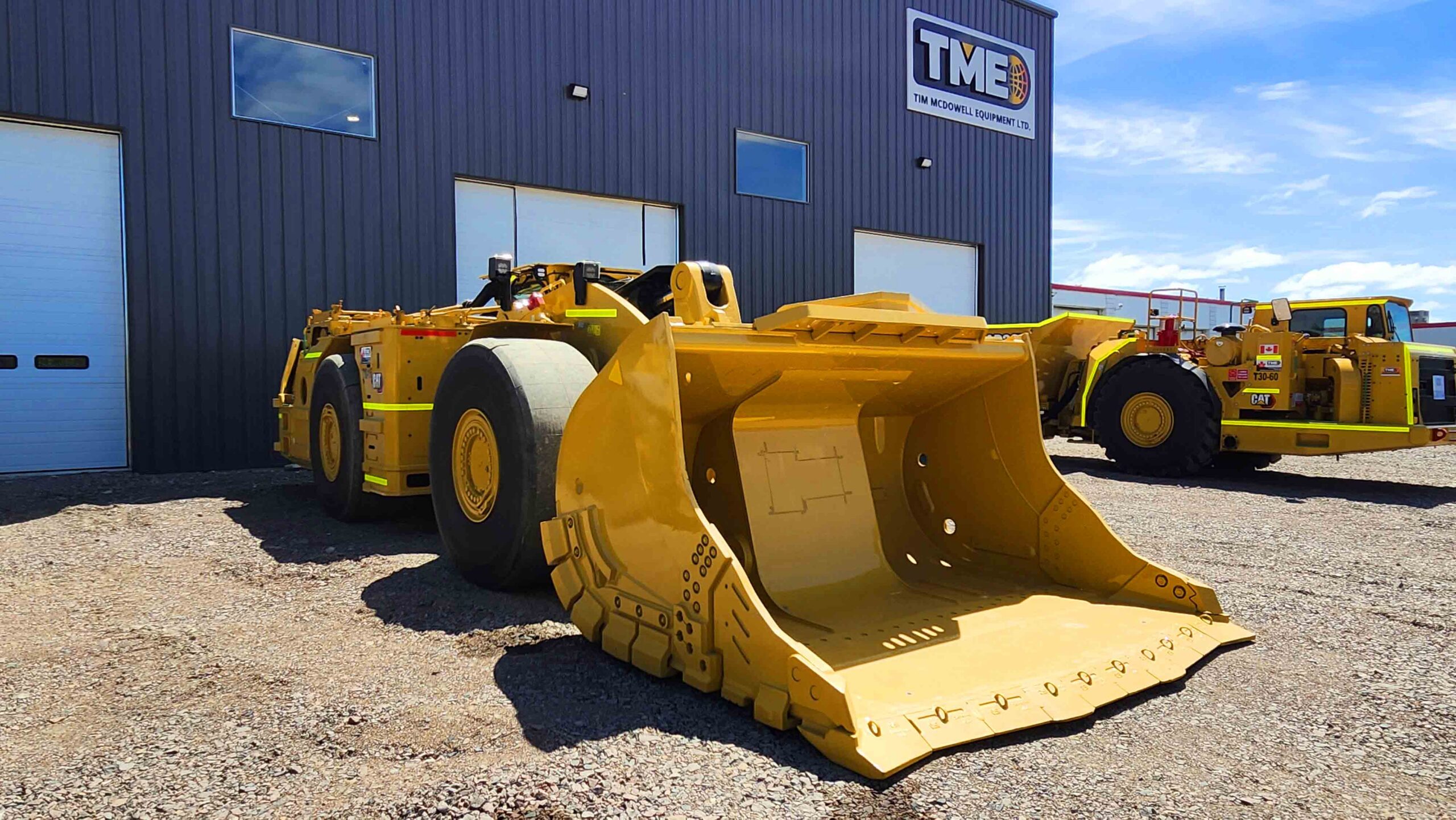

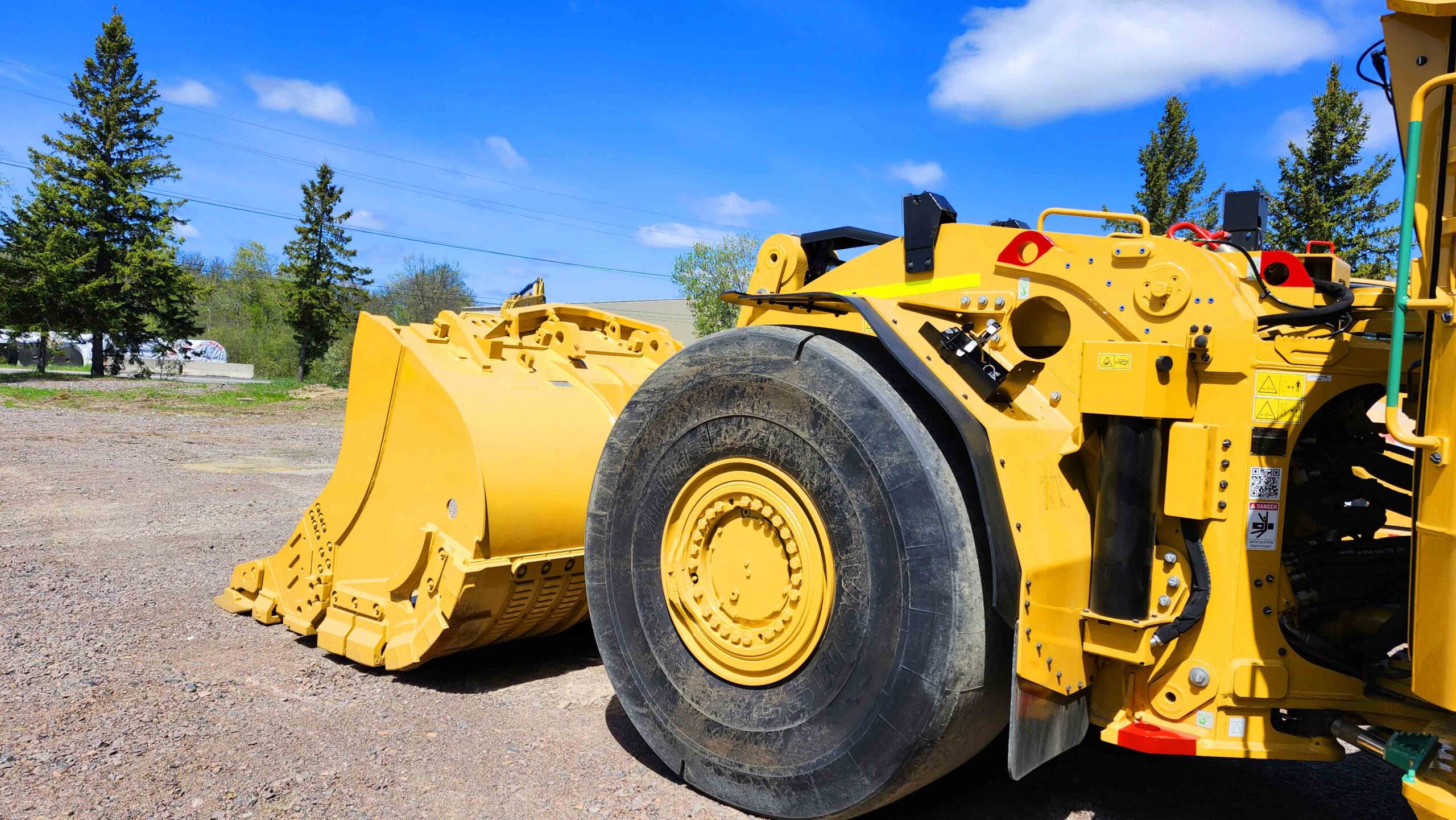

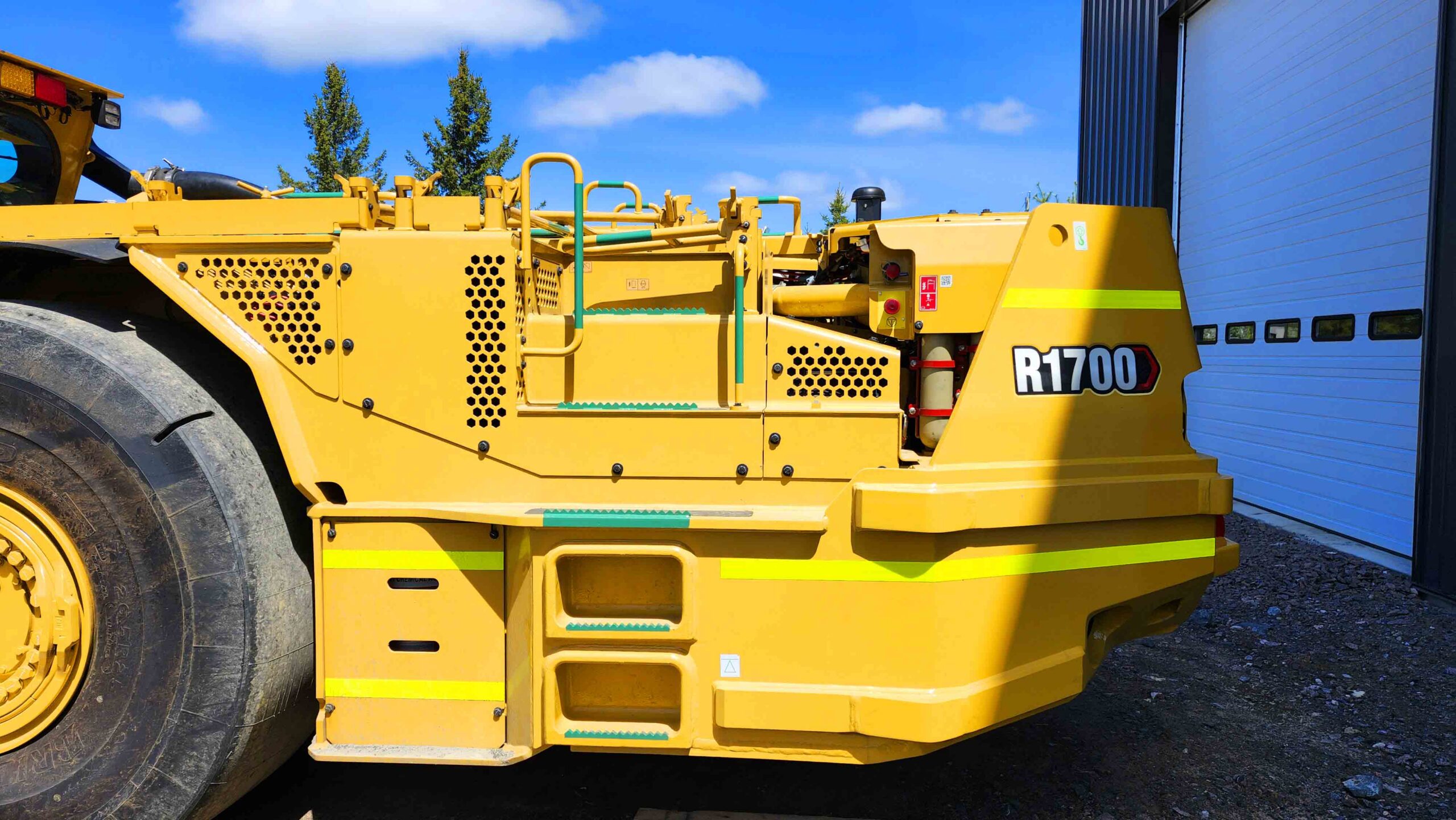

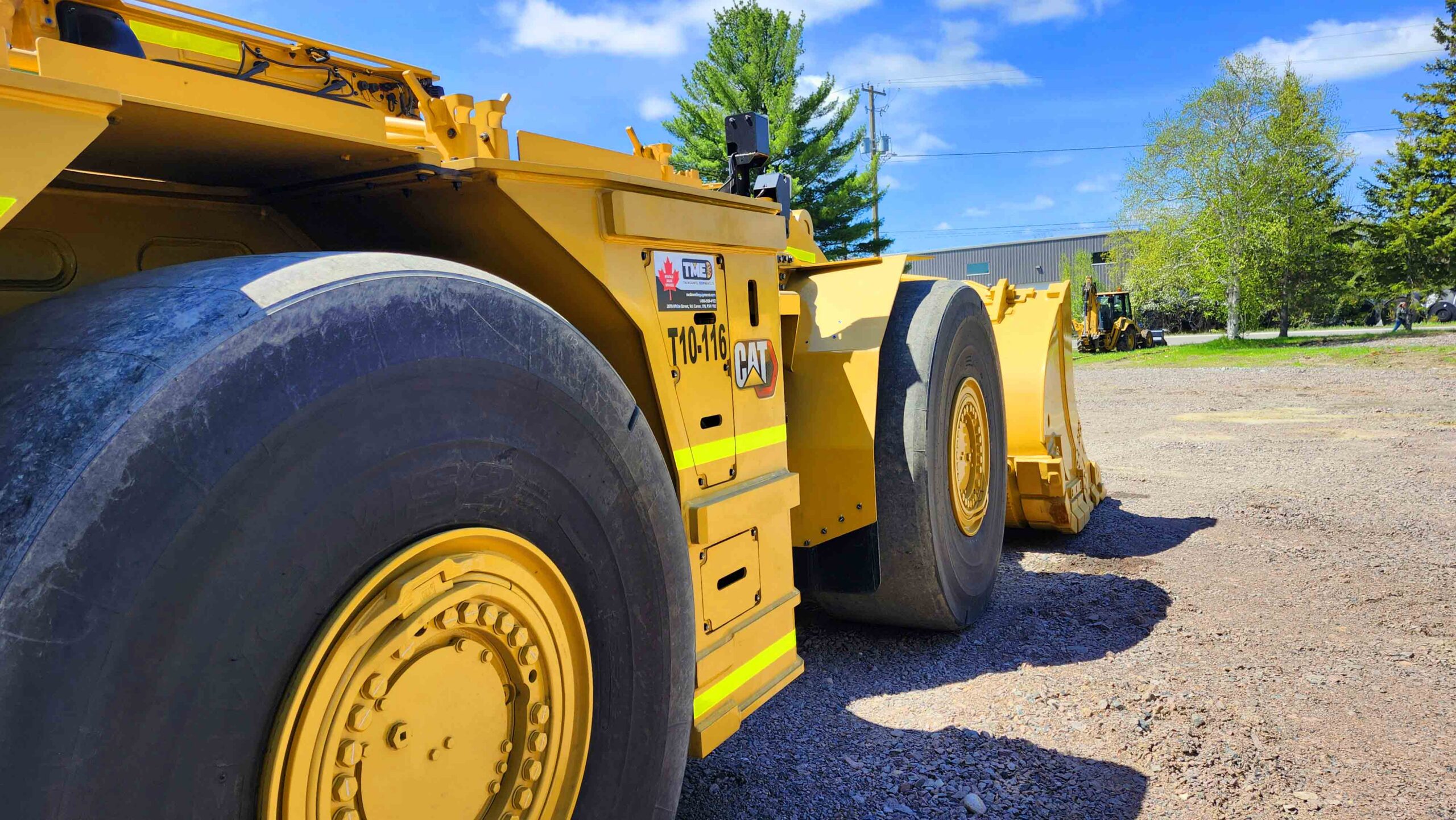

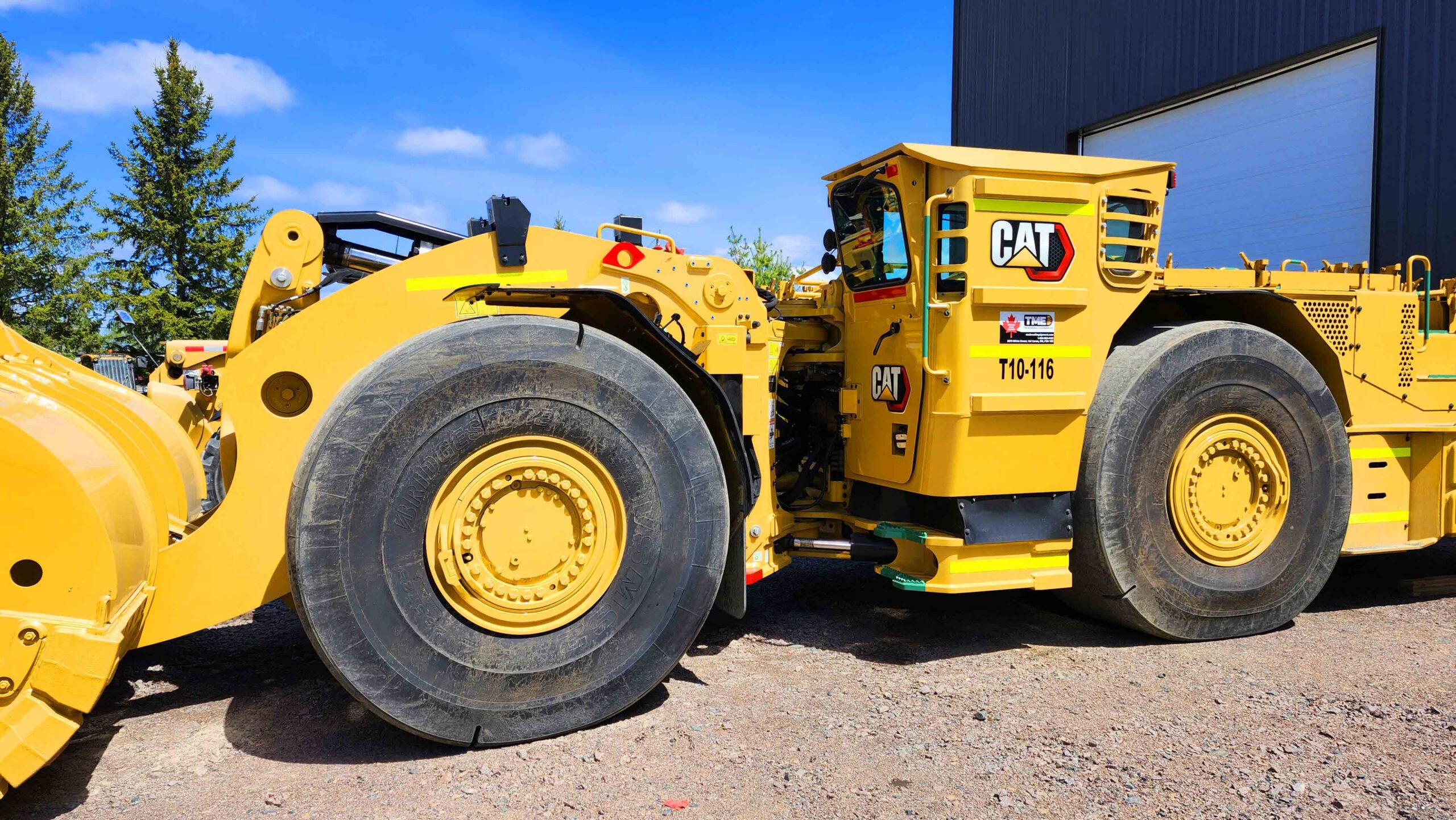

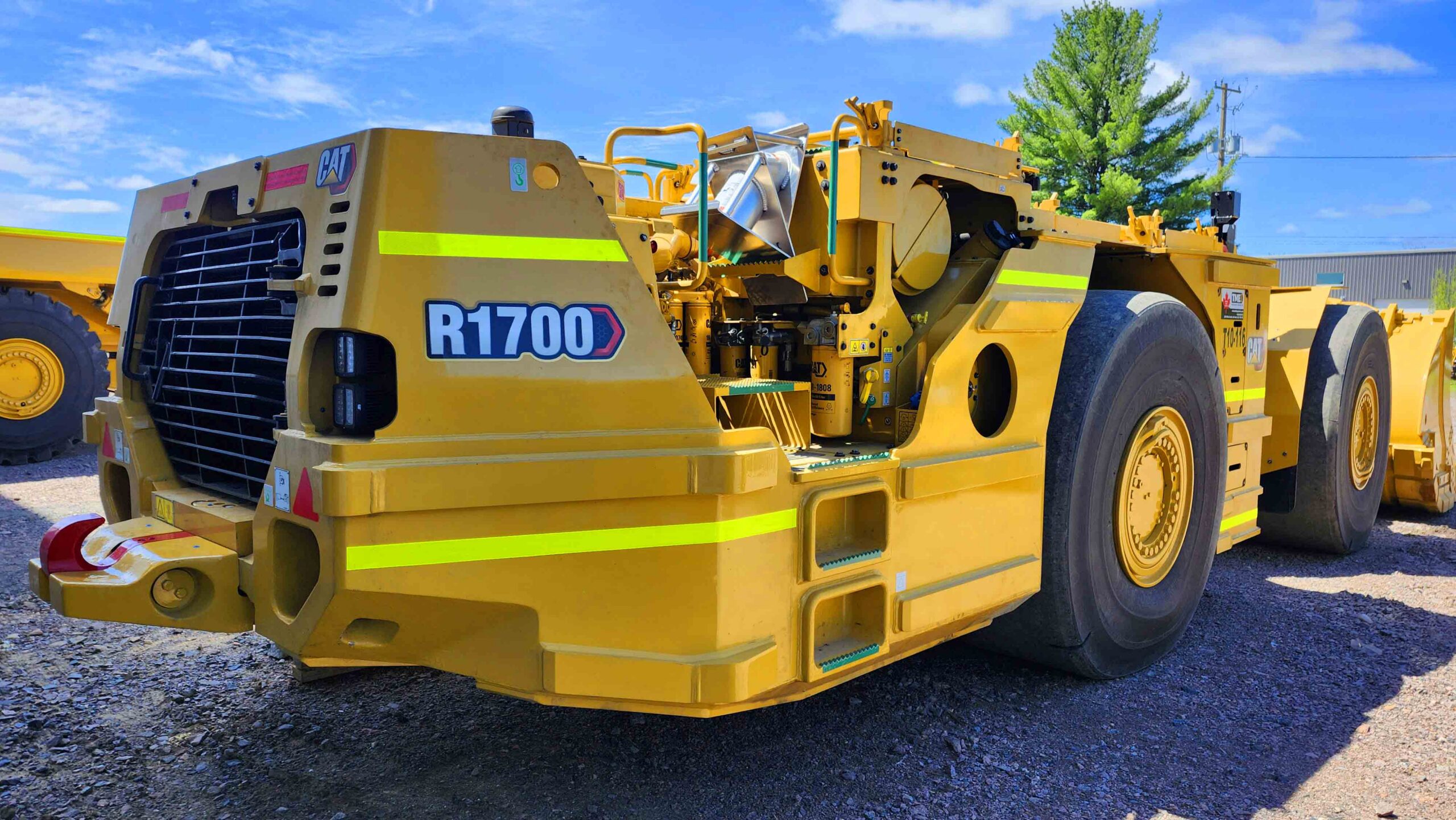

2026 CAT R1700 SCOOPTRAM
available
- 2026 CAT R1700 SCOOPTRAM
- Stock #: T10-115

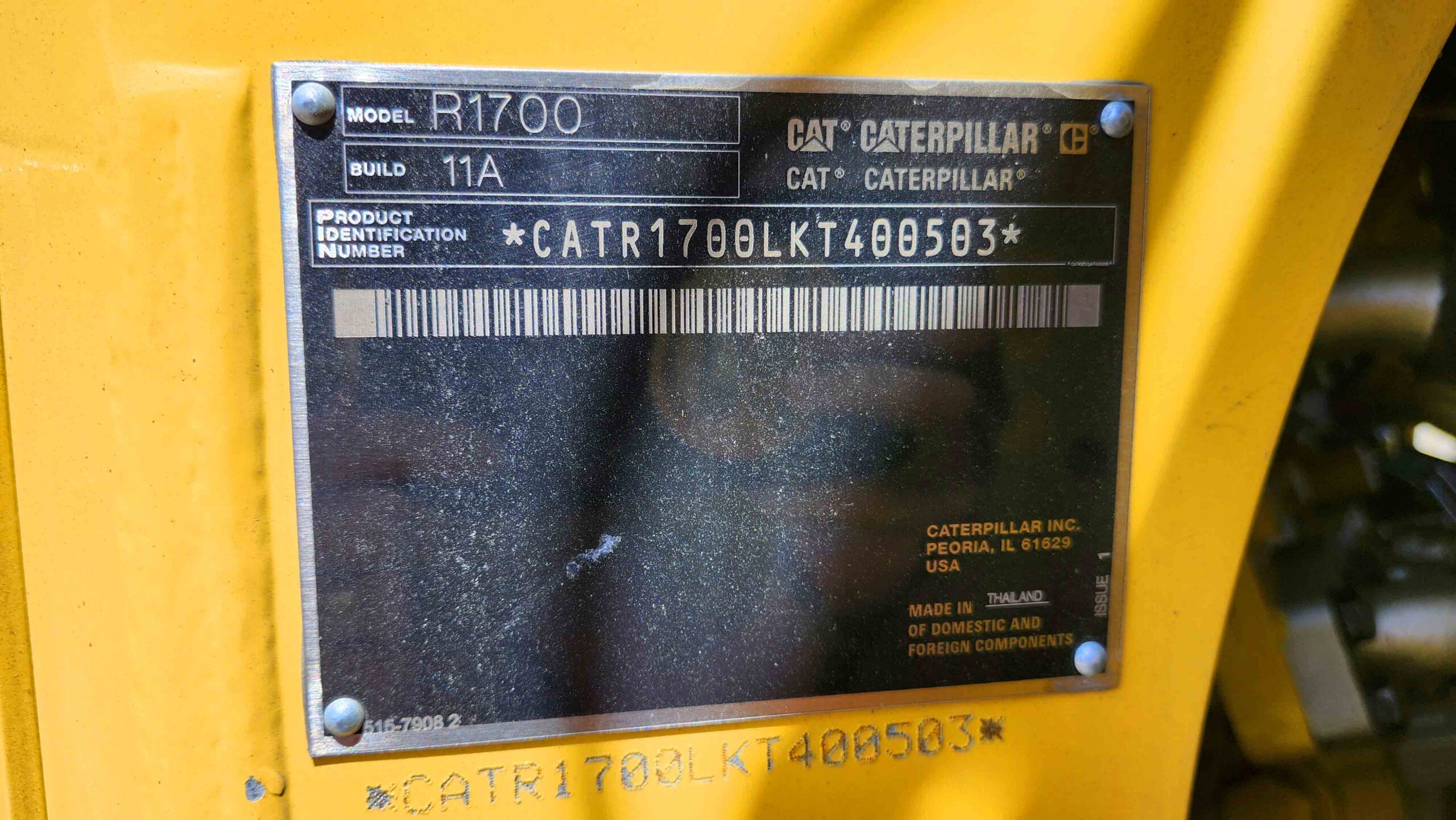

- Serial #:
- Approximate Hours: 0
- Make: CAT
- Model: R1700
- Year: 2026
- Cat® C13 engine
- 361 hp
- No engine derating up to 9,500 ft (Stage V)
- Optional Ventilation Reduction (VR) package
- Nominal payload capacity of 33,069 lb
- Gross loaded mass of 138,316 lb
- Breakout force of 53,330 lb
- Static tipping load of 83,218 lb (straight)
- Total hydraulic cycle time of 13.2 seconds

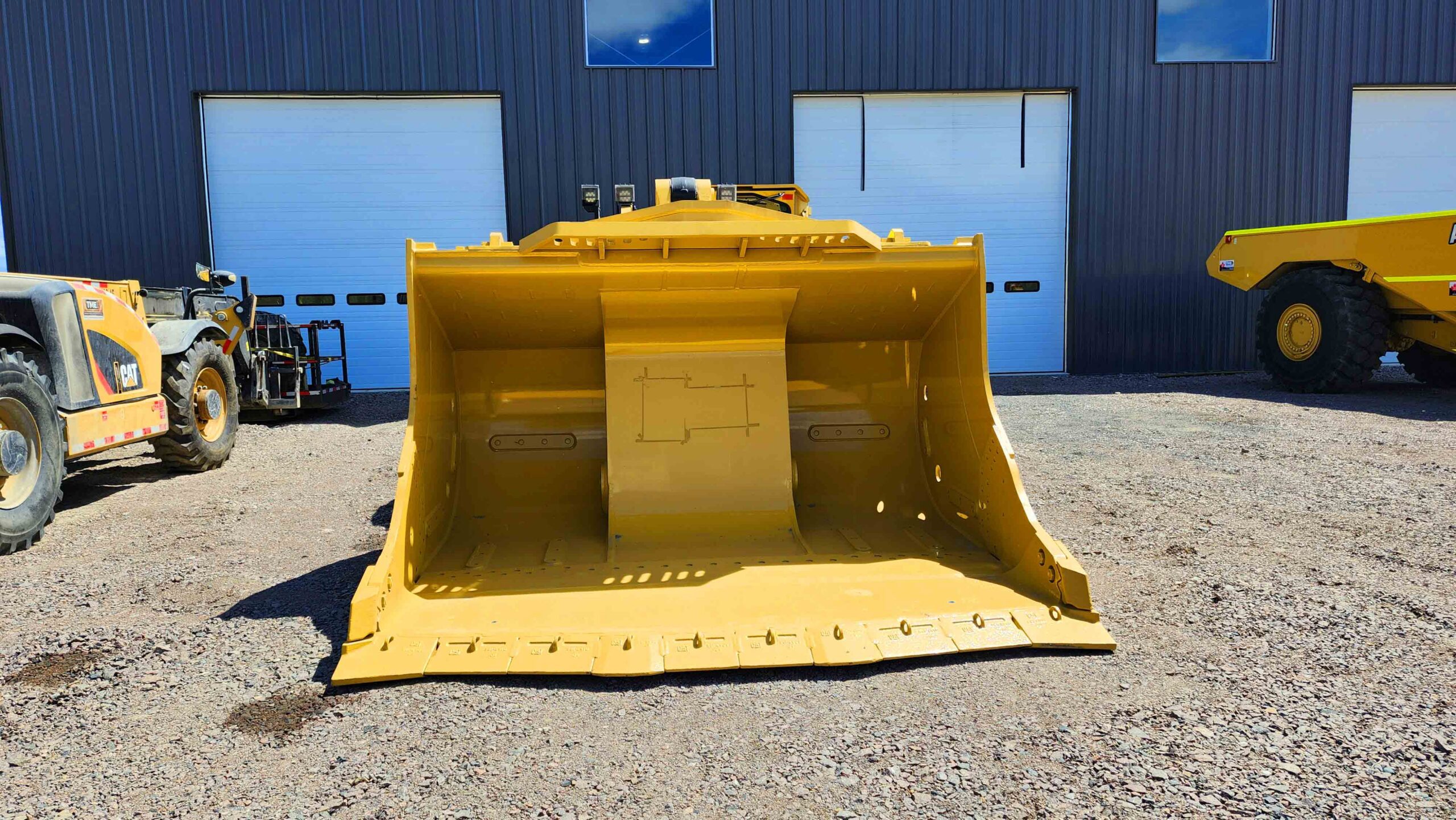

- Bucket capacity range: 5.7–8.6 m³ (7.5–11.2 yd³)
- Top forward speed of 17.9 mph
- Top reverse speed of 20.2 mph
- Turning radius of 272 in (outside clearance)
- Articulation angle of 44°
- Axle oscillation of 8°
- Tire size 26.5R25
- Operating mass of 95,189 lb
- Fuel capacity of 128.4 gallons
- DEF tank capacity of 7.1 gallons
