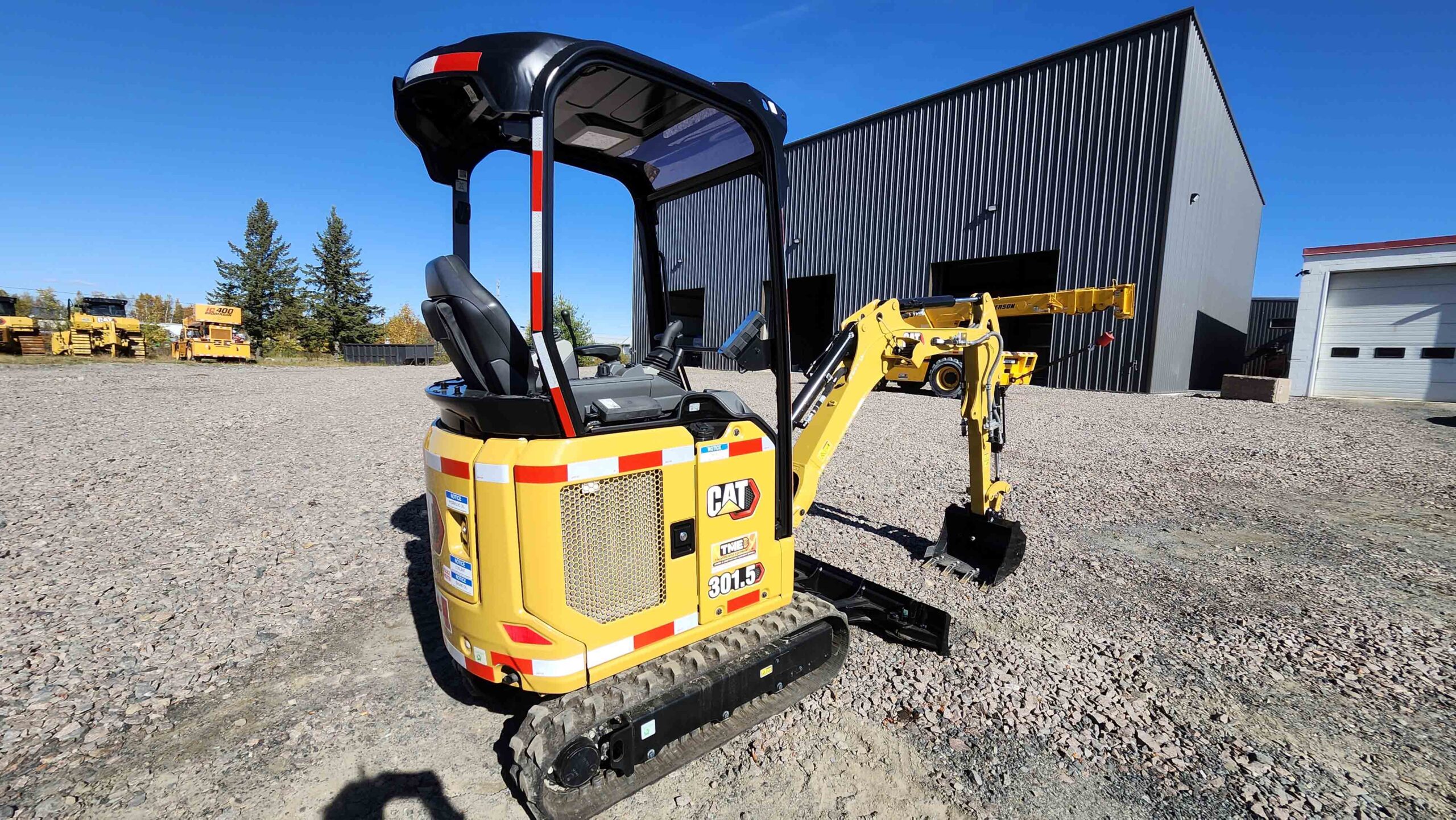

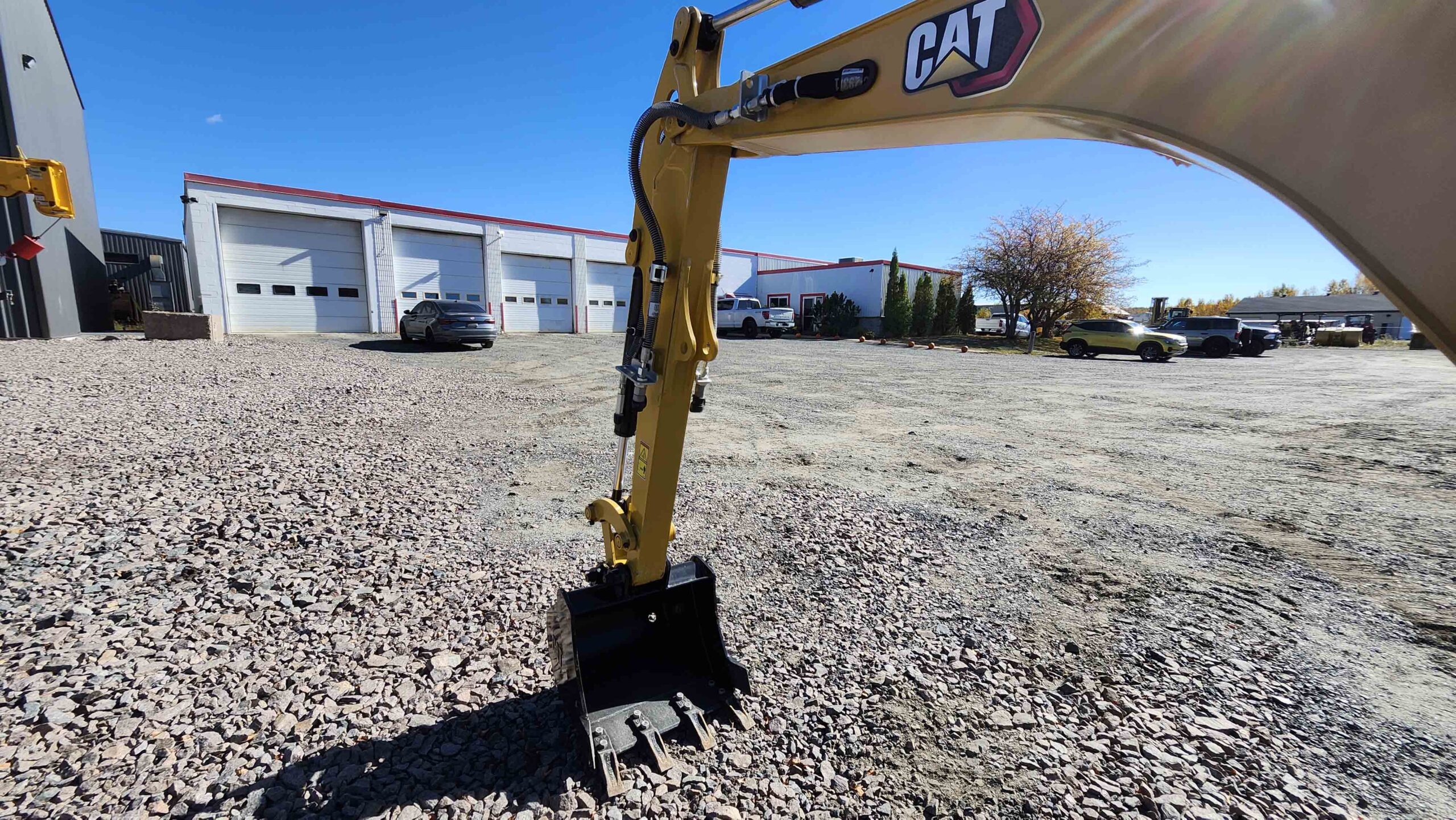

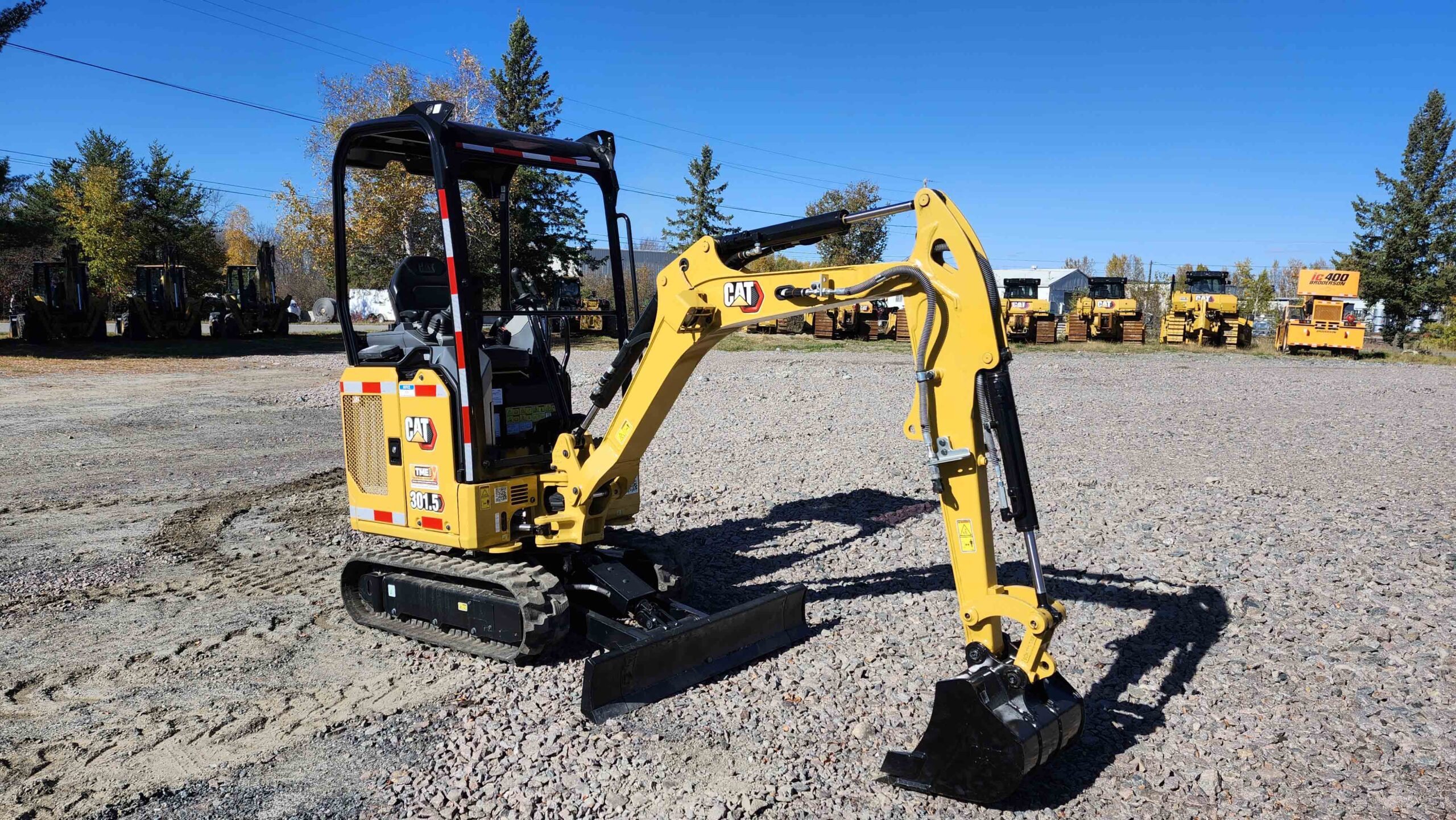

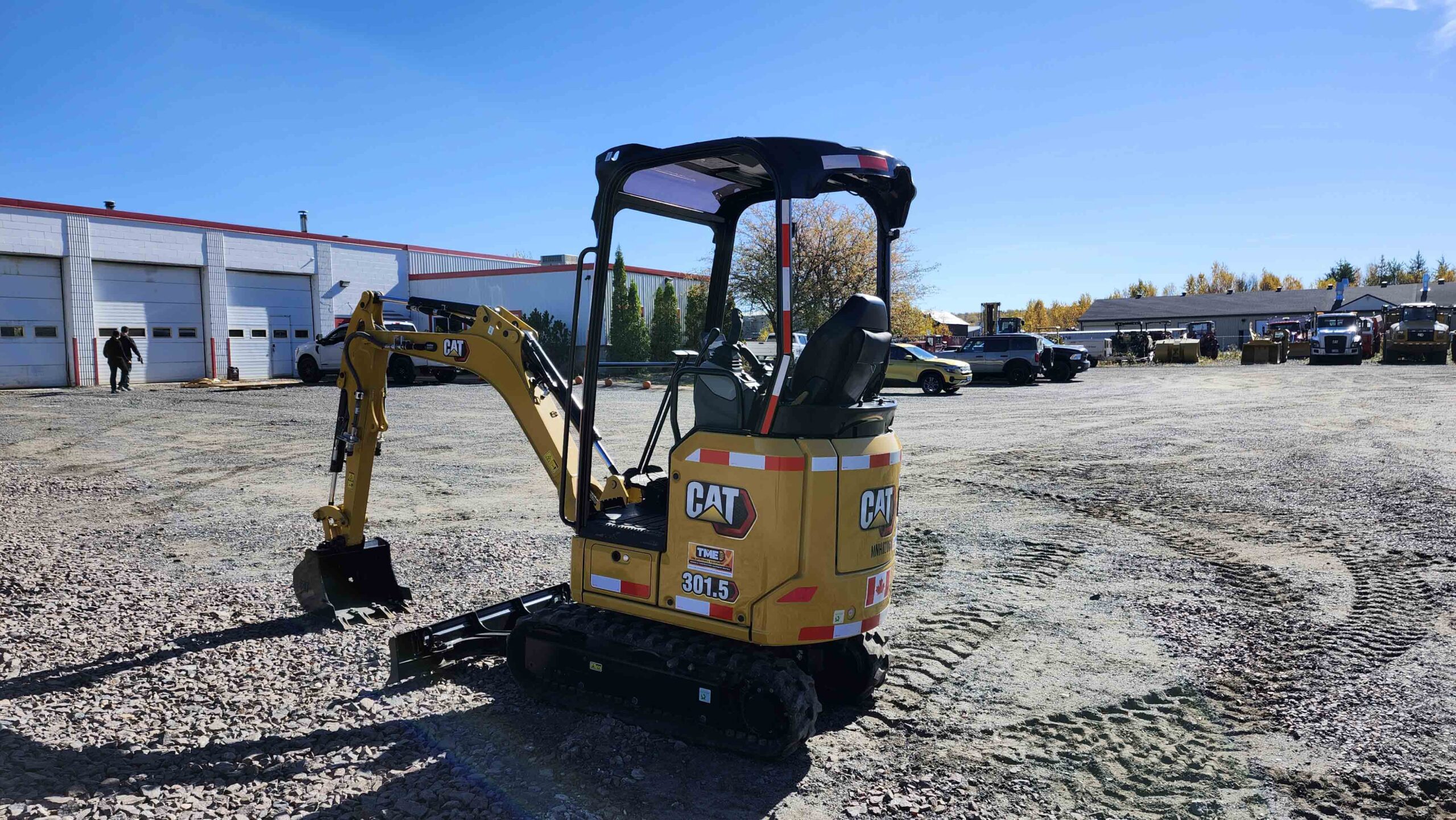

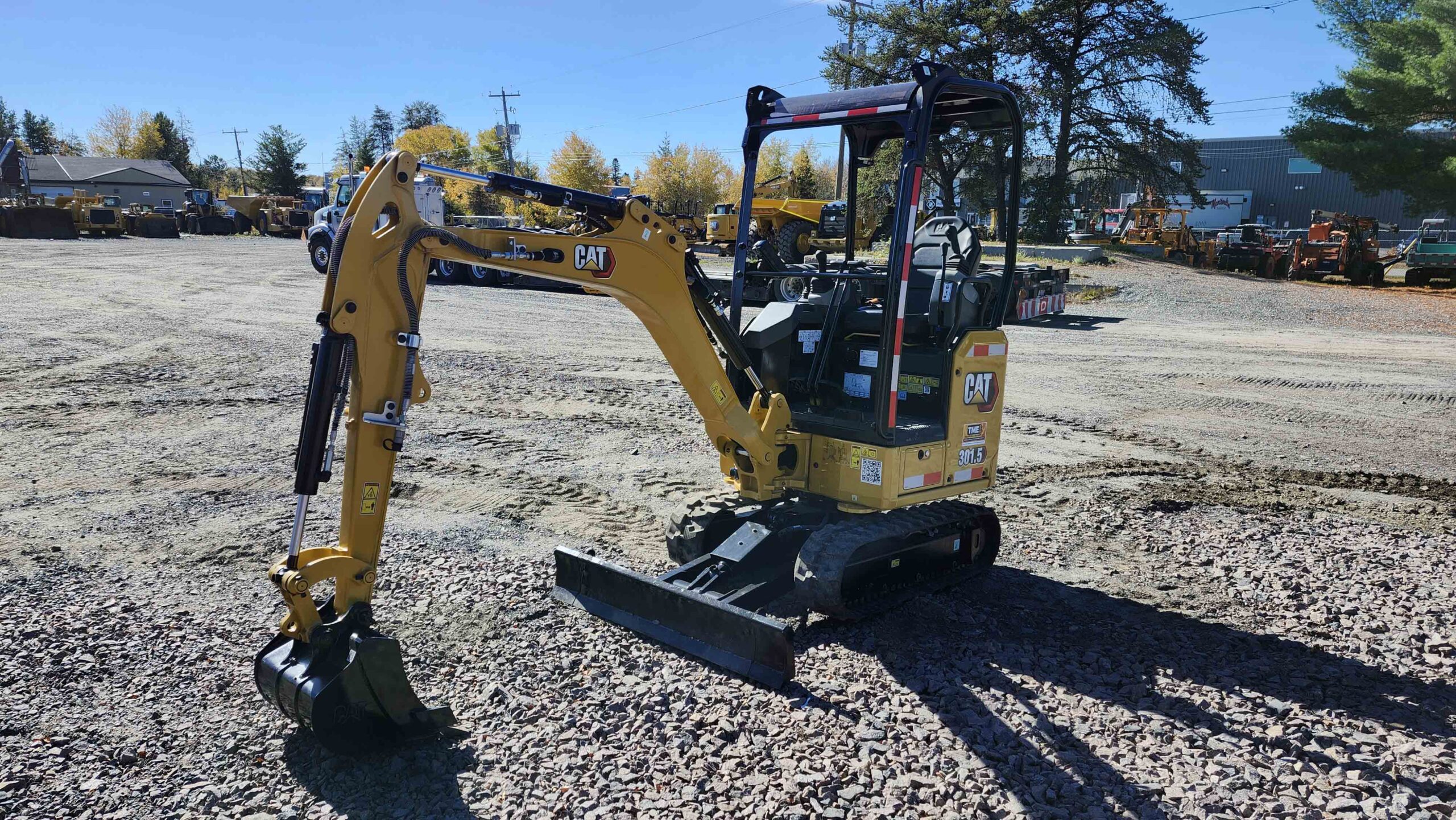

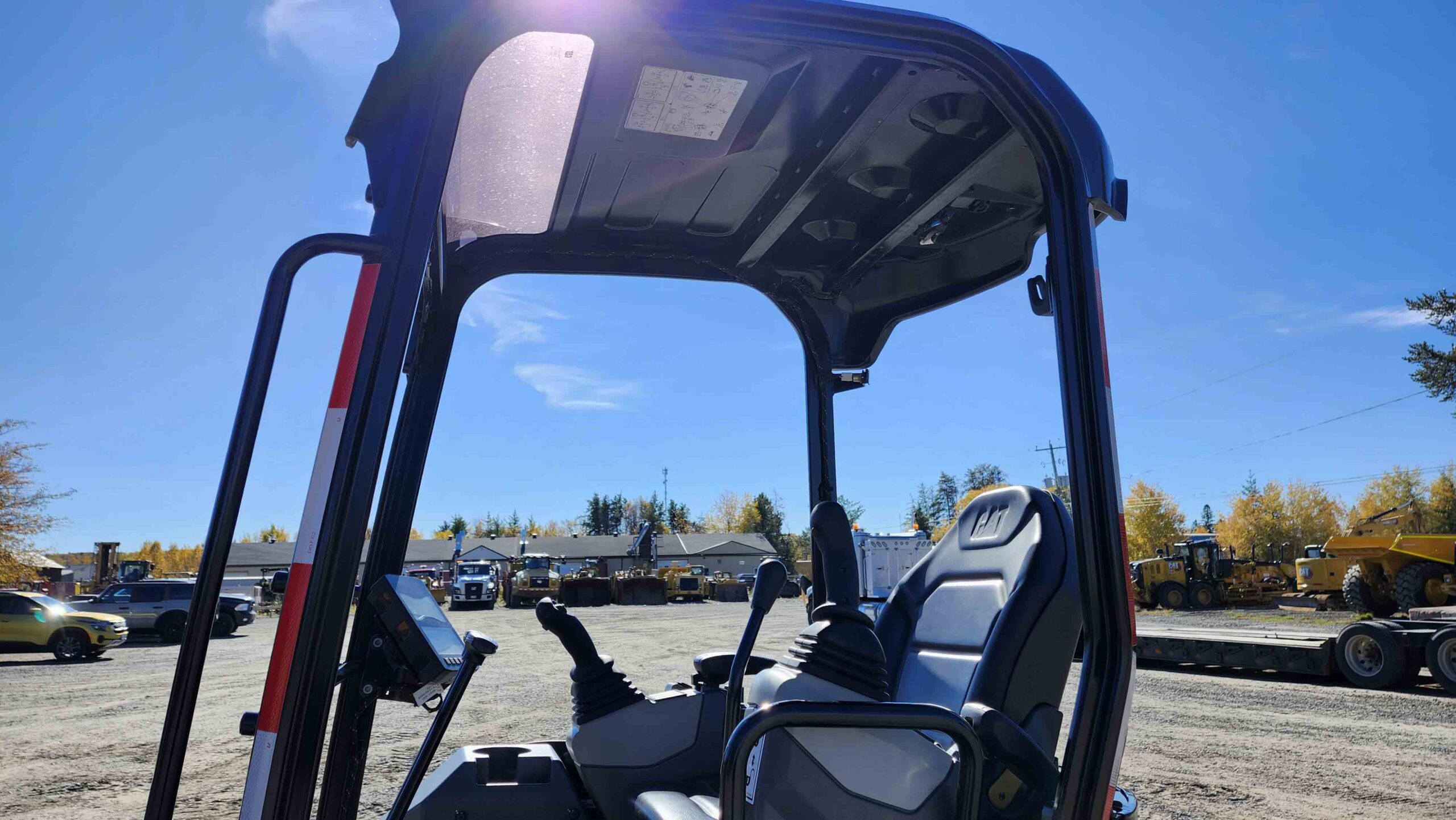

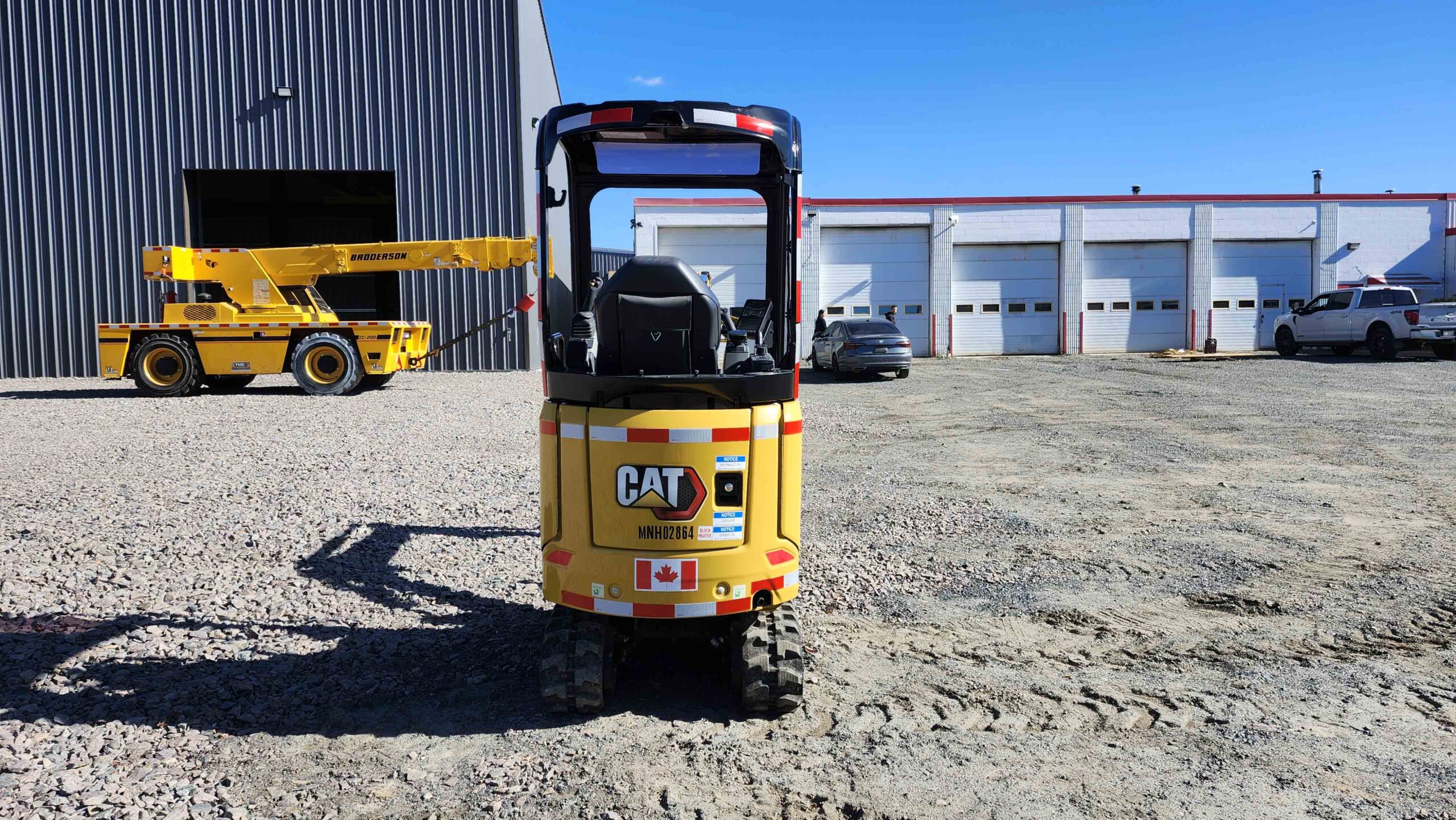

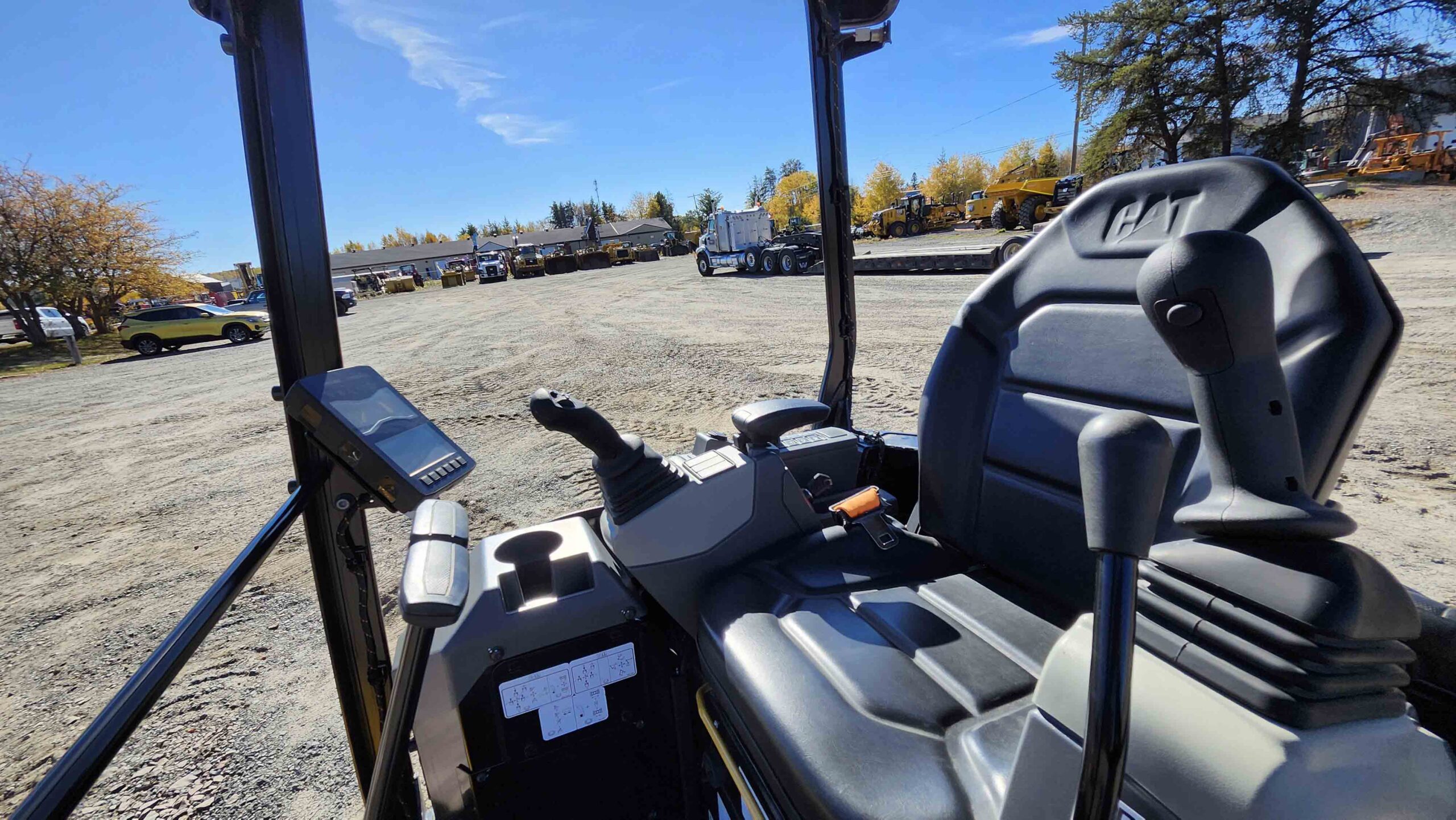

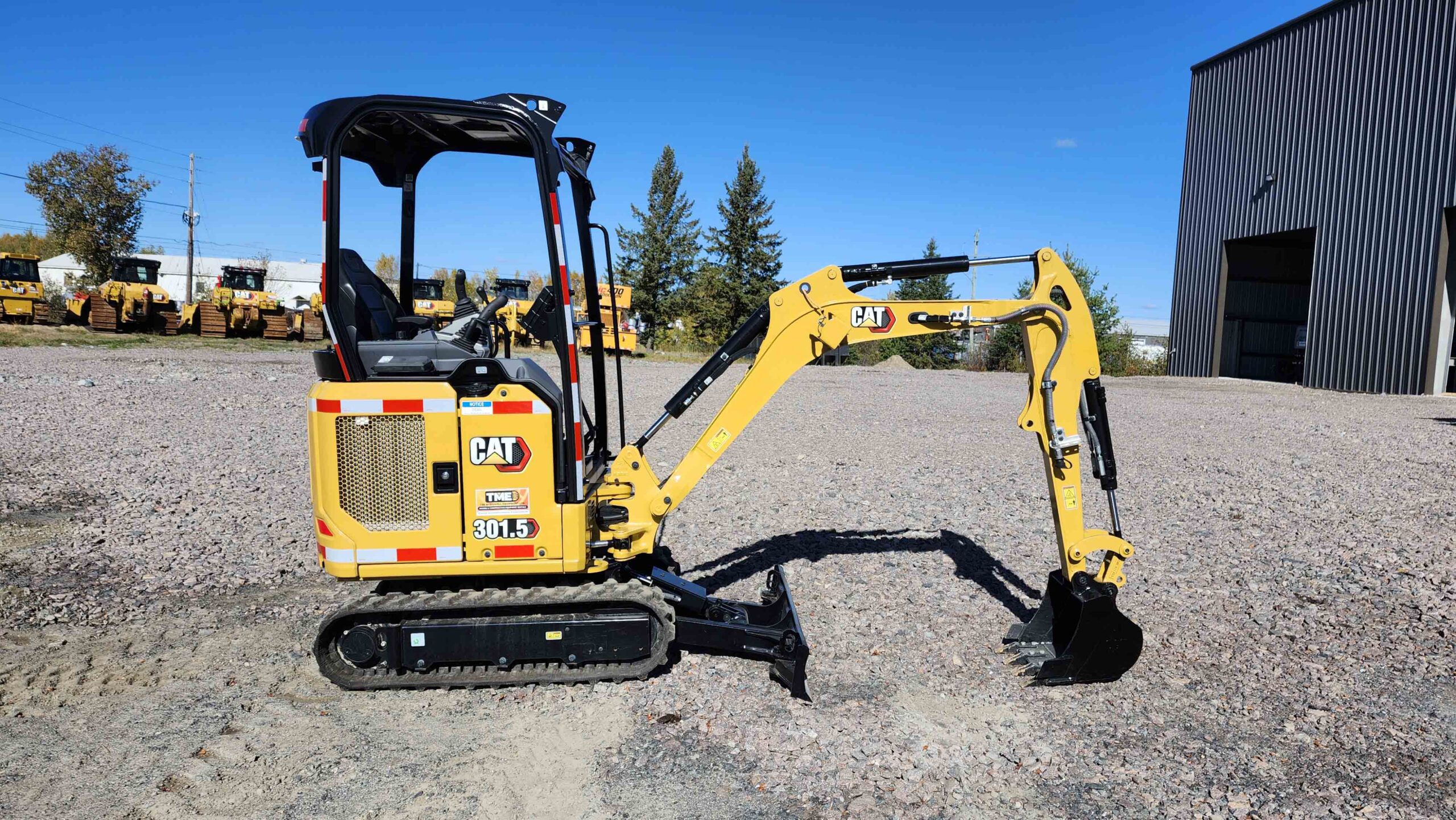

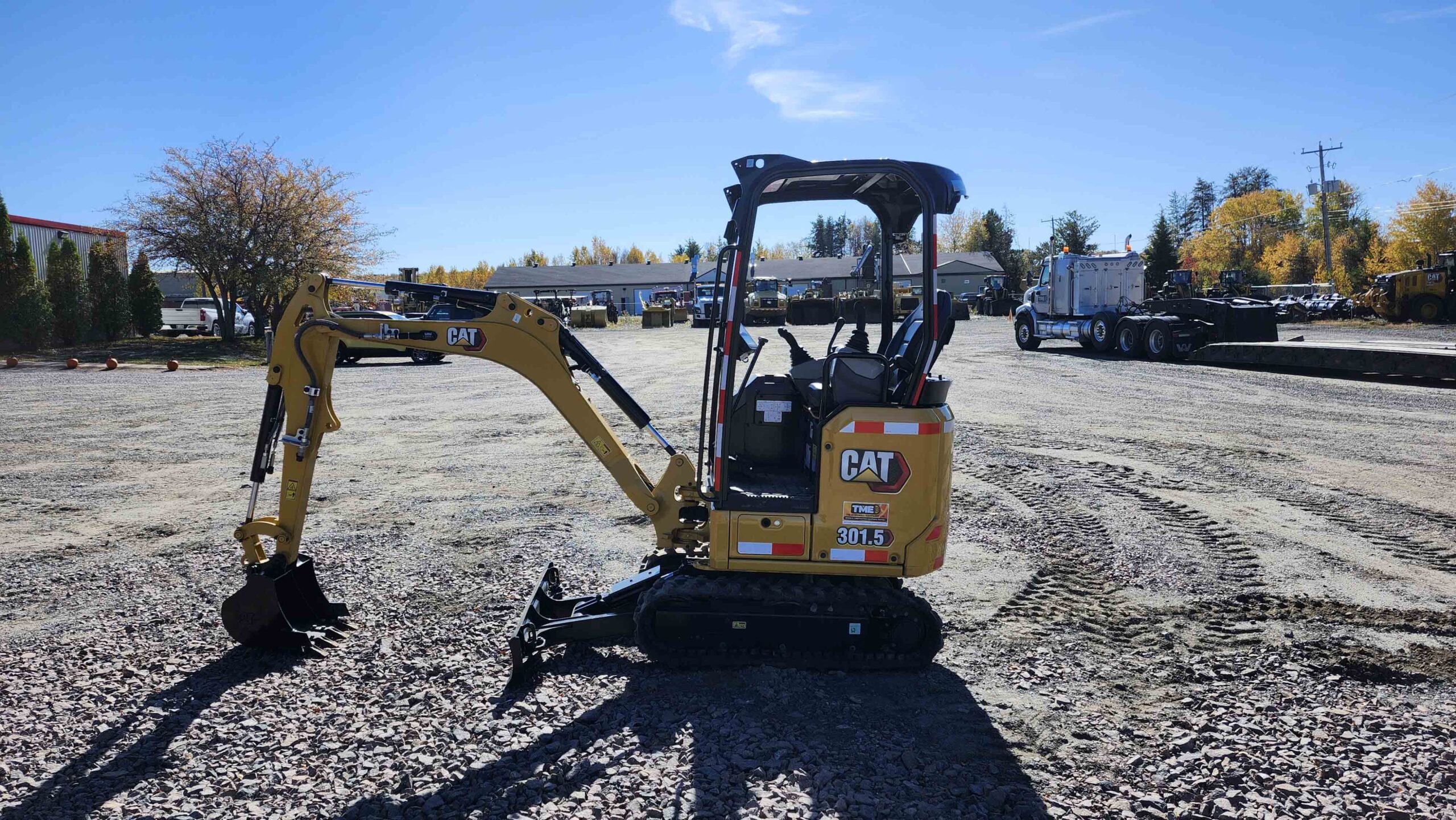

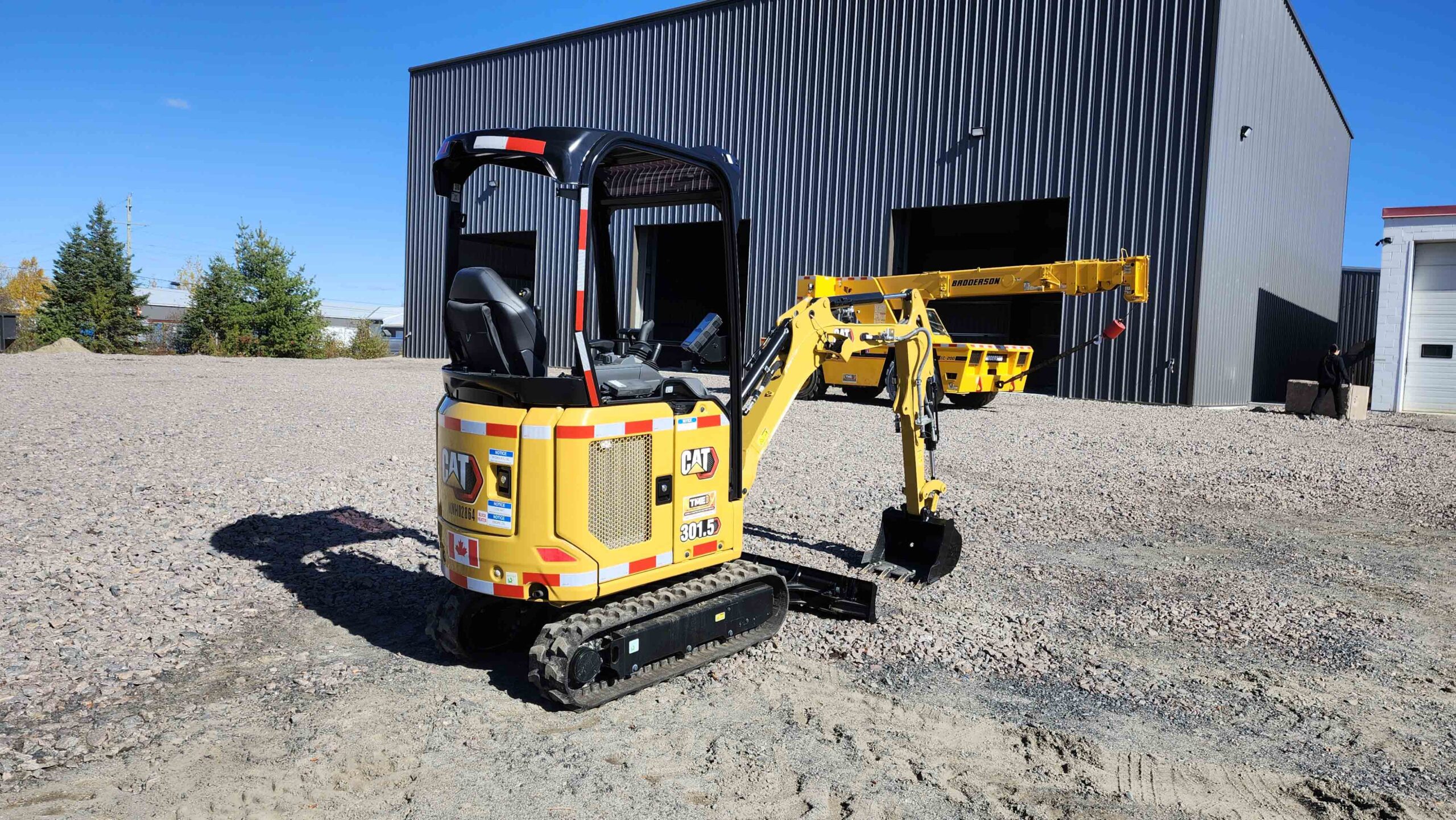

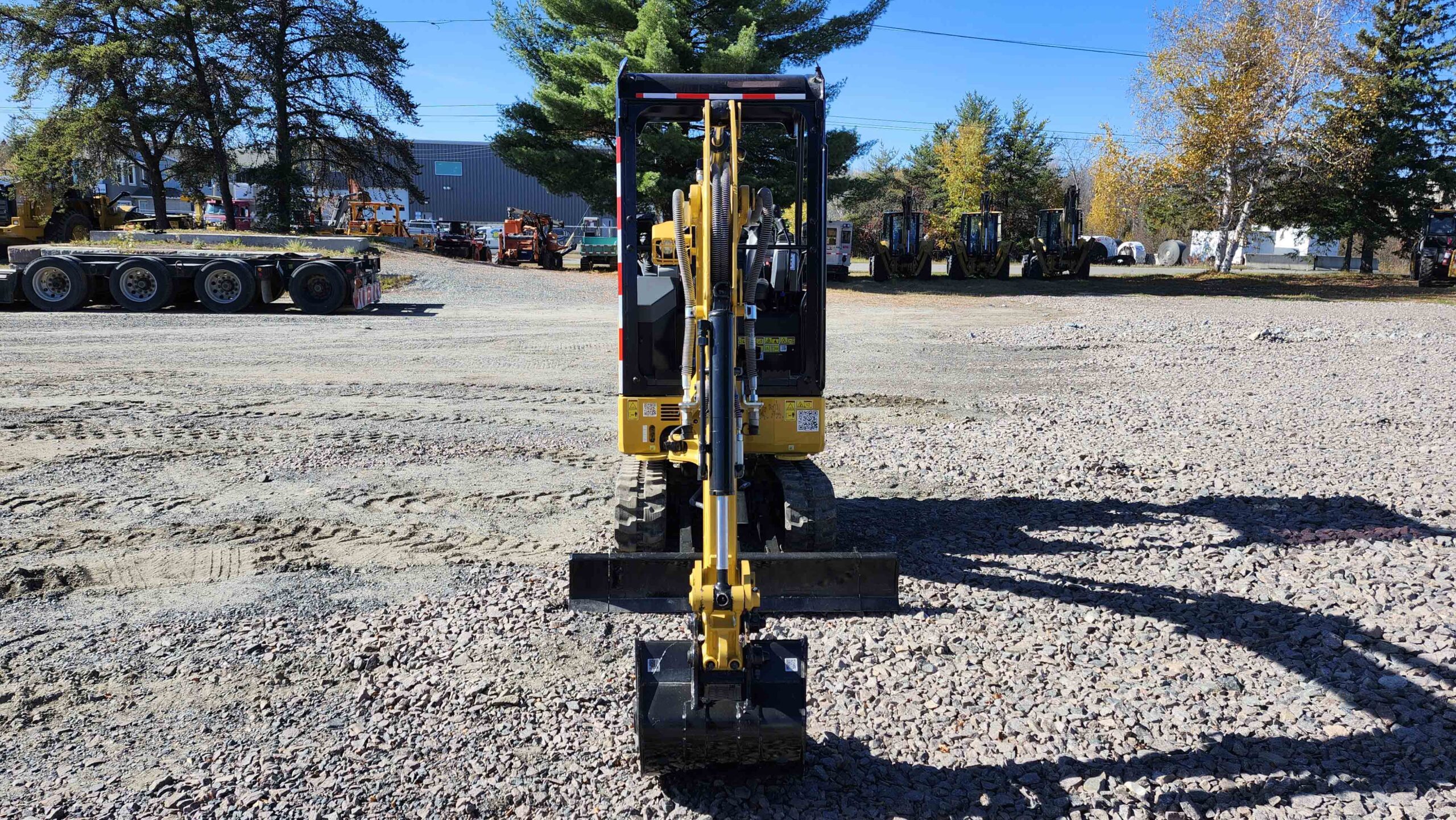

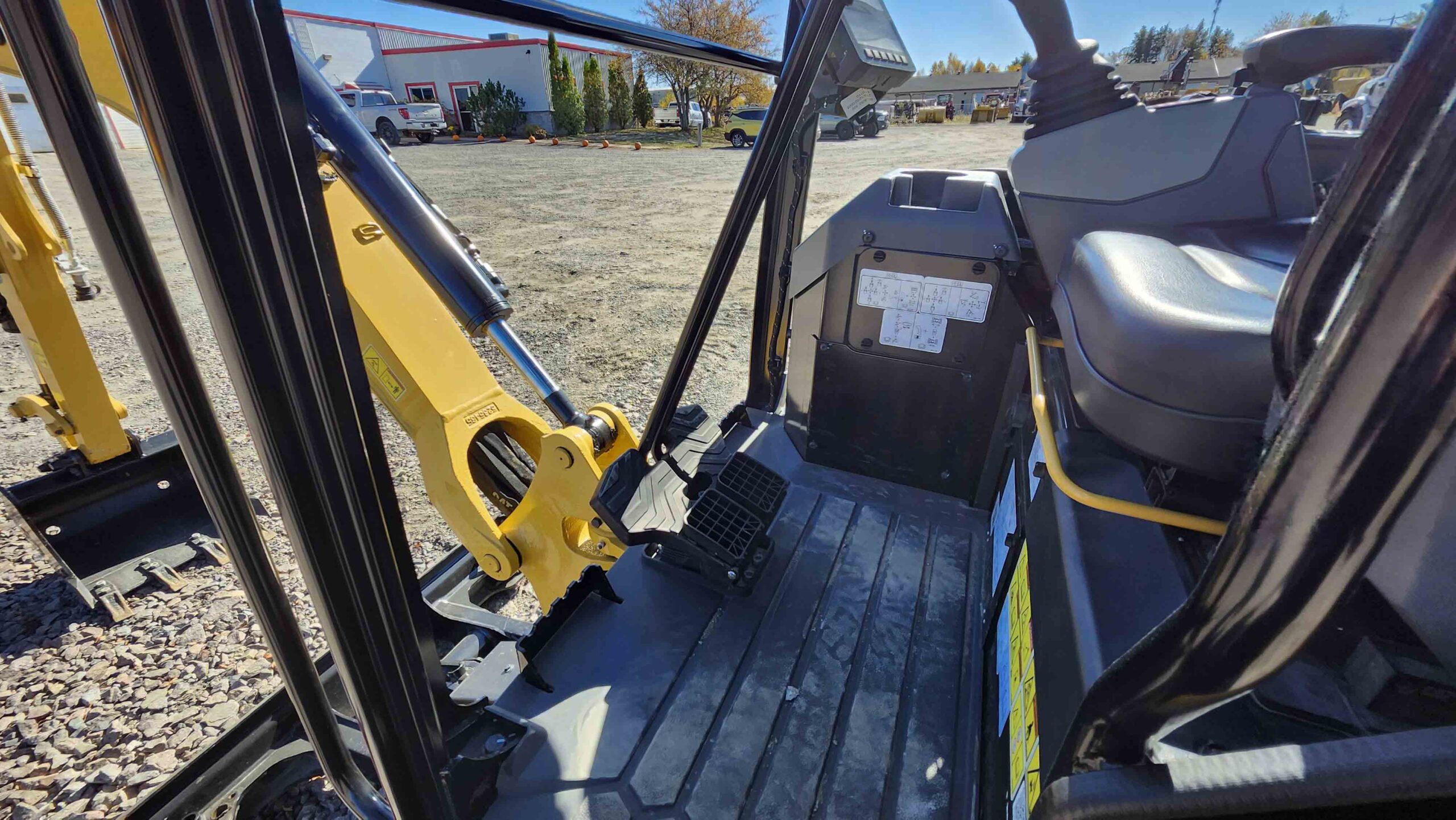

2025 CAT 301.5 Mini Excavator

available
, , , , , , , , , , , ,

2025 CAT 301.5 Mini Excavator

  • 2025 CAT 301.5 Mini Excavator
    • Stock #:  T160-22
    • Serial #: CAT03015PMNH02864
    • Approximate Hours: 0
    • Make: CAT
    • Model: 301.5
    • Year: 2025
    • Engine Model: Cat C1.1
    • Net Power: 21 hp (ISO 9249:2007 / 80/1269/EEC)
    • Gross Power: 21.6 hp (SAE J1995:2014)
    • Displacement: 69 in³
    • Rated Speed: 2,400 rpm
    • Emissions: Meets U.S. EPA Tier 4 Final and EU Stage V standards
    • Bore x Stroke: 3 in x 3.2 in
    • Operating Weight: 3,913 lb
    • Minimum Operating Weight (Canopy): 3,483 lb
    • CE Plate Weight: 3,836 lb
    • Pump Flow: 17.4 gpm
    • System Pressure (Equipment / Travel / Swing): 3,089 psi
    • Bucket Digging Force: 3,170 lbf
    • Stick Digging Force (Standard): 1,843 lbf
    • Stick Digging Force (Long): 1,616 lbf
    • Hydraulic Type: Load-sensing hydraulics with variable displacement piston pump
    • Travel Speed (High): 2.7 mph
    • Travel Speed (Low): 1.8 mph
    • Maximum Traction Force (High): 2,316 lbf
    • Maximum Traction Force (Low): 3,597 lbf
    • Ground Pressure (Minimum): 4 psi
    • Ground Pressure (Maximum): 4.4 psi
    • Gradeability: 30°

Specification Sheet

Download Sheet
