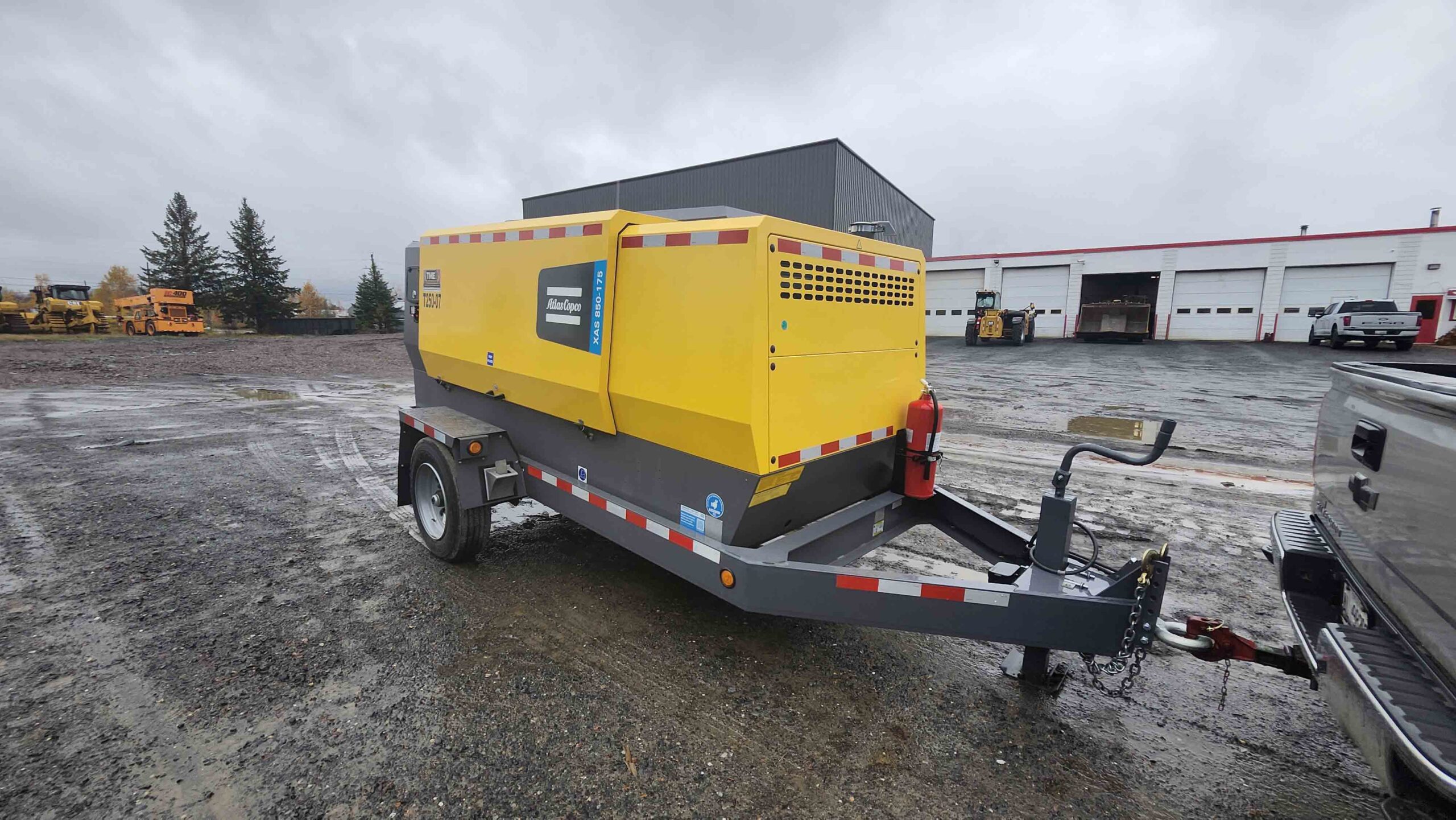

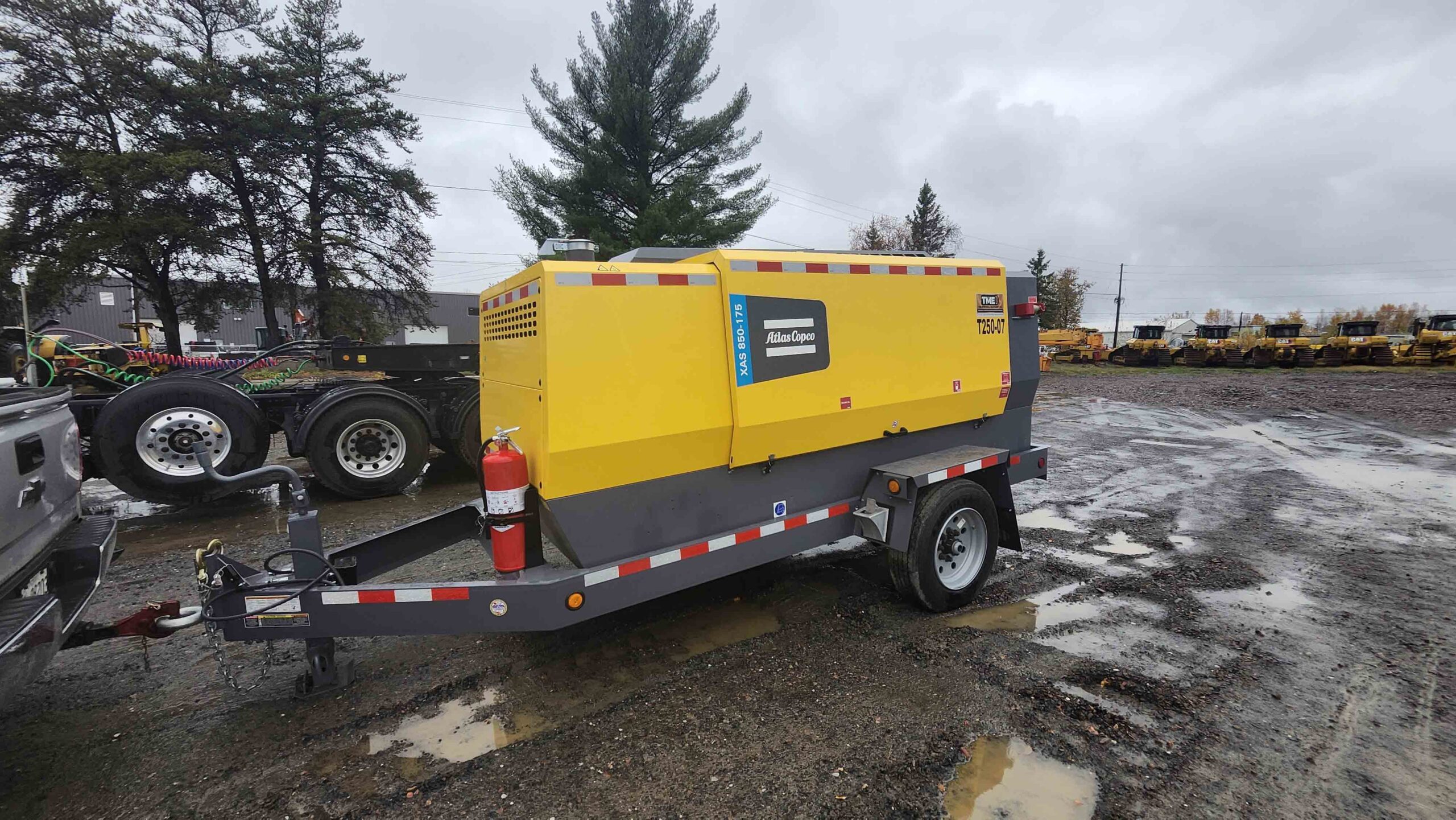

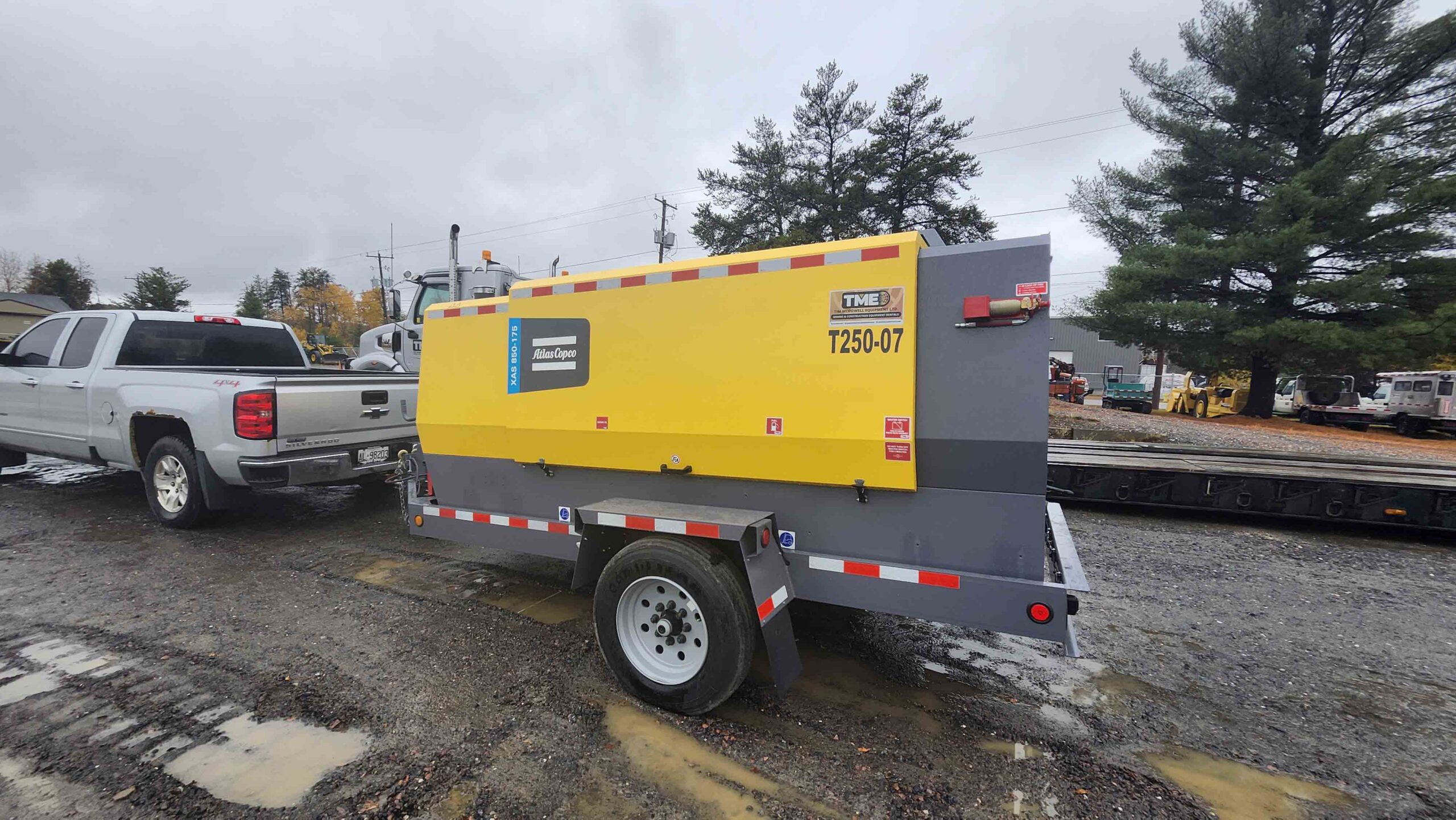

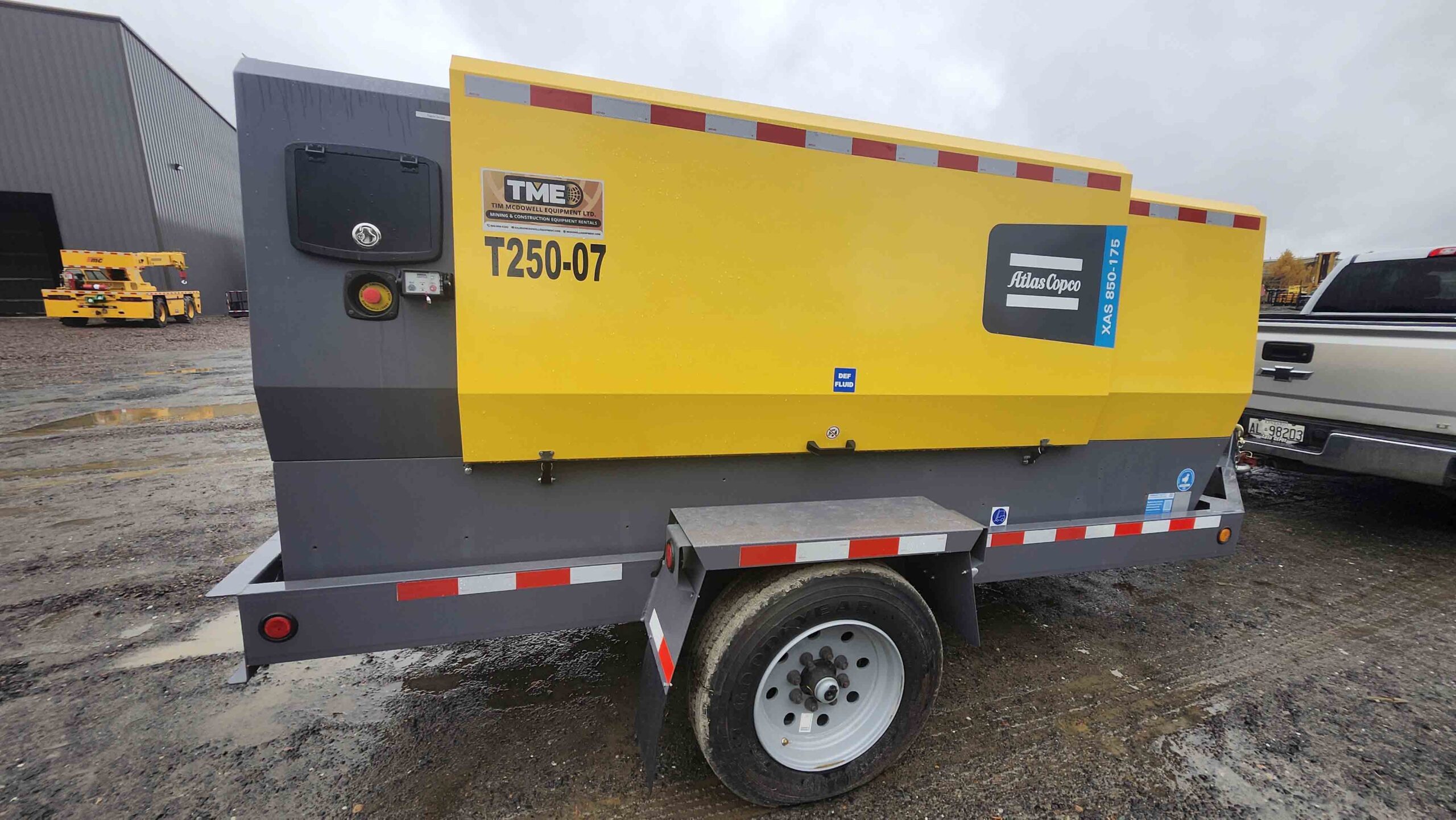

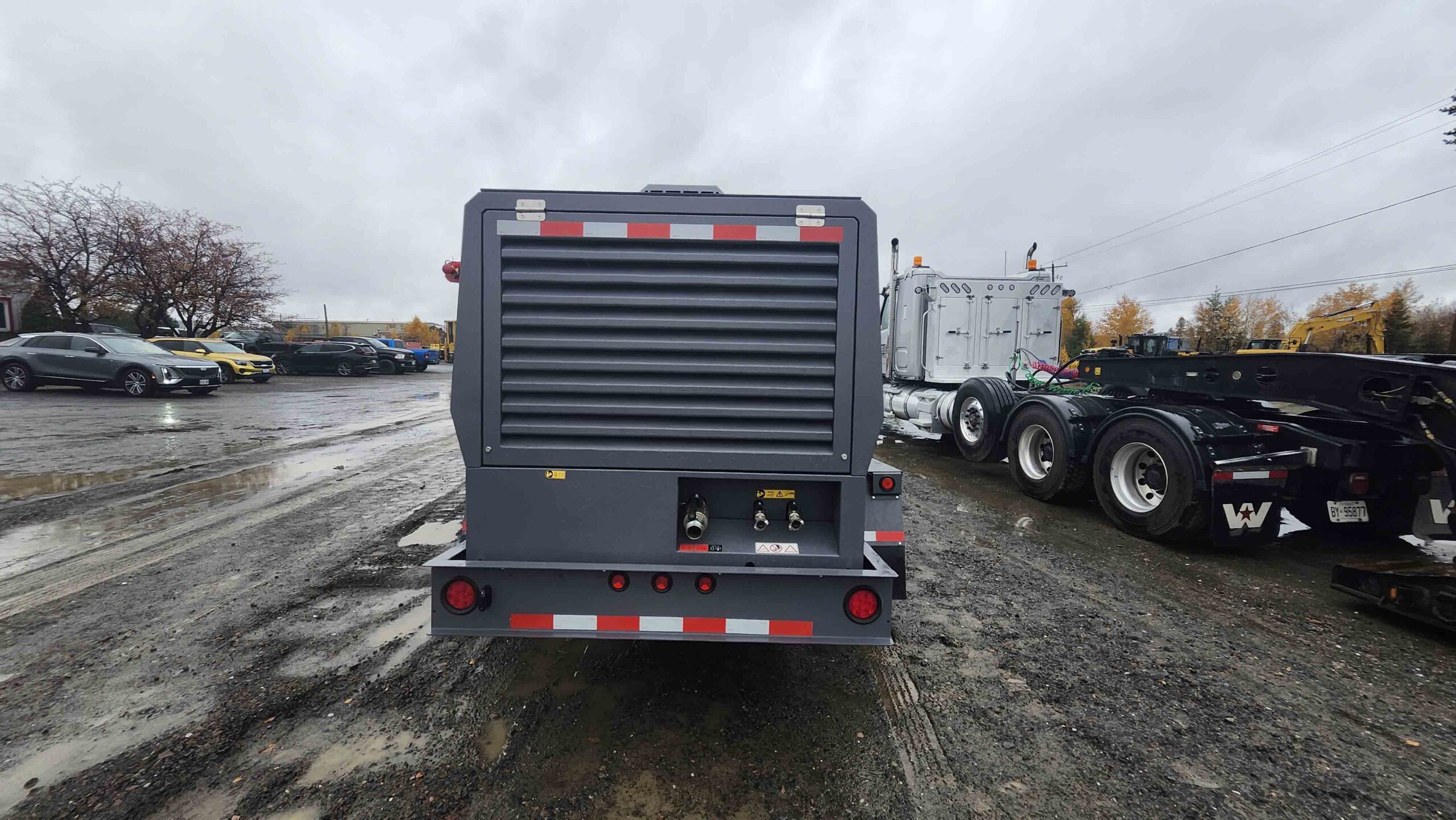

2025 Atlas Copco XAS 850-175 PACE Compressor

  • 2025 Atlas Copco XAS 850-175 PACE Compressor
    • Stock #: T250-07
    • Serial #: APP881873
    • Approximate Hours: 0
    • Make: Atlas Copco
    • Model: XAS 850-175 PACE
    • Year: 2025
    • Range: XAS boX 400–850 CFM
    • PACE: Pressure Adjusted through Cognitive Electronics
    • Engine brand: Cummins
    • Engine model: QSB6.7-C260
    • Engine cylinders: 6
    • Engine power output: 194 kW @ normal shaft speed
    • Engine full load rpm: 2000 rpm
    • Engine unload rpm: 1300 rpm
    • Fuel tank capacity: 320 L
    • Engine oil capacity: 17.8 L
    • Compressor oil capacity: 60 L
    • Cooling system capacity: 35.5 L
    • Free air delivery: 850 CFM @ 5 bar
    • Working pressure range: 5–12 bar
    • Max ambient temperature: 50°C
    • Min starting temperature: -10°C
    • Min starting temp with cold start aid: -25°C
    • Operating temperature range: -10°C to +50°C
    • Single axle configuration
    • Wagon, mounted support, skid options available
    • Jockey wheel and after-cooler available
    • Refinery kit and cold start kit options available
    • Heavy-duty air filter with safety cartridge
    • Integrated top tank to reduce leaks and avoid corrosion
    • XC2003 controller with IP65 protection
    • Additional fuel filter included
    • Metal braided hoses for safety and longevity
    • Simple vessel design for ease of service
    • FuelXpert system for fuel savings at partial load (select models)
    • Top-mounted muffler for reduced fire risk and heat load
    • Enhanced cooling system for high ambient temperatures (50°C)
    • Intuitive user operation: toggle presets and set custom pressure easily
    • Pressure adjustment increments: 0.1 bar
    • Applications: handheld tools (7 bar), abrasive blasting (8.6–10 bar), shotcrete (7–12 bar), cable blowing and drilling (12–14 bar)
    • Length (box): 3177 mm
    • Width (box): 1470 mm
    • Height (box): 1987 mm
    • Weight (box): 2500 kg
    • Length (undercarriage): 4893 mm
    • Width (undercarriage): 2010 mm
    • Height (undercarriage): 2313 mm
    • Weight (undercarriage): 2800 kg
    • Choice of mechanical or electronic engine depending on model
    • Patent-pending FuelXpert system for optimized fuel consumption
    • Designed for rugged durability and reliability in harsh conditions
    • Ease of service emphasized for high uptime and utilization

Specification Sheet
